108
Pulse I/O Board Section 2-2
Trapezoidal Pulse Output
With Same Acceleration/
Deceleration

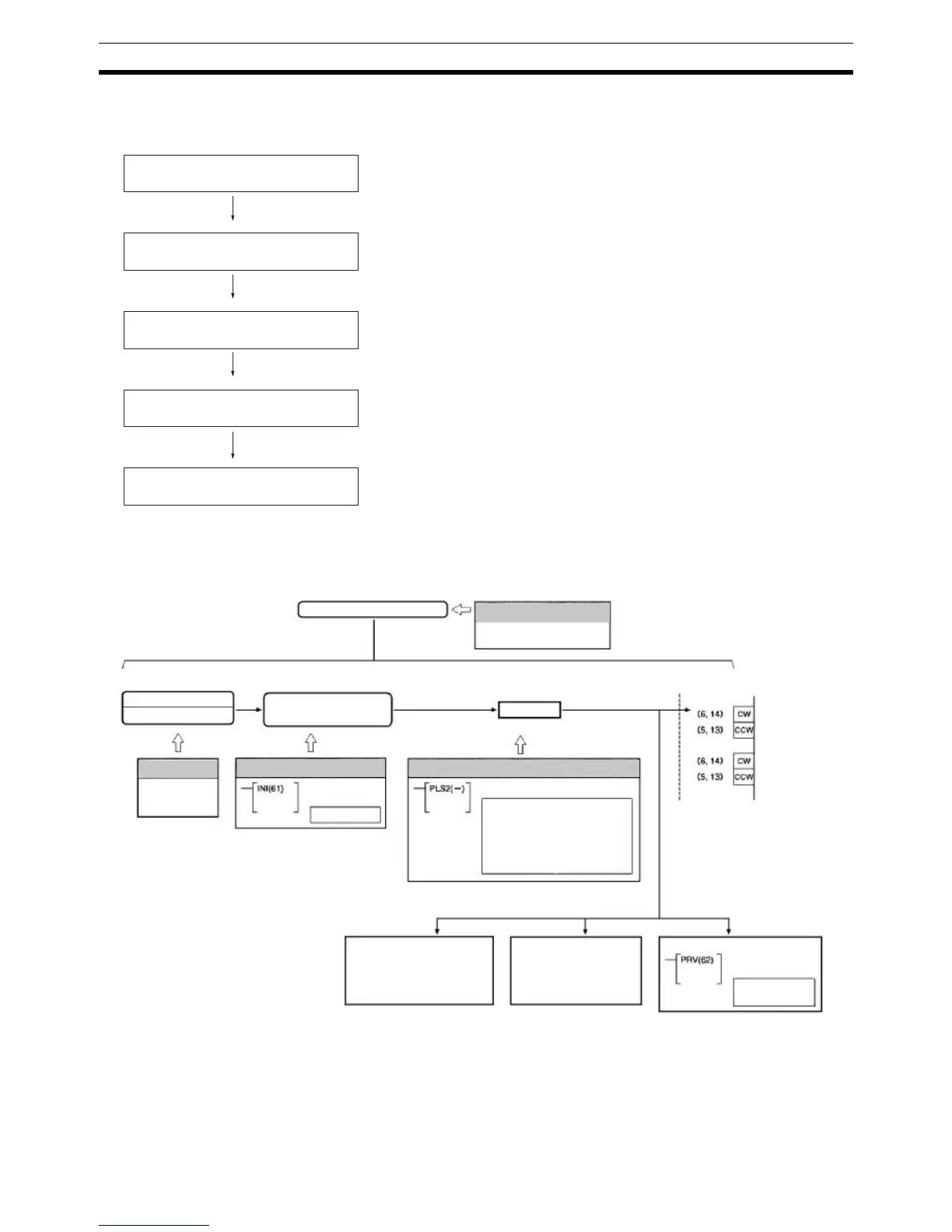

The following flowchart shows the procedure for using PLS2(––) to perform
trapezoidal pulse outputs with the same acceleration/deceleration rate.
Simple Positioning Mode
(PLS2(−−) cannot be used in High-speed Counter Mode .)
Port 1 or port 2.
Output:
CW/CCW with/without 1.6 kΩ resistance.
Power supply for output: 5 V DC/24 V DC
Port mode setting (DM 6611):
Simple Positioning Mode (DM 6611 to 0001 Hex). See Note.
Operation settings for ports 1 and 2 (DM 6643/DM 6644):
Set to fixed duty factor (0000 Hex).
(PLS2(−−) cannot be used in High-speed Counter Mode .)
PULSE OUTPUT, PLS2( −− ):
Port-specific trapezoidal acceleration/deceleration pulse output control with
same acceleration/deceleration rate.
MODE CONTROL, INI(61):
Stop pulse output to a specified port.
HIGH-SPEED COUNTER PV READ, PRV(62):
Read pulse output status of a specified port.
Determine port mode.
Determine pulse output port.
Mount Board and wire outputs.
PC Setup
(DM 6611/DM 6643/DM 6644)
Ladder Program
Fixed duty factor pulse output
Trapezoidal Acceleration/
Deceleration Pulse Outputs
PULSE OUTPUT
MODE CONTROL
Setting number of pulses (8-digit
BCD: 00000001 to 16777215)
Target: 100 Hz to 50 kHz
Acc/dec rate (separate): 4.08 ms
10 Hx to 2 kHz
Starting pulse output
Each cycle
Each execution
Pulse output status
Port 1: AR 05
Port 2: AR 06
Pulse output PV
Port 1: IR 237, IR 236
Port 2: IR 239, IR238
HIGH-SPEED
COUNTER PV
READ
Output status read
Pulse I/O Board
− Pulse output
− Port 1 (CN1)
− Pulse output
− Port 2 (CN2)
Port Mode Setting
Simple Positioning Mode
Stopping output
Output
Each cycle
Trapezoidal Acceleration/Deceleration Pulse Outputs
PC Setup
Bits 12 to 15 of
DM 6643/DM 6644 set to 0.
Ladder Program
Ladder Program
PC Setup
Bits 00 to 15
of DM 6611
