Auto Focus Multi Code Reader V430-series User’s Manual (Z392) A-7

Appendices

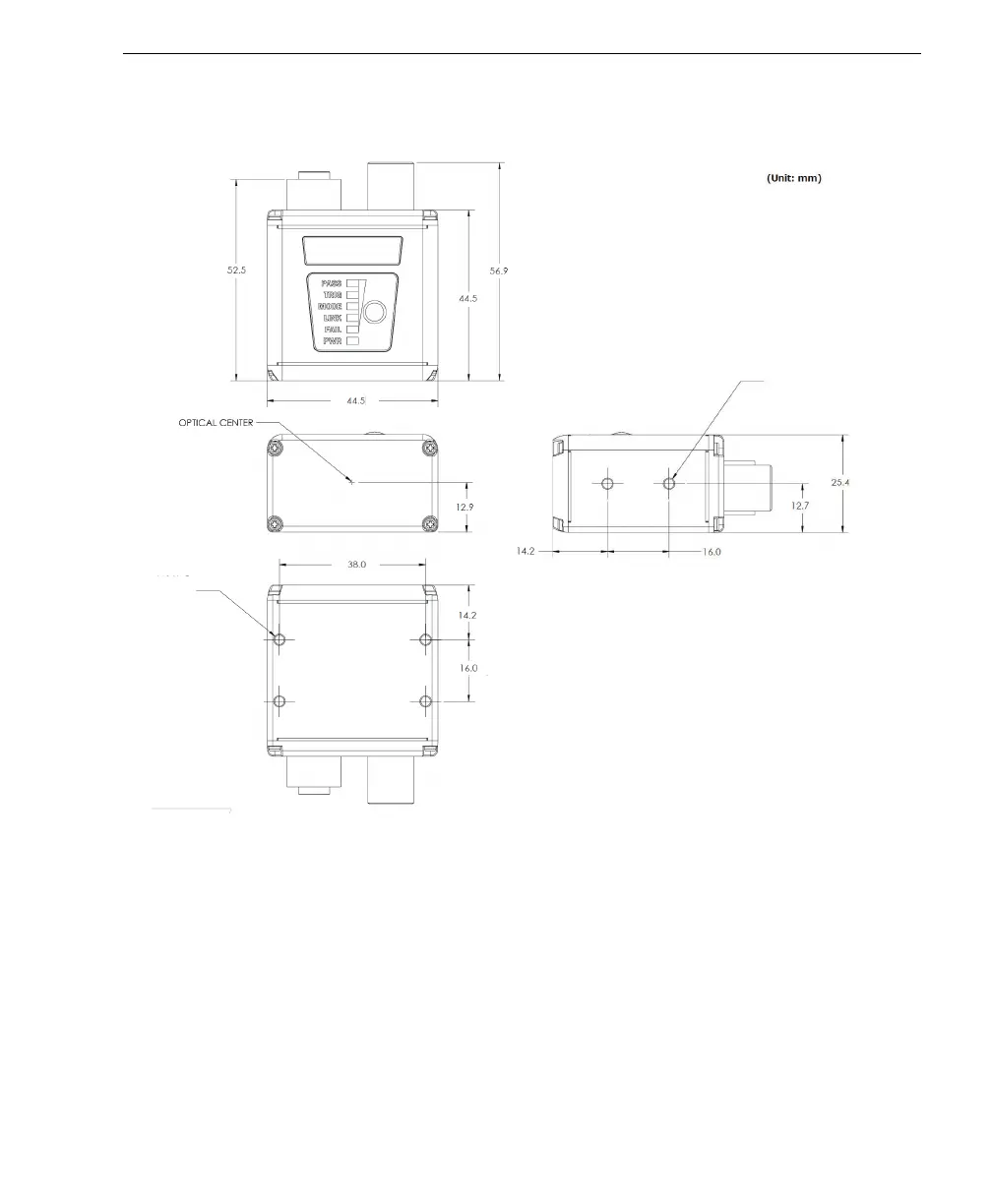

Dimensions

Code Reader V430-F

2-M3×5DP

4-M3×5DP
