A-6 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
General Specifications
V430-Fâ–¡â–¡â–¡M03M
WVGA High Density, Middle View
Read range specifications are subject to change.
*
V430-F000W50C: WD = 50 mm, Field of view = 51
× 37 mm
V430-F000M50C: WD = 50 mm, Field of view = 35.5
× 25 mm
V430-F000W12M: WD = 50 mm, Field of view = 57.2
× 42.9 mm
V430-F000M12M: WD = 50 mm, Field of view = 36.5
× 27.4 mm
V430-F000N12M: WD = 40 mm, Field of view = 10
× 7.5 mm
The minimum size is what could be read in ideal conditions.

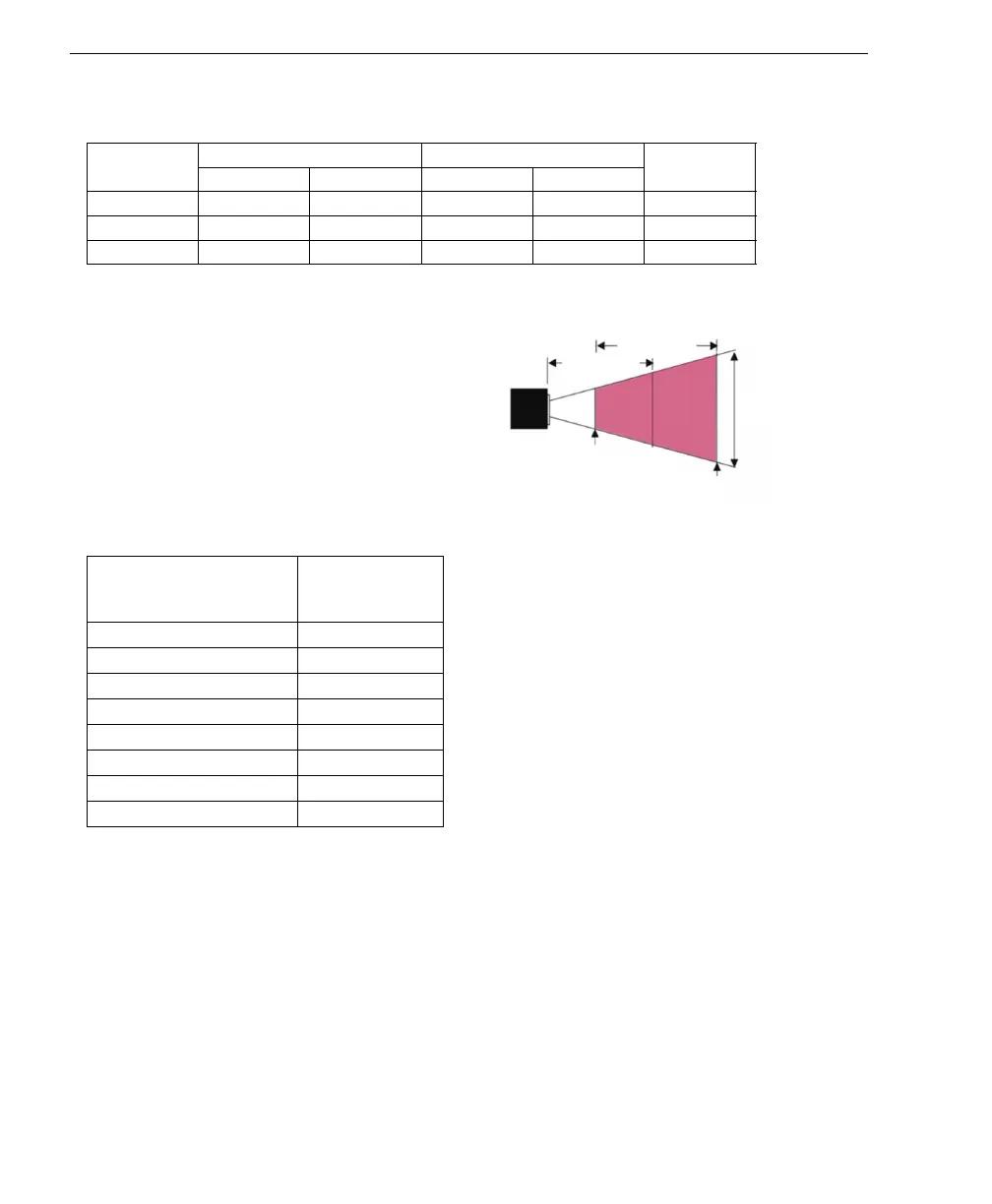

Focal Distance
(mm)
Field of View (mm) Read Ranges (mm)
Typical 2D Ele-
ment Size (mm)
Horizontal Vertical Inside Outside
50 35 21.5 43 58 0.19
81 49 33 65 97 0.26
102 65 41 83 121 0.26
Model
Minimum 2D Element
Size (mm)*
V430-F000W50C 0.09
V430-F000M50C 0.09
V430-F000W12M 0.13
V430-F000M12M 0.09
V430-F000N12M 0.05
V430-F050M03M 0.13
V430-F081M03M 0.19
V430-F102M03M 0.26
Field of View
Maximum Depth of Field
(Outside)
Maximum Depth of Field
(Inside)
Read Range
Focal Distance
