Auto Focus Multi Code Reader V430-series User’s Manual (Z392) A-13
Appendices

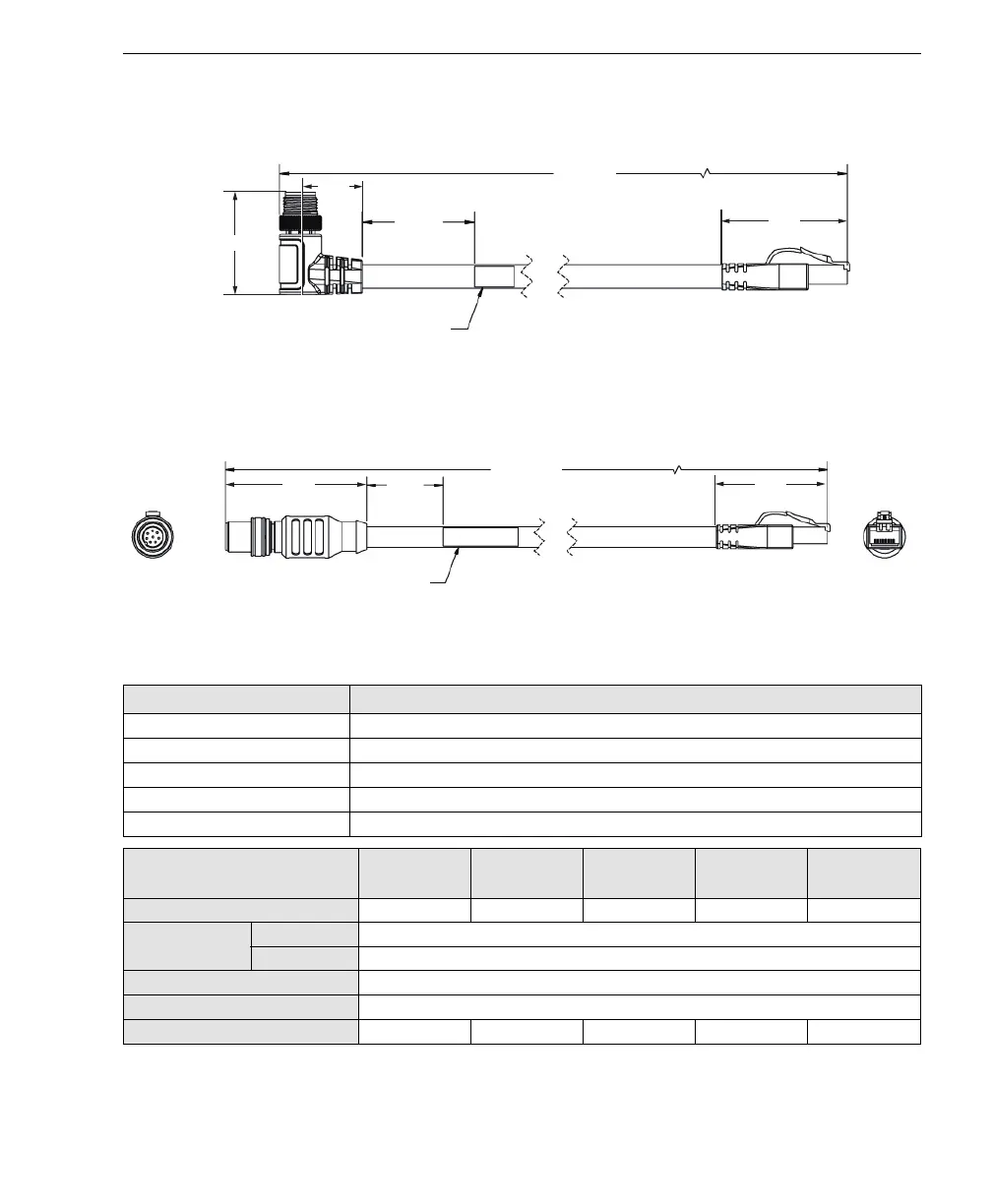

Cordset, M12 8-Pin Plug to RJ45 Ethernet, Right Angle Up, 3M
V430-WELU-3M (Unit: [mm])
Cordset, M12 8-Pin Plug to RJ45 Ethernet, 5M
V430-WE-5M (Unit: [mm])
I/O Cables (sold separately)
Important: Do not bend any Cable beyond the specified minimum bending radius. Doing
so may damage the Cable.
Part Numbers Description
V430-W8-3M Cordset, M12 12-Pin Socket to Flying Leads, 3M
V430-W8LD-3M Cordset, M12 12-Pin Socket to Flying Leads, Right Angle Down, 3M
V430-W8LU-3M Cordset, M12 12-Pin Socket to Flying Leads, Right Angle Up, 3M
V430-W8-5M Cordset, M12 12-Pin Socket to Flying Leads, 5M
V430-W2-3M Cordset, M12 12-Pin Socket to DB9 Socket with M12 12-Pin Plug
Item Model
V430-W8-
3M
V430-
W8LD-3M
V430-W8-
LU-3M
V430-W8-
5M
V430-W2-
3M
Cable length
3m 3m 3m 5m 3m
Wire gauge
Power line
AWG24
Other lines
AWG24
Cable diameter
φ7.11
Minimum bending radius
53.3mm
Weight
270g 260g 260g 430g 285g
35.4
21.5
43.5
3000
63
cable label
Code Reader attachment connector
(M12 8-pin plug)
55.2
43.5
63
5000
cable label
Code Reader attachment connector
(M12 8-pin plug)
