A-14 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
General Specifications

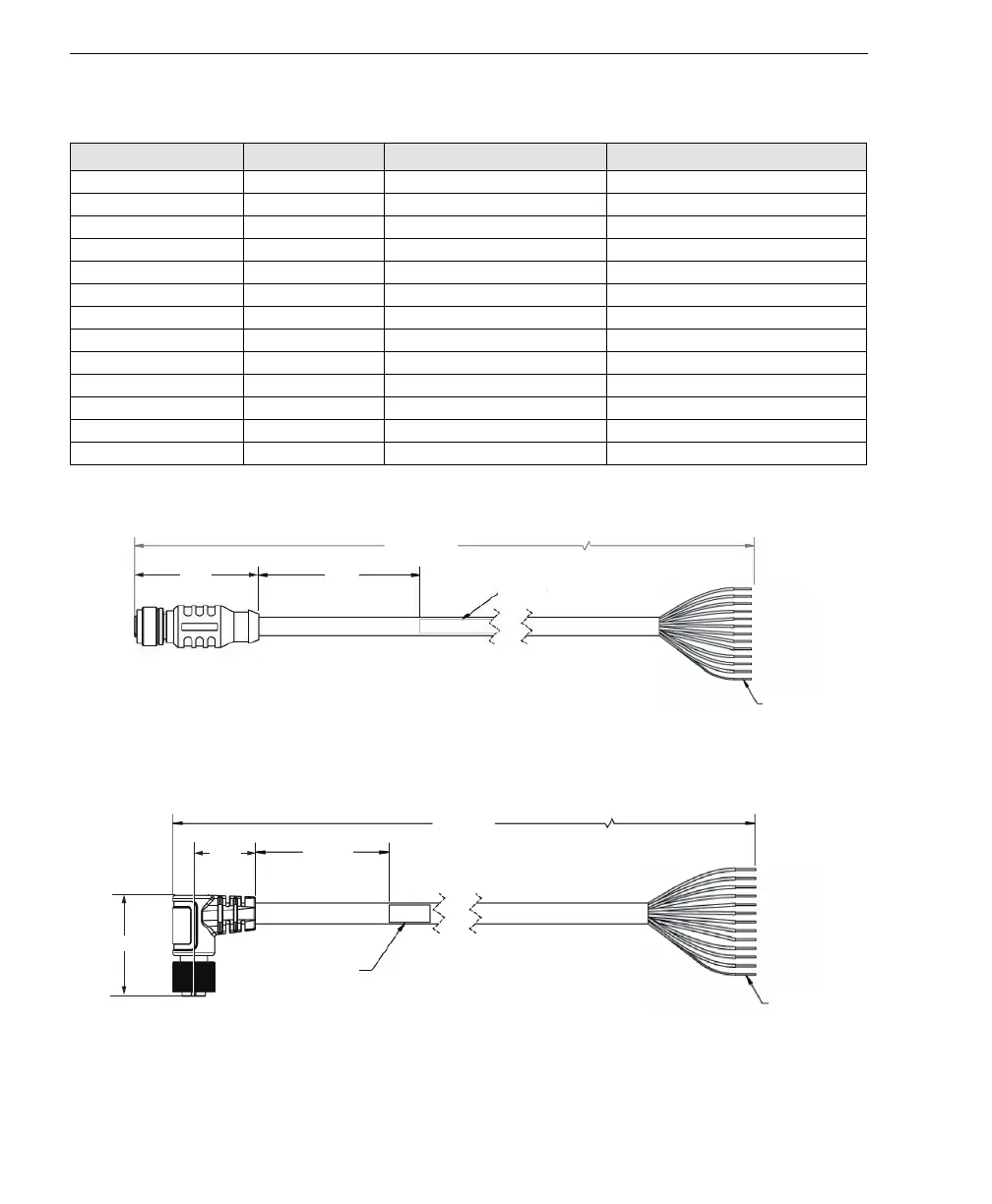

Wiring table of V430-W8
Cordset
, M12 12-Pin Socket to Flying Leads, 3M
V430-W8-3M (Unit: [mm])
Cordset, M12 12-Pin Socket to Flying Leads, Right Angle Down, 3M
V430-W8LD-3M (Unit: [mm])
Wire color Pin No. Signal name Function
Brown 2 24V Power
Blue 7 0V Ground
Red 8 COM_IN Input Common
Red/Blue 12 COM_OUT Output Common
White 1 TRIG Trigger
Black 9 HOST_RxD RS-232(Host) RxD
Purple 10 HOST_TxD RS-232(Host) TxD
Gray 5 OUTPUT1 Output 1
Gray/Pink 11 OUTPUT2 Output 2
Pink 6 OUTPUT3 Output 3
Green 3 DEFAULT Default
Yellow 4 NEW MASTER New Master
None - - Shield
63
3000
cable label
Code Reader attachment connector
(M12 12-pin socket)
SHIELD
48.5
SHIELD
63
3000
cable label
Code Reader attachment connector
(M12 12-pin socket)
21.5
35.3
