Appendices

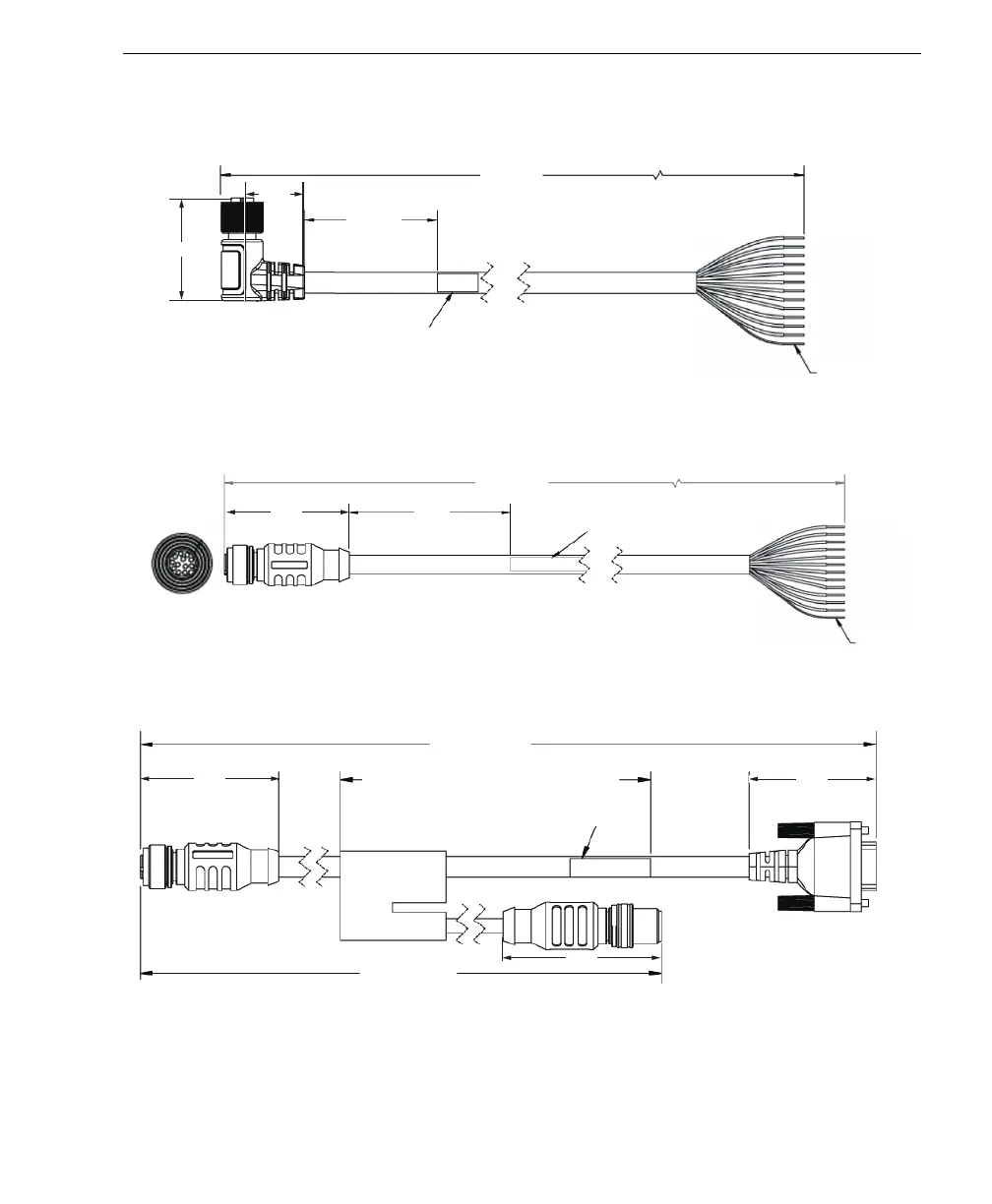

Cordset, M12 12-Pin Socket to Flying Leads, Right Angle Up, 3M
V430-W8LU-3M (Unit: [mm])
Cordset, M12 12-Pin Socket to Flying Leads, 5M
V430-W8-5M (Unit: [mm])
Cordset, M12 12-Pin Socket to DB9 Socket with M12 12-Pin Plug
V430-W2-3M (Unit: [mm])
Please connect V430-W8 to I/O connector (M12 12-pin plug) and connect to a power supply.
SHIELD
21.5
35.3
3000
63
cable label
Code Reader attachment connector
(M12 12-pin socket)
5000
63
cable label
Code Reader attachment connector
(M12 12-pin socket)
SHIELD
48.5
48.3
44.5
2700
100
300
63
RS232C
(D-Sub 9-pin socket)
cable label
Code Reader attachment
connector
(M12 12-pin socket)
I/O connector
(M12 12-pin plug)
48.4
