A-16 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
General Specifications

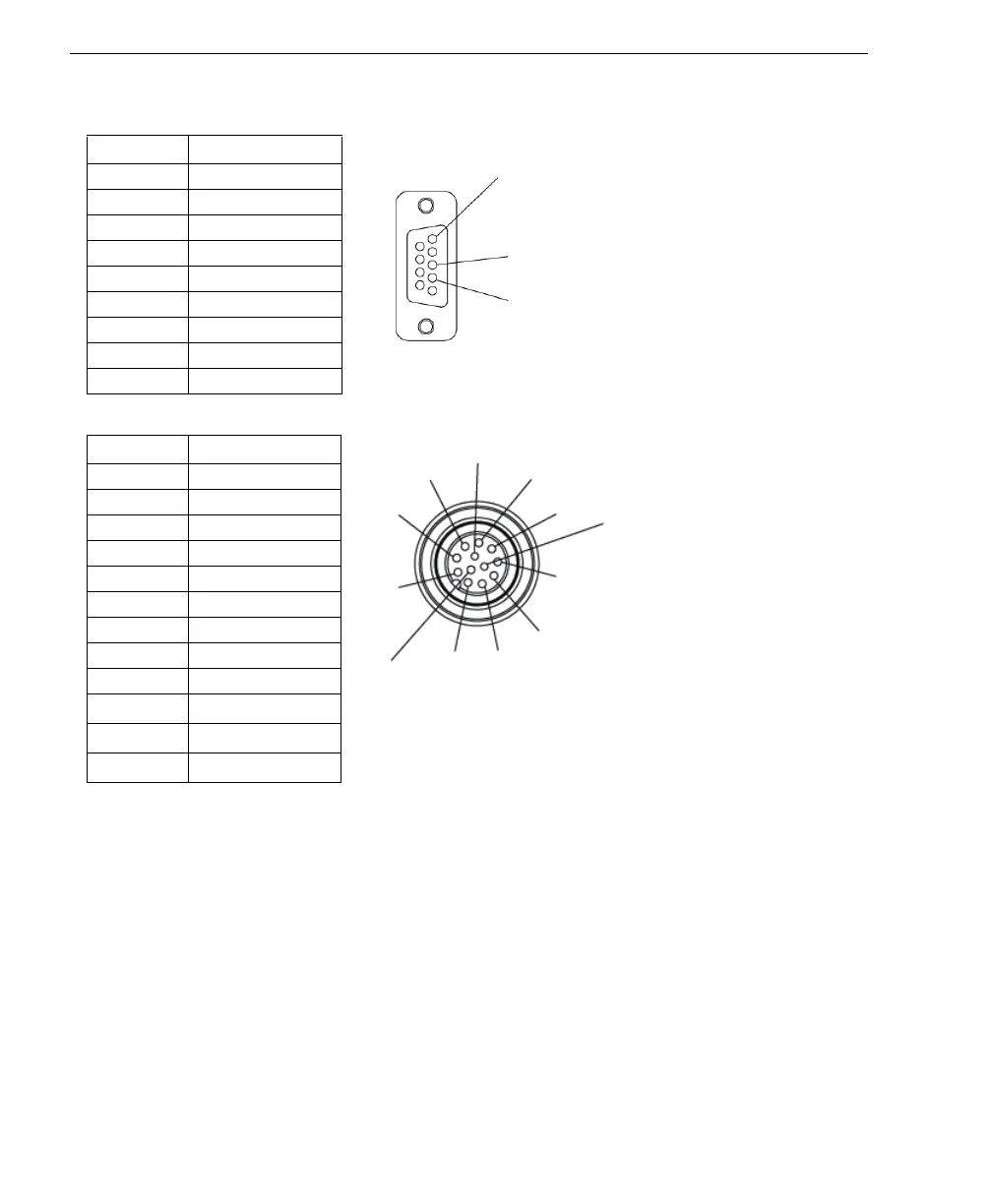

RS-232C (D-sub 9-pin socket)
I/O connector (M12 12-pin plug)
Note:
• Pin numbers vary depending on the external device type or cable to be connected.
Check the instruction manual of the external device.
• Turn OFF the power supply before connecting or disconnecting a Cable. Peripheral
devices may be damaged if the cable is connected or disconnected with the power ON.
• Use a slotted screwdriver when fixing screws of the D-Sub connector are hard to loosen.
Pin No. Signal name
1-
2HOST_RxD
3HOST_TxD
4-
50V
6-
7-
8-
9-
Pin No. Signal name
1TRIG
224V
3DEFAULT
4 NEW MASTER
5OUTPUT1
6OUTPUT3
70V
8COM_IN
9-
10 -
11 OUTPUT2
12 COM_OUT
5
3
2
1
2
3
4
5
11
6
7
12
8
9
10
