A-18 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
General Specifications
Right Angle Mirror
V430-AF3 (Unit: [mm])
Right Angle Mirror allows the reader to fit compact spaces.
Reverses the image.

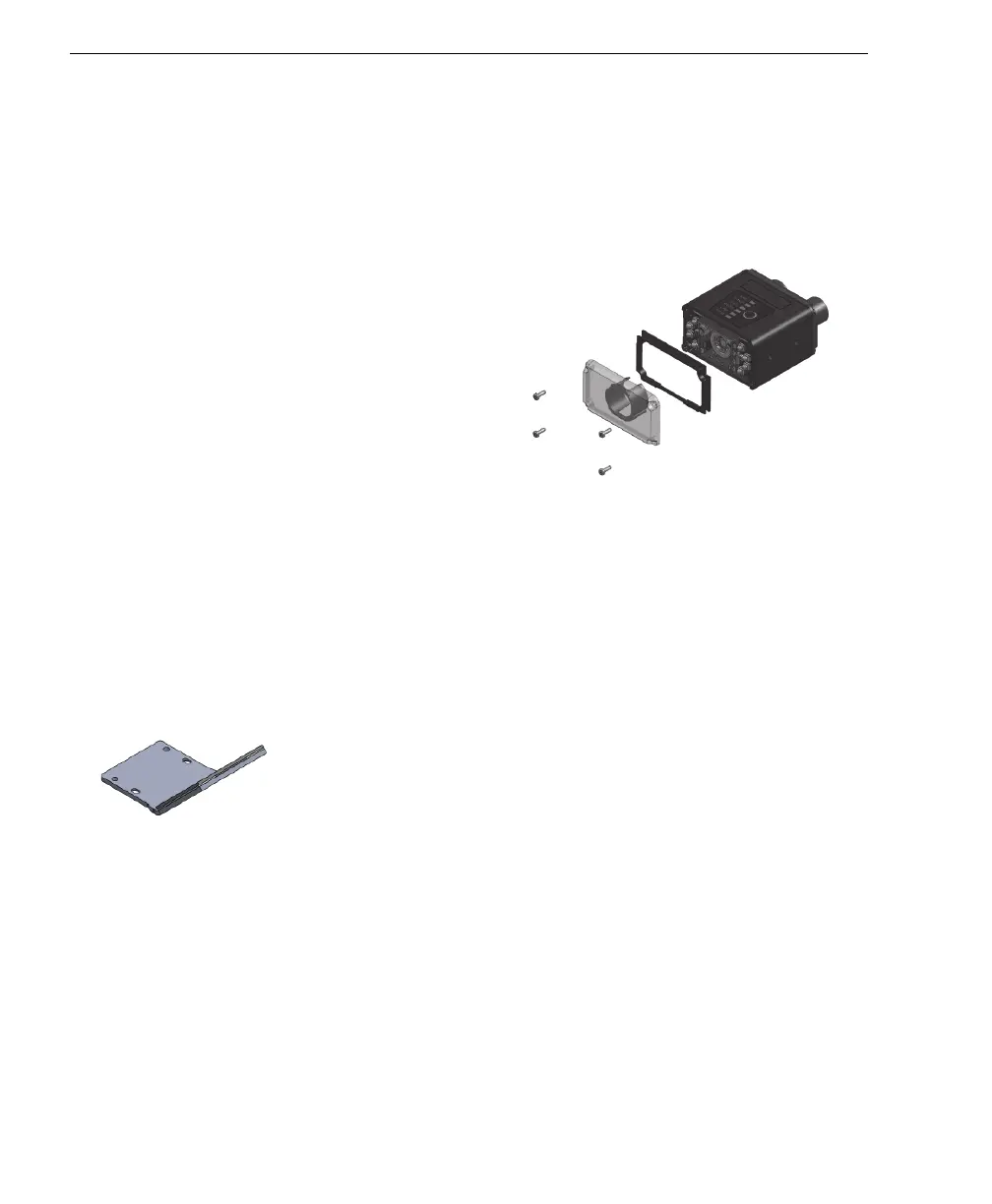

How to install the V430-AF0/AF1/AF2
1 Disconnect power from the reader.
2. Remove the four screws from the front
window of the reader.
3. Remove the front window and gasket.
4. Install the gasket onto the reader.
Ensure that the gasket is properly seated
in place and is covering all sealing sur-
faces.
5. Install the window: V430-AF0 (or window
accessory: V430-AF1/AF2) onto the
reader.
6. Secure the window in place using the
screws provided. Do not over-tighten the
screws.
(1.0 in./lbs. (0.11 nm max.)
Bracket(1) (Material: Aluminum)
Mirror(1)
Double sided tape (2)
To Next Page
