A-20 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
General Specifications
Mounting Bracket (sold separately)

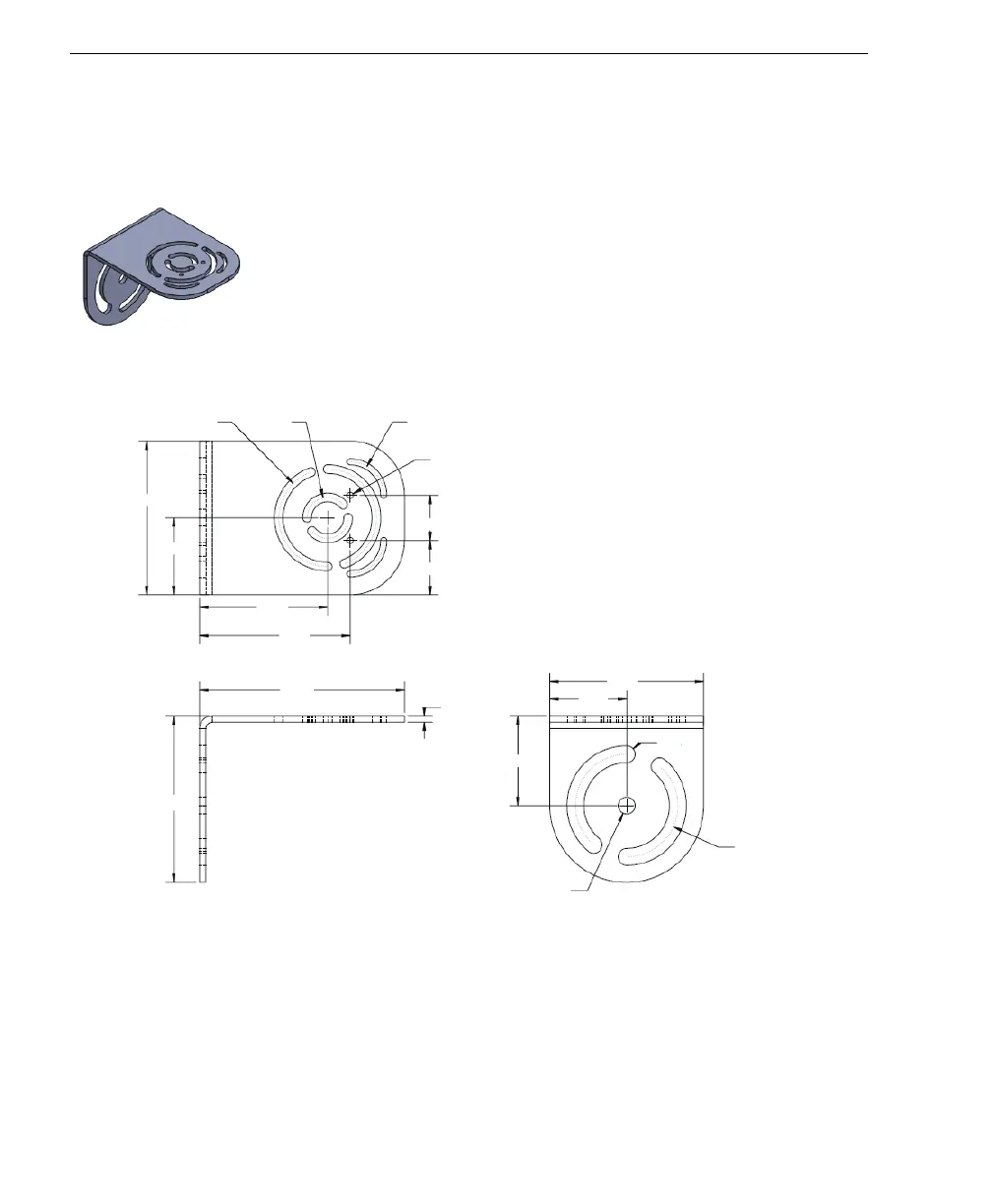

L Bracket
(It's possible to adjust the angle.)
V430-AM0 (Unit: [mm])
Material: SUS304
Thickness: 2.5mm
Accessories: Phillips-HeadScrews(M3×6)(2)
Washer(2)
R19.0 R8.0
R13.0 (2X)
ø2.4 (2X)
17.7
21.2
60.0
30.0
50.0
58.8
80.0
65.0
2.5
60.0
30.0
35.0
ø6.6
R20.0
R3.3
