A-22 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
General Specifications

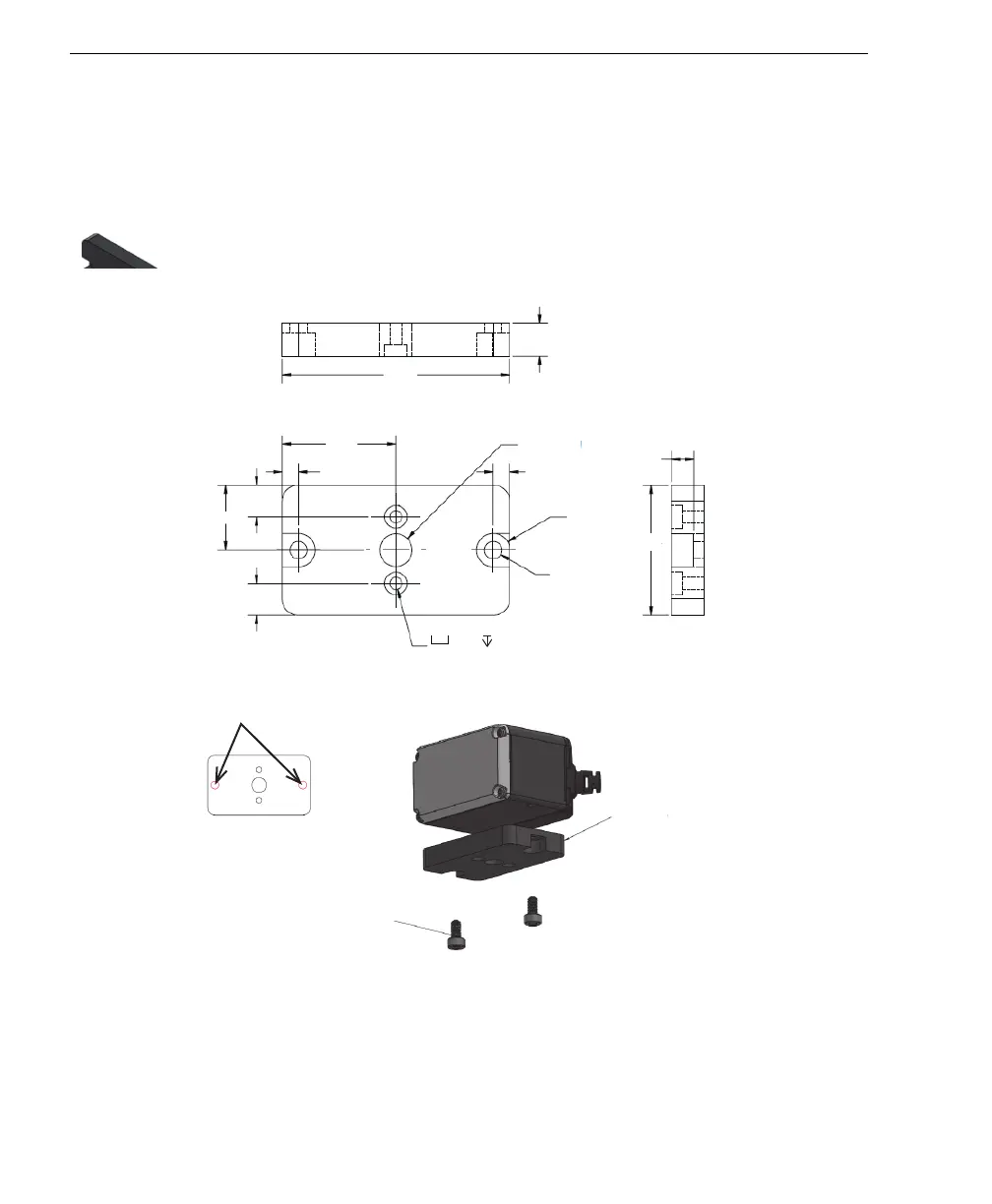

Mounting Block
V430-AM1 (Unit: [mm])
Note:
Mounting the V430-F requires the use of the front set of mounting holes, closest to the window.
Material: Aluminum alloy
Thickness: 6.4mm
Accessories: Cap Screws(M3×6)(2)
6.4
4.4
1/4-20 THRU
3.2
ø6.5 (2X)
ø3.4 (2X)
44.5
22.2
3.2
6.2
6.2
12.7
ø2.4 THRU
ø4.4 2.2
(2X)
25.4
Mounting holes
Cap screw
M3x6
Mounting bracket
