Manual Version e1-4.3.0.ae-R3. Page

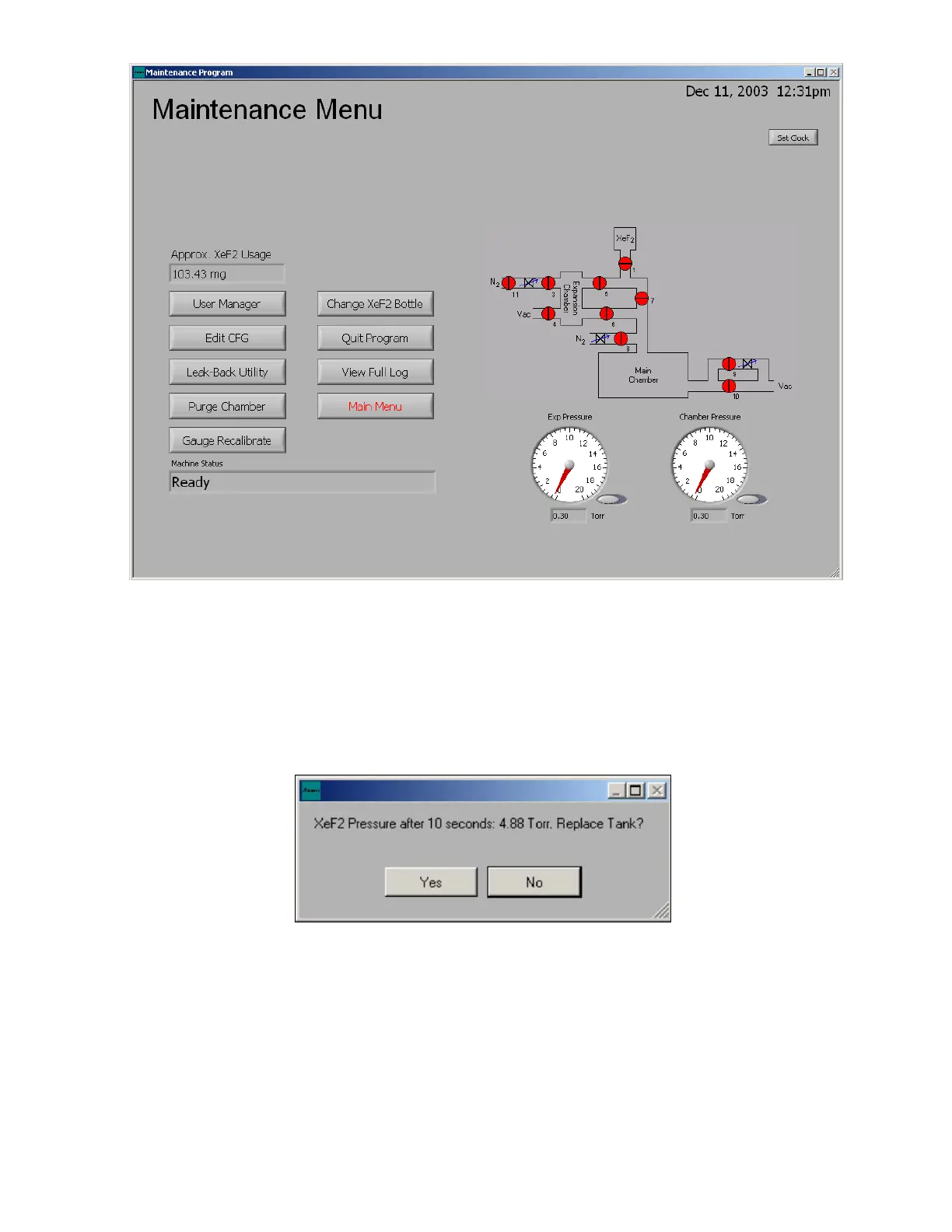

Figure 39. Maintenence menu.
The e1 Series will automatically test the pressure of the bottle. This provides a test method to qualify
XeF
2
pressure at any point in time as shown below.
Please note that the 2 Torr value used below is an illustration and your organization may decide to
choose another pressure value to make the bottle change determination.
For example, if the pressure displayed is above approximately 2 Torr, click NO and you will be returned
to the maintenance menu. If the pressure is below approximately 2 Torr, click YES, and the bottle
change will continue.
If you have chosen to change the XeF
2
bottle, you will be instructed to close the manual valve on the
bottle. Once you have closed the bottle valve, click OK as shown below.
