ORKEL MP2000-X - Plastic Tying Unit; Principle of Operation; Brake and Feed Speed

When the chamber pressure sensor registers a pressure of 135 bar (75 % of 180 bar) , the elevator speed
is reduced. The elevator will maintain the low speed until a chamber pressure of 180 bar is reached. Then
the plastic tying starts automatically.
IMPORTANT: The chamber pressure must never exceed 280 bar!
3.6 PLASTIC TYING UNIT
3.6.1 Principle of operation
Laying net or film on the bale in the chamber is done by the plastic tying unit on the top of the machine.
When set maximum chamber pressure is reached, a set amount of net/film is fed into the chamber by the
feed rollers in the plastic tying unit. When the “tail” is long enough, it is grabbed by the bale and pulled. The
feed rollers stop and open, so that the net/film spreads on the bale. The feed rollers allow the net/film to
spread over the whole width of the bale. The brake engages and puts tension on the net/film. The bale is
now laid with a predefined number of layers of net/film. Afterwards, the feed rollers close again and the
net/film is cut by the knife. Finally, the chamber door opens and the bale is transported to the wrapper by
the sub conveyor. The chamber closes again and the baling resumes while the wrapper starts.
When loading the system with a new roller of net/film, shut down the machine and thread the net/film as
shown on the illustration below. In order to ease the handling of the net/film, the brake should be released.
The brake automatically disengages when opening the rollers. If this for some reason doesn't happen, this
may be done from the display unit (section 6.1.6 "Manual controls") or the remote control (section 3.6.4
"Remote control") on the platform.

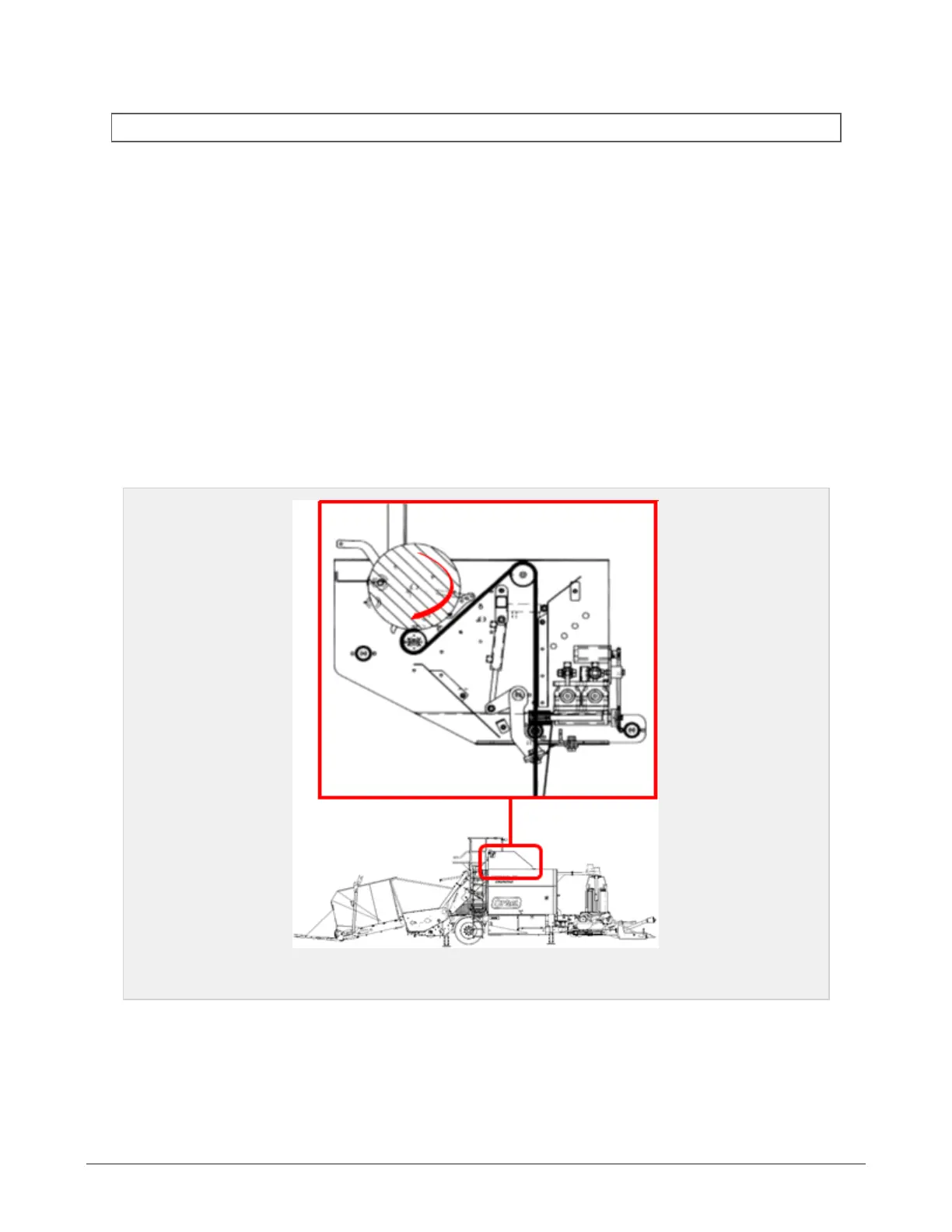

Figure 3.3 : Plastic tying unit
3.6.2 Brake and feed speed
The speed should be set so that the net/film is fed at a slightly higher speed than the bale’s peripheral
speed. Depending on whether net or film is used, and what material is being baled, the brake force must be
set accordingly. In general, it is desirable to keep the brake force as high as possible in order to maintain a
3 SETTINGS AND HYDRAULIC ADJUSTMENTS 26
