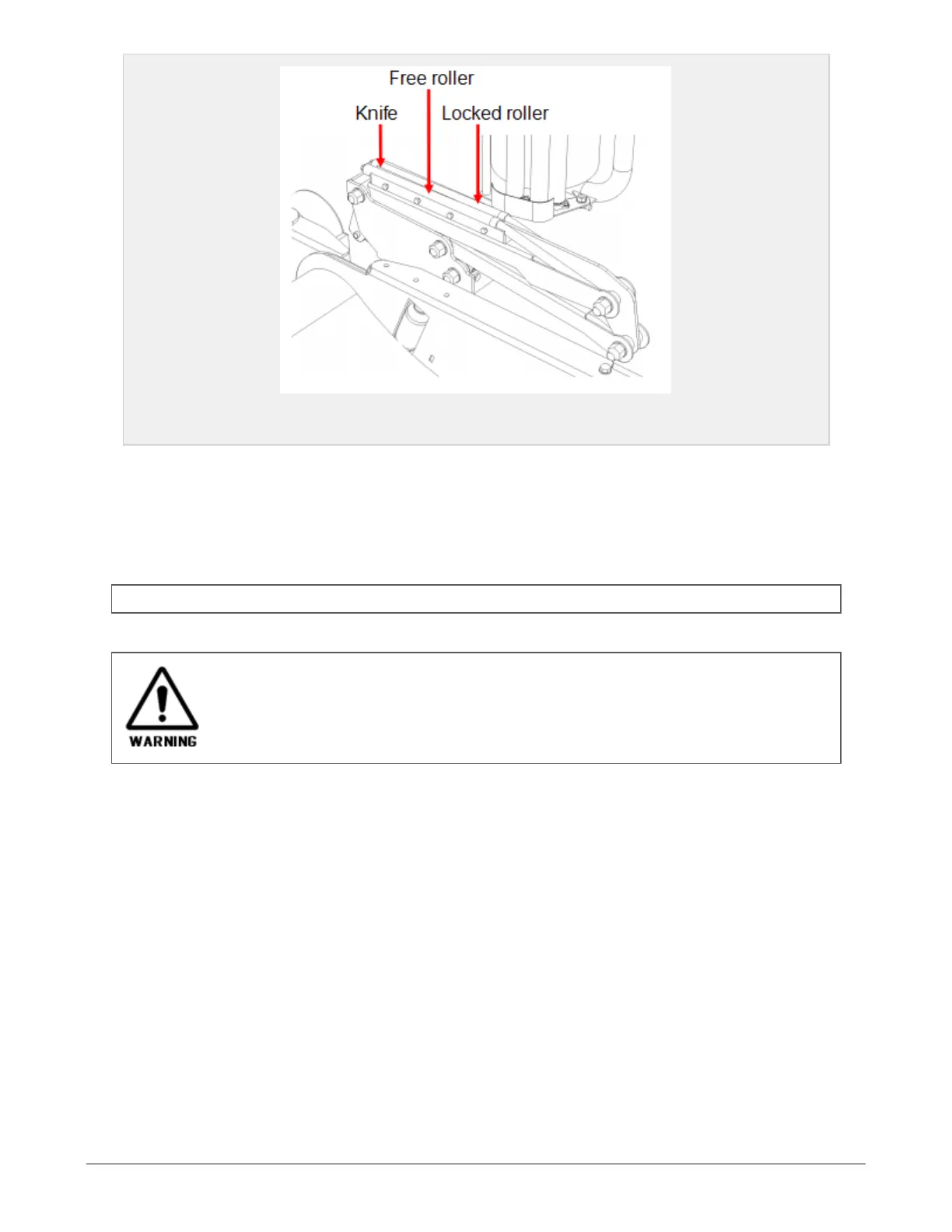

Figure 3.7 : Film cutter rollers
3.7.3 Wrapping table tilt speed
Adjusting the wrapping table tilt speed may affect the speed of the bale when rolling off the wrapping
table during bale drop. Adjusting the wrapping table tilt speed is done by turning valve P3. Clockwise
decreases the speed. Counterclockwise increases the speed. Default setting: Close the valve and then
open 3/4 turn.
NOTE: Do not set the speed too high as this might cause the bale to roll off the table uncontrollably.
Bales dropped from the wrapping table may roll more than 10 m.
3.7.4 Wrapping table ultrasonic sensor
The wrapping table ultrasonic sensor detects the bale when transported from the chamber, so that the
table accepts the bale by moving to the middle position.
3.7.5 Microsonic sensor (S1)
This type shows the read distance on an LCD. The sensor detects bales on the table.
Resetting the trigger distance and mode:
1. Press both buttons simultaneously for at least three seconds until the text ”Pro” is shown on the
LCD.
2. Press both buttons once more. The current trigger distance setting is now shown.
3. Adjust to 70 cm. (distance below 1 m shown in mm, distance above 1 m shown in cm).
