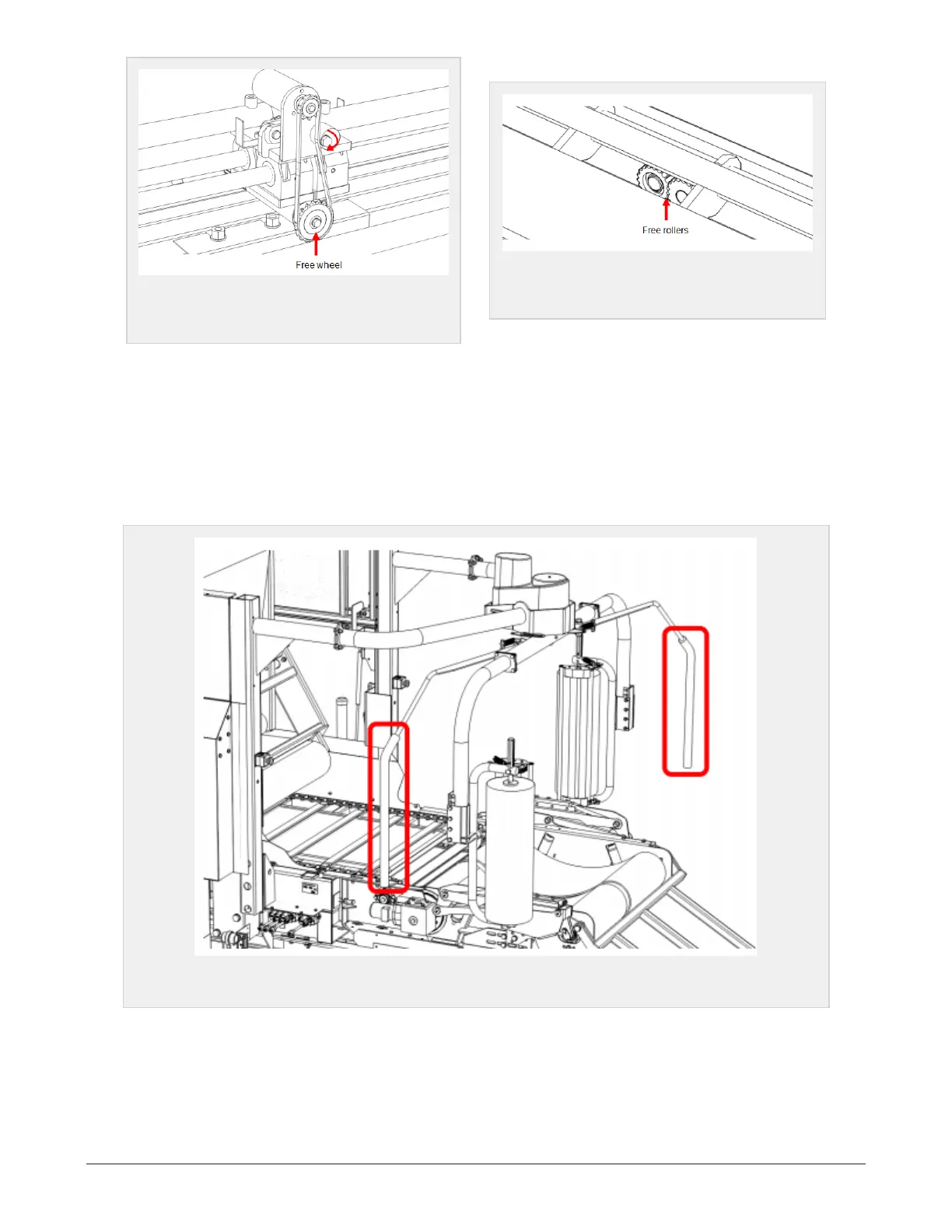

Figure 7.23 :
Free wheel, seen from
wrapping table
Figure 7.24 :
Feed rollers, seen from oper-
ator's platform
7.10 WRAPPING TABLE
7.10.1 Inspection
Check the function of both emergency stop handles. Tighten the hinge bolts so that the handles barely
returns to the start position. If the hinge bolts are too loose, the emergency stop handles may be
triggered unnecessary. Also check that the wrapping film crosses the film cutter in the center of the knife
bed. See Figure 7.26.
Figure 7.25 :
Wrapping table, emergency stop handles
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 81
