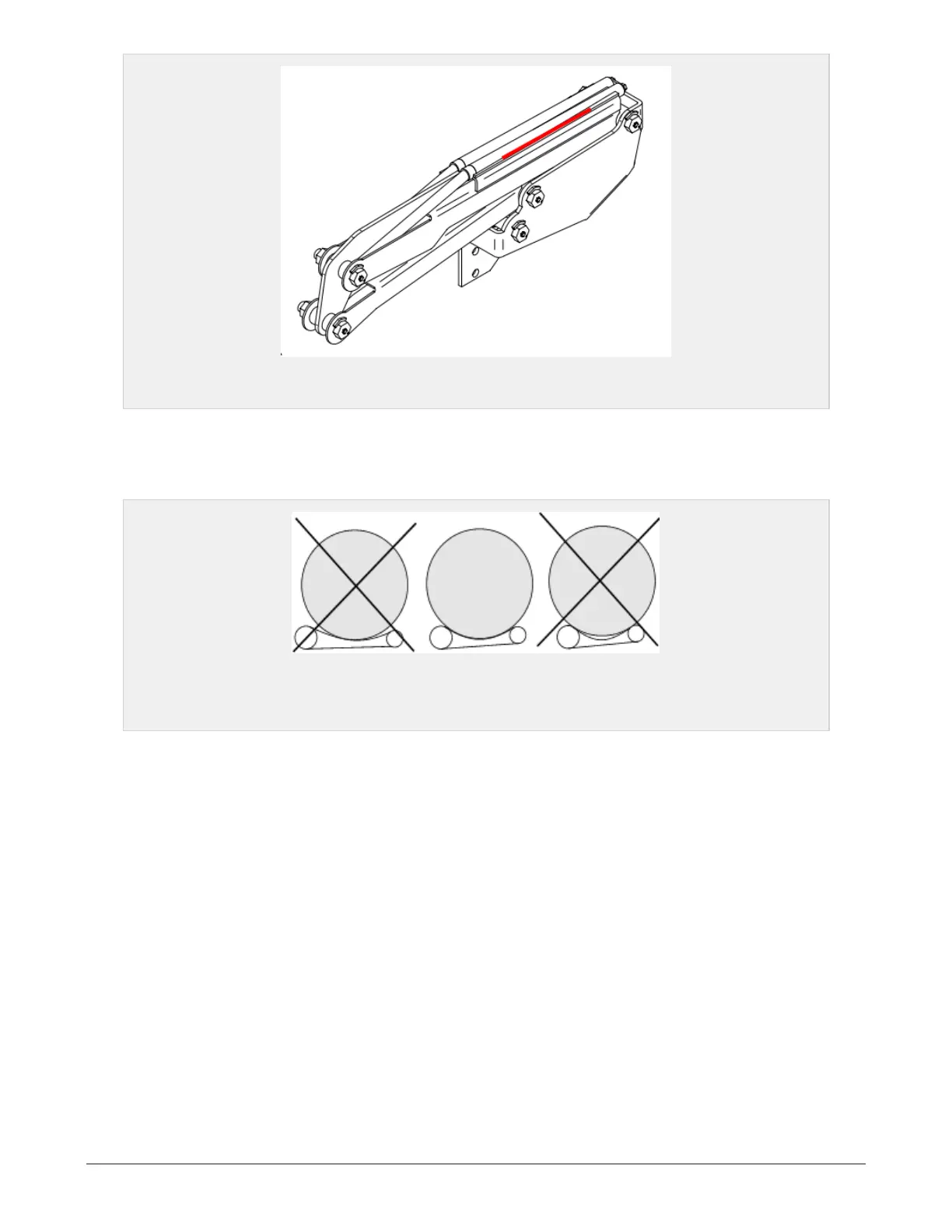

Figure 7.26 :
Knife bed
7.10.2 Adjusting the wrapping table belt
The tension of the wrapping table belt must be adjusted as shown in Figure 7.27.
Figure 7.27 :
Correct belt tension, wrapping table
The belt tension can be changed by relocating the roller. There are six alternative holes to mount the roller
support (Figure 7.28)
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 82
