4.2.3 Lever/Controls overview

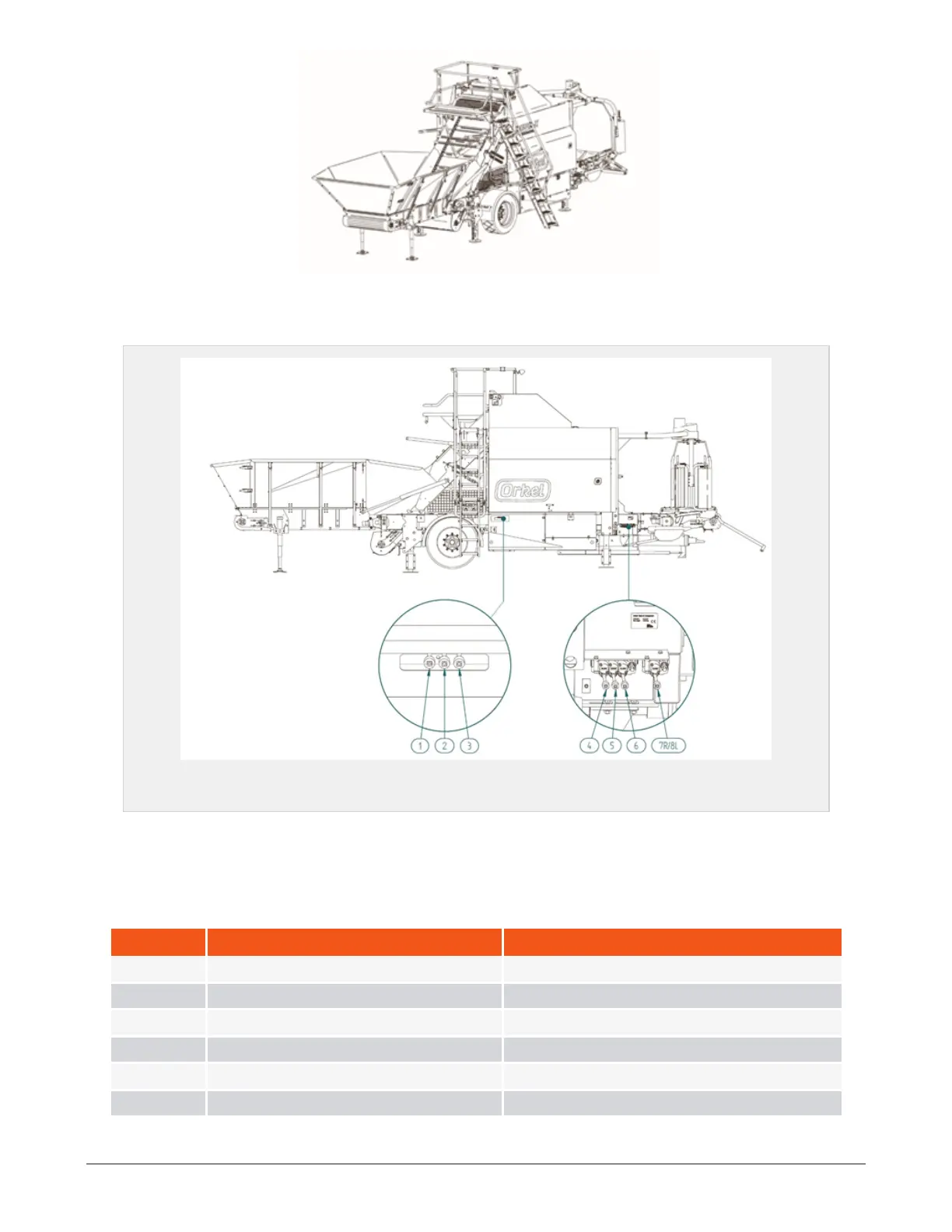

Figure 4.1 :
Lever/Controls overview MP2000-X
See section 3.3.1 "Control panels" for descriptions of the levers/controls regarding the feed hopper.
4.2.4 Lever list
Telescopic drawbar and feed hopper F10
Lever no: Valve function
1 Left support leg, rear Up / down
2 Right support leg, rear Up / down
3 Feed hopper Up / down
4 Left support leg, front Up / down
5 Right support leg, front Up / down
6 Drawbar In / out
