ORKEL MP2000-X - Ball Bearings; Drive Chains; Drive Chains Overview

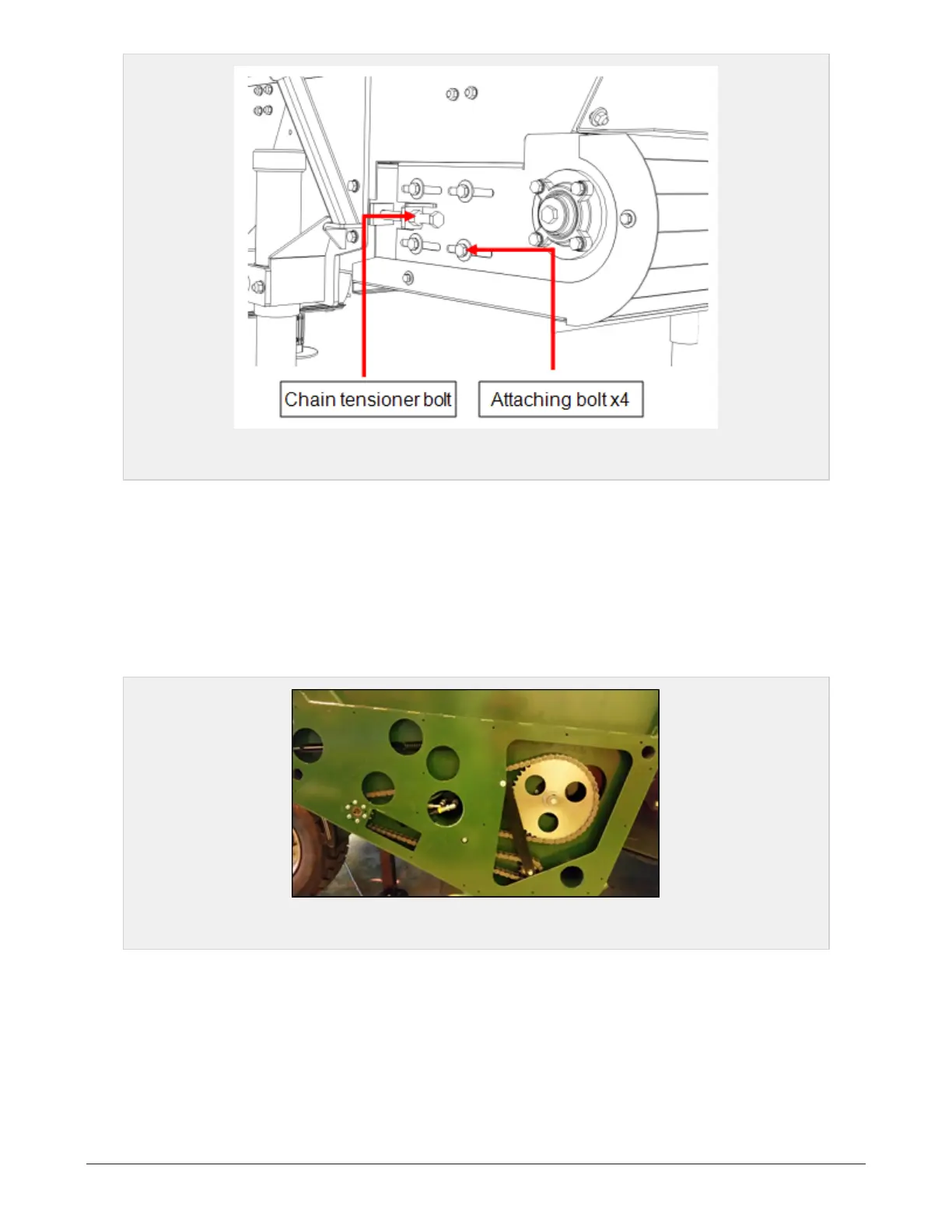

Figure 7.4 : Chain tensioner, feed hopper F10
7.5.2 Ball bearings
The rollers in the feed hopper should be without deformations and cracks. Check the bearing clearances
without belt tension. Replace worn bearings.
7.6 DRIVE CHAINS
7.6.1 Drive chains overview
Figure 7.5 : Drive chains, left side
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 71
