ORKEL MP2000-X - Feed Hopper; Tightening the Feed Hopper Belts F10

7.5 FEED HOPPER
7.5.1 Tightening the feed hopper belts F10
This belt are of chain type with welded carriers. Check the belt tensioning and look for uneven wear.

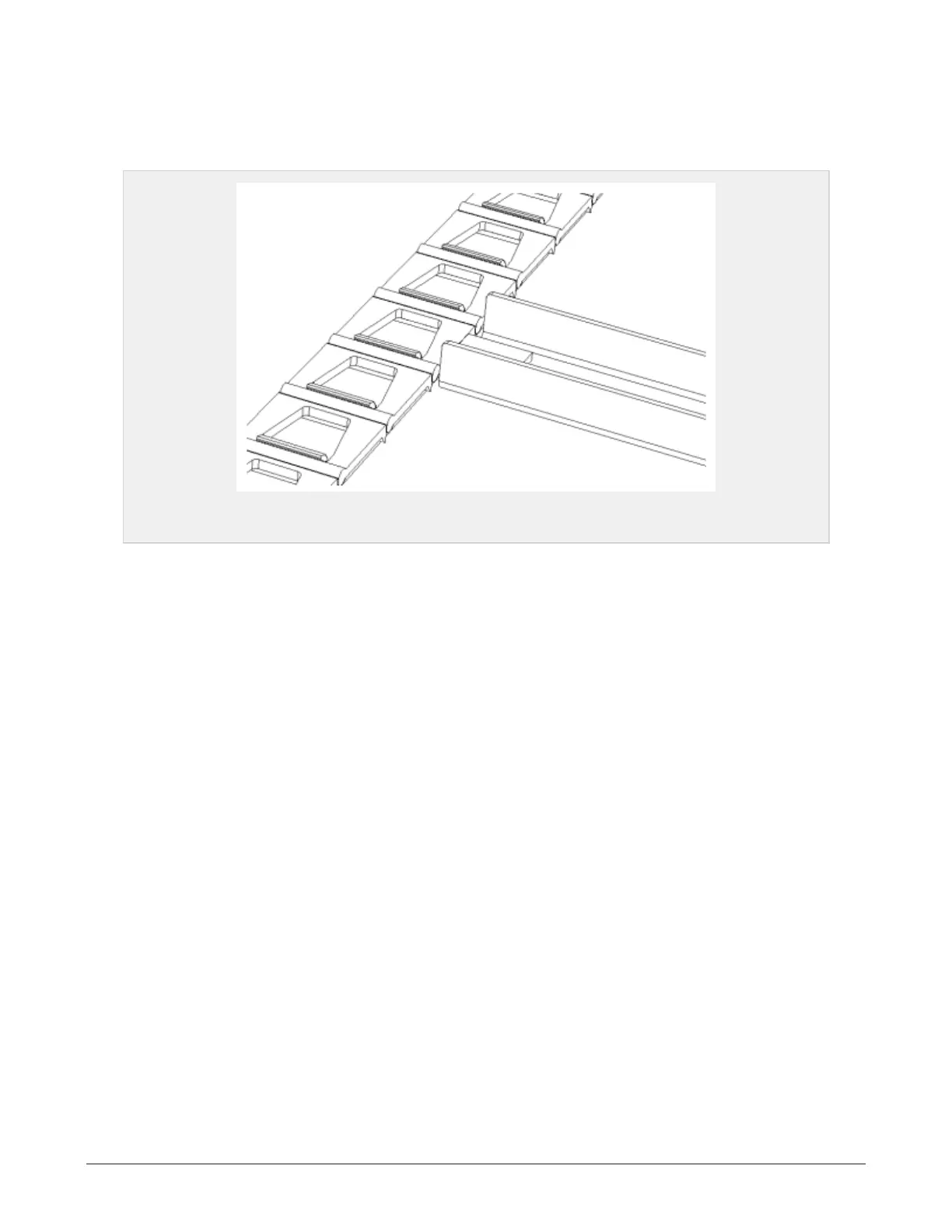

Figure 7.3 : Feed hopper conveyor, F10
Procedure:
l Loosen the four bolts holding the bracket.
l Untighten the counter nut and tighten the bolt on the chain tensioner until correct belt tension is
achieved.
l Adjust both sides equally.
l Tighten the counter nut and the attaching bolts on the bracket.
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 70
