Front: Use a nylon strap to make a loop around the front crossbeam (Beam Dim: 100 x 100mm).
Rear: Use lifting points on the hydraulic jack stands
NOTE: Use only certified lifting gear with sufficient lifting capacity.

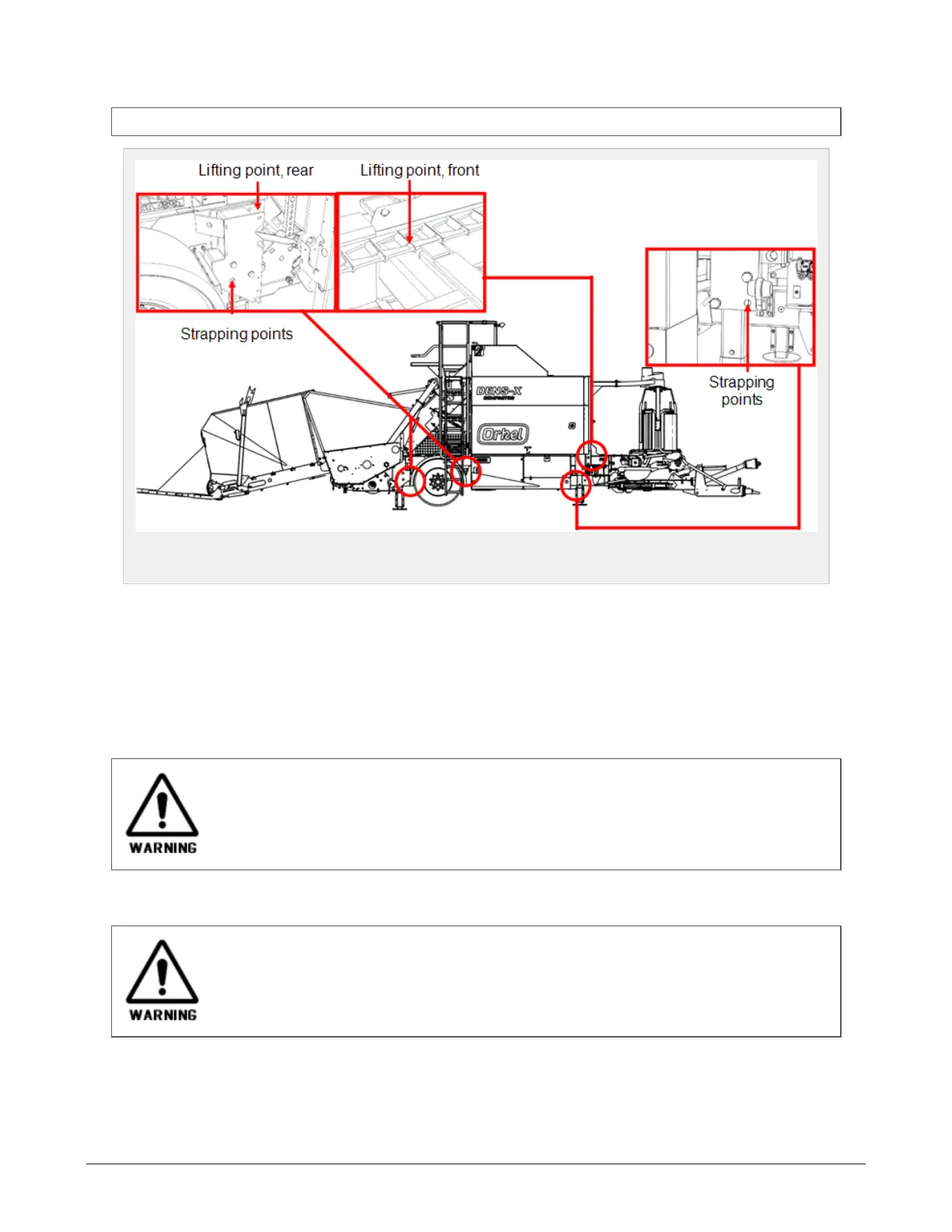

Figure 5.1 :
Lifting and strapping points
5.1.4 Strapping and tie down
Secure the machine from moving if transported by lorry, train or boat. Only use approved securing straps
or chains, designed for this purpose. There are four points designed for strapping. One on each hydraulic
jack stand.
5.1.5 Dismantling the machine
General safety precautions must be taken when stripping down the machine. Center of gravity
might change during dismantling. Secure large parts to reduce the risk of injury. Be aware of
overturning.
Hazardous waste like: Oil, plastic and so on, must be stored in an environmentally safe way, or delivered at
a certified waste-disposal plant.
Be aware of overhanging power lines.
Max height in transport position: 4100 mm [F10]
