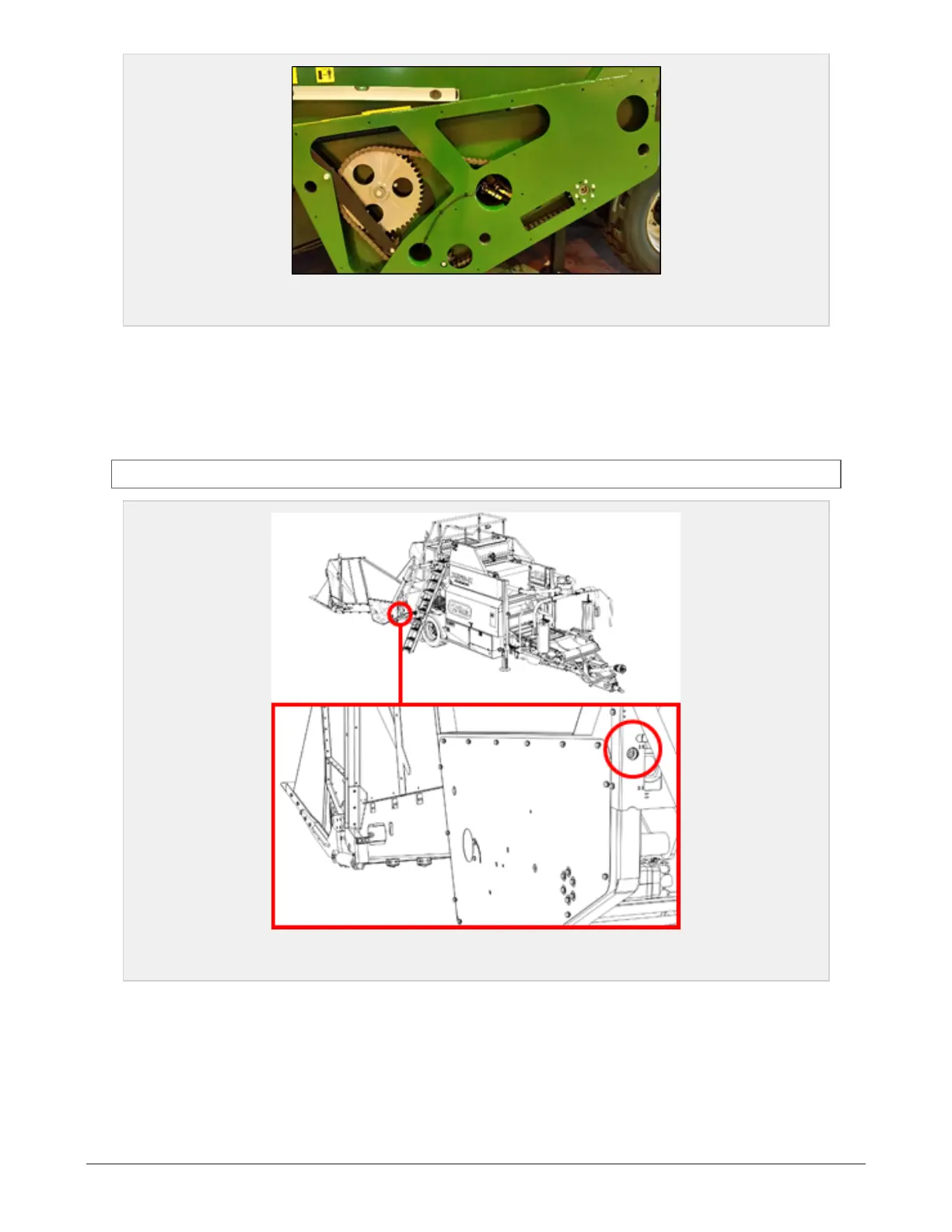

Figure 7.6 :
Drive chains, right side
7.6.2 Drive chains tensioning
The chain tensioning is done by turning the adjustment bolts as shown on the pics below. One bolt on each
side of the compactor.
IMPORTANT: The hopper halves must be lowered all the way to the ground before one can adjust the chain.
Figure 7.7 :
Adjustment bolt location, both sides
7.7 ELEVATOR AND SUB CONVEYOR
7.7.1 Conveyor belts and feeder carrier
Sub conveyor and elevator.
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 72
