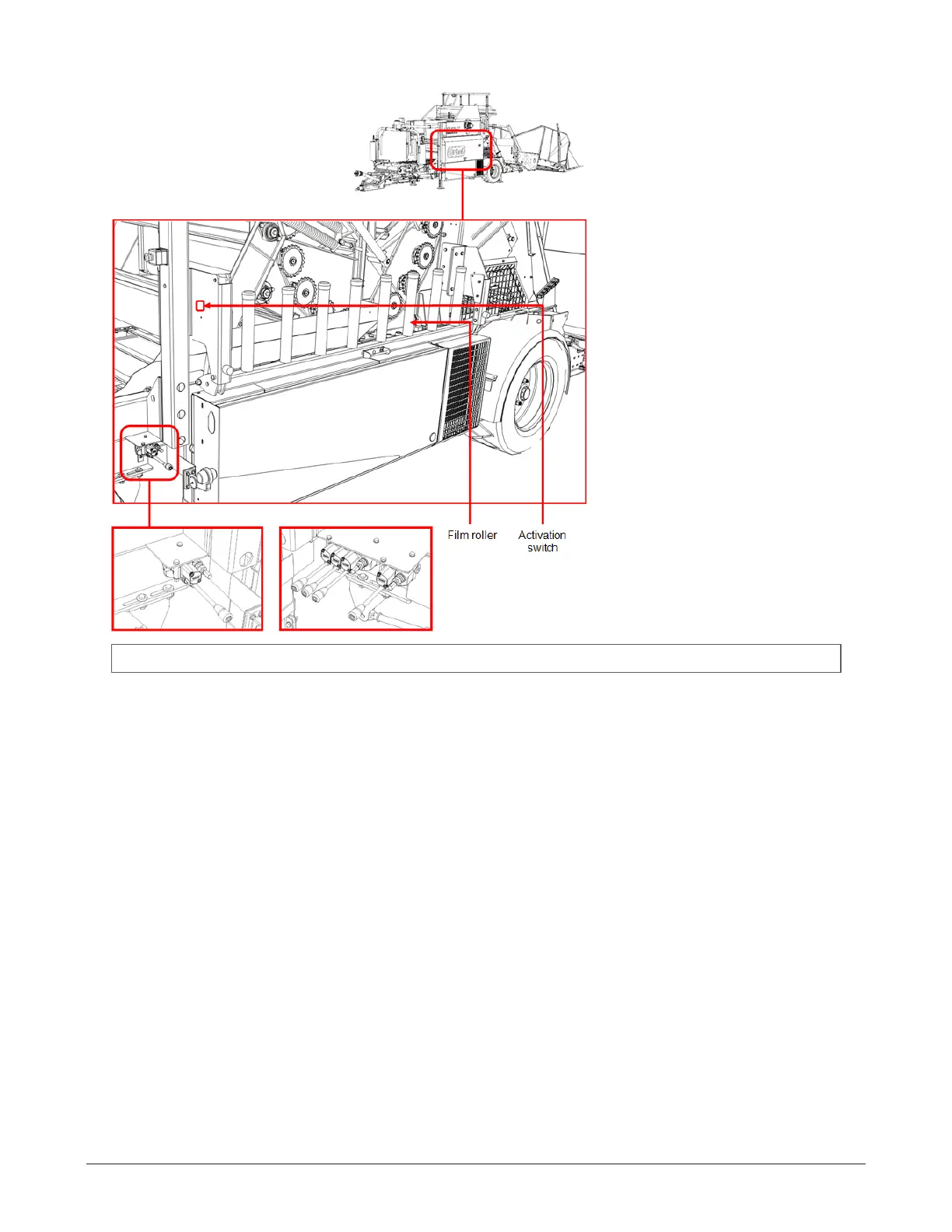

age. In order to operate the storages the machine must be connected to the tractor’s hydraulic system,
with the oil flow activated. The total capacity is 15 film rollers.
NOTE: 14 turns/laps of the wrapping arm equals approximately 6 layers of film on the bale.
4.7 WRAPPING ARMS
4.7.1 Wrapping arm emergency stop
The compactors wrapping arms are equipped with safety guards that stop the wrappers movement if
obstructed while wrapping. If the safety guards are triggered, there will be a popup message on the dis-
play unit. The safety guards must be manually cleared from any obstruction. The machine will not start
until activated by a new command from the display unit.
4.7.2 Installing a new film roller in the wrapper
1. Grab the tensioner on the stretcher and pull it to the right.
2. Open the lock lever, lift the centering cone and lock it in its upper position.
3. Replace the empty film roller.
4. Align the film roller with the centering cone, drop and lock the cone.
5. Thread the film as shown on Figure 4.5 and swing back the tensioner onto the film roller.
6. Fasten the film on the bale or the film cutter. Wrapping may now continue.
4 OPERATION 42
