4.8 PARKING BRAKE
The parking brake is located near the right side wheel (Figure 4.6). Rotate clockwise to engage, and
counter clockwise to disengage
NOTE: Always make sure the parking brake is disengaged before moving the compactor.

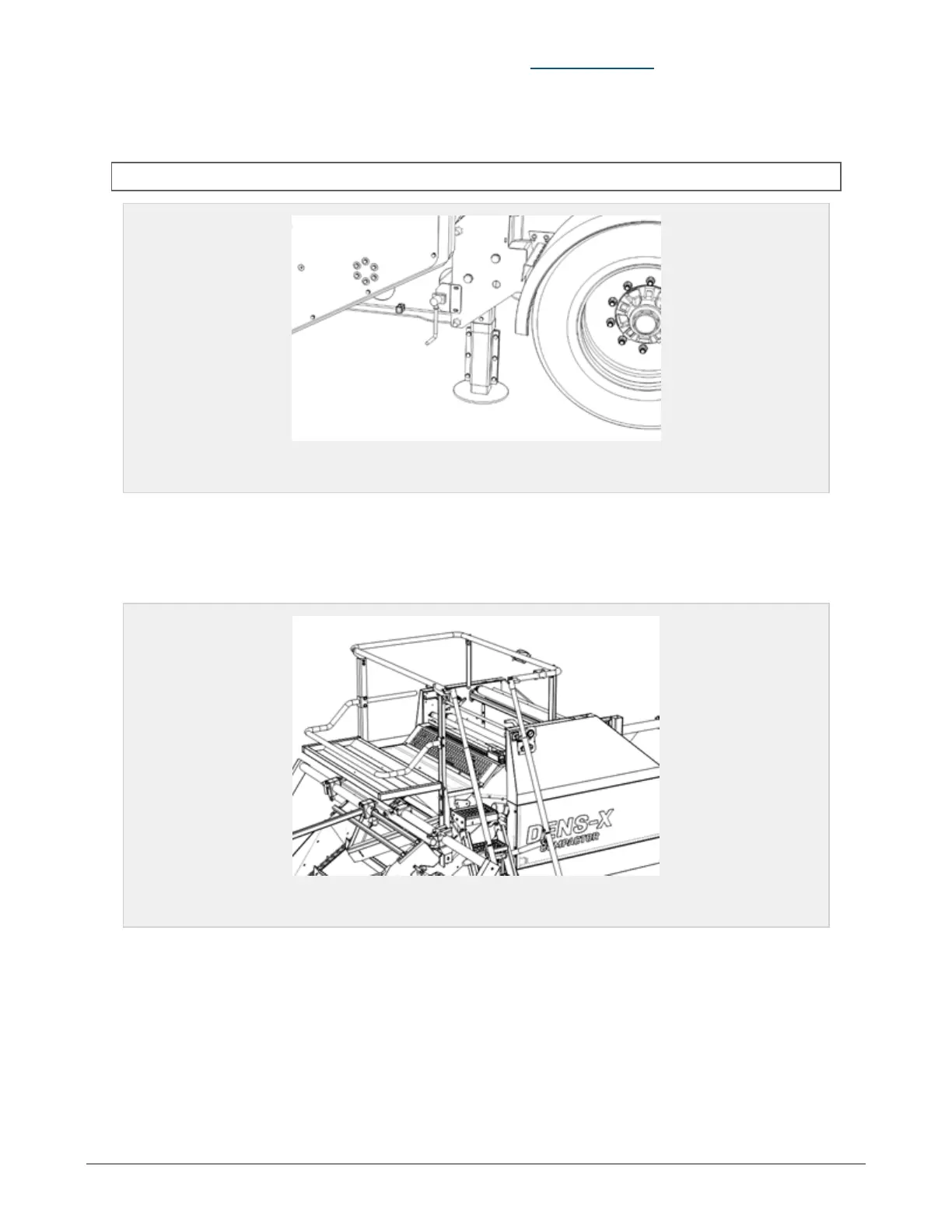

Figure 4.6 :
Parking brake
4.9 OPERATORS PLATFORM
The operator’s platform is a safe station for the operator when changing net/film rollers in the tying unit.
It keeps the operator away from all moving parts and makes the process safer. It also contains extra room
for additional net/film rollers.
Figure 4.7 :
Operator's platform
Standing on the platform may give a better overview of the work site and danger zones.
4.10 COMPRESSED AIR CLEANER SYSTEM
The compressed air cleaner system is an automatically triggered cleaning system that uses
compressed air to maintain clean and dry component surfaces critical for continous operation.
4 OPERATION 44
