Optional Memory FP0
2 − 26

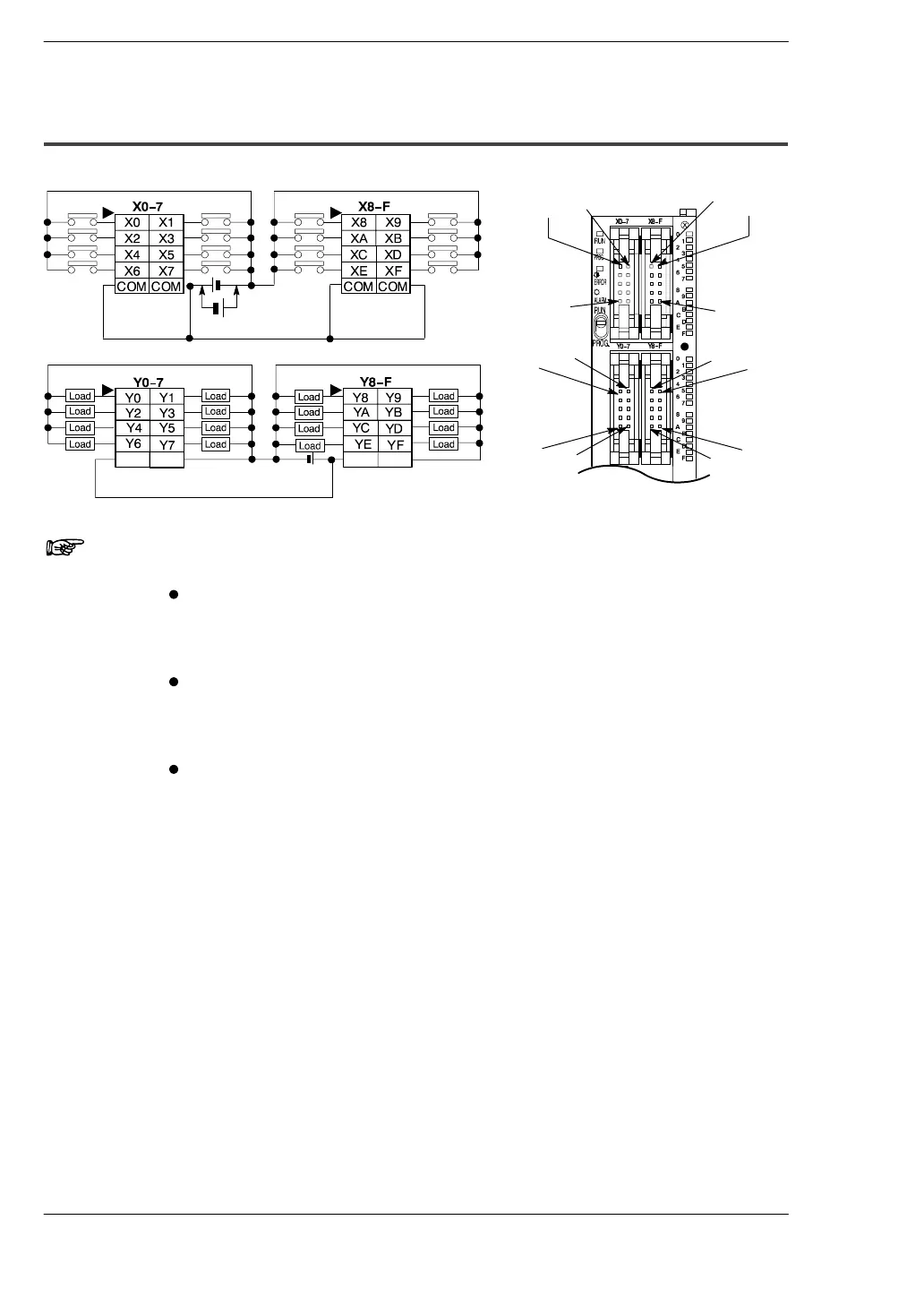

2.4 Pin Layouts
2.4.6 C32P/C32CP/T32CP
C32P/C32CP
X8
Y8 Y9
X9
X0 X1
Y1Y0
COM
COM
(−)(+) (+) (−)
Input Input
Output Output
(−)
(−)(+) (+)
(* Note 1)
Notes
The four COM terminals of input terminals (X0−7 and X8−F) are
connected internally, however they should be externally
connected as well.
The (+) terminals of output terminals (Y0−7) and output
terminals (Y8−F) are connected internally, however they
should be externally connected as well.
The (−) terminals of output terminals (Y0−7) and output
terminals (Y8−F) are connected internally, however they
should be externally connected as well.
1) Either positive or negative polarity is possible for the input
voltage supply.
