Expansion I/O Units FP0
3 − 18

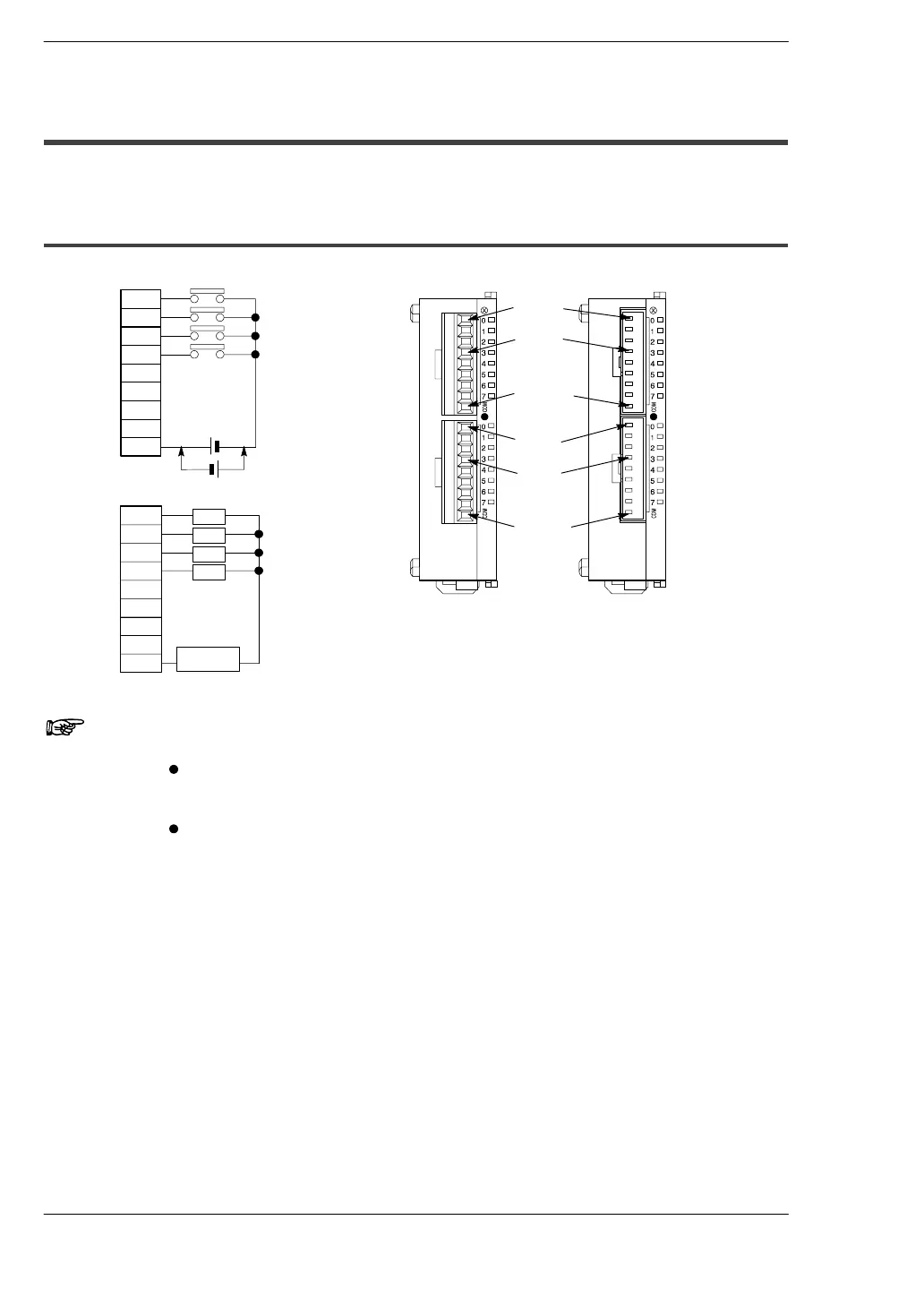

3.4 Pin Layouts
3.4 Pin Layouts
3.4.1 E8RS/E8RM
Y0−3
E8RS E8RM
X20
X23
COM
Y20
Y23
COM
COM
X20
X21
(NC)
(NC)
X22
X23
(NC)
(NC)
Input
Output
(* Note)
COM
Y20
Y21
(NC)
(NC)
Y22
Y23
(NC)
(NC)
Power
supply
Load
Load
Load
Load
Y0−3
X0−3
X0−3
Notes
Either positive or negative polarity is possible for the input
voltage supply.
The I/O number given above is the I/O number when the
expansion I/O unit is installed as the first expansion unit.
The I/O numbers for the expansion I/O units will differ
depending on the location where they are installed
(*section 5.3).
