Expansion I/O Units FP0
3 − 24

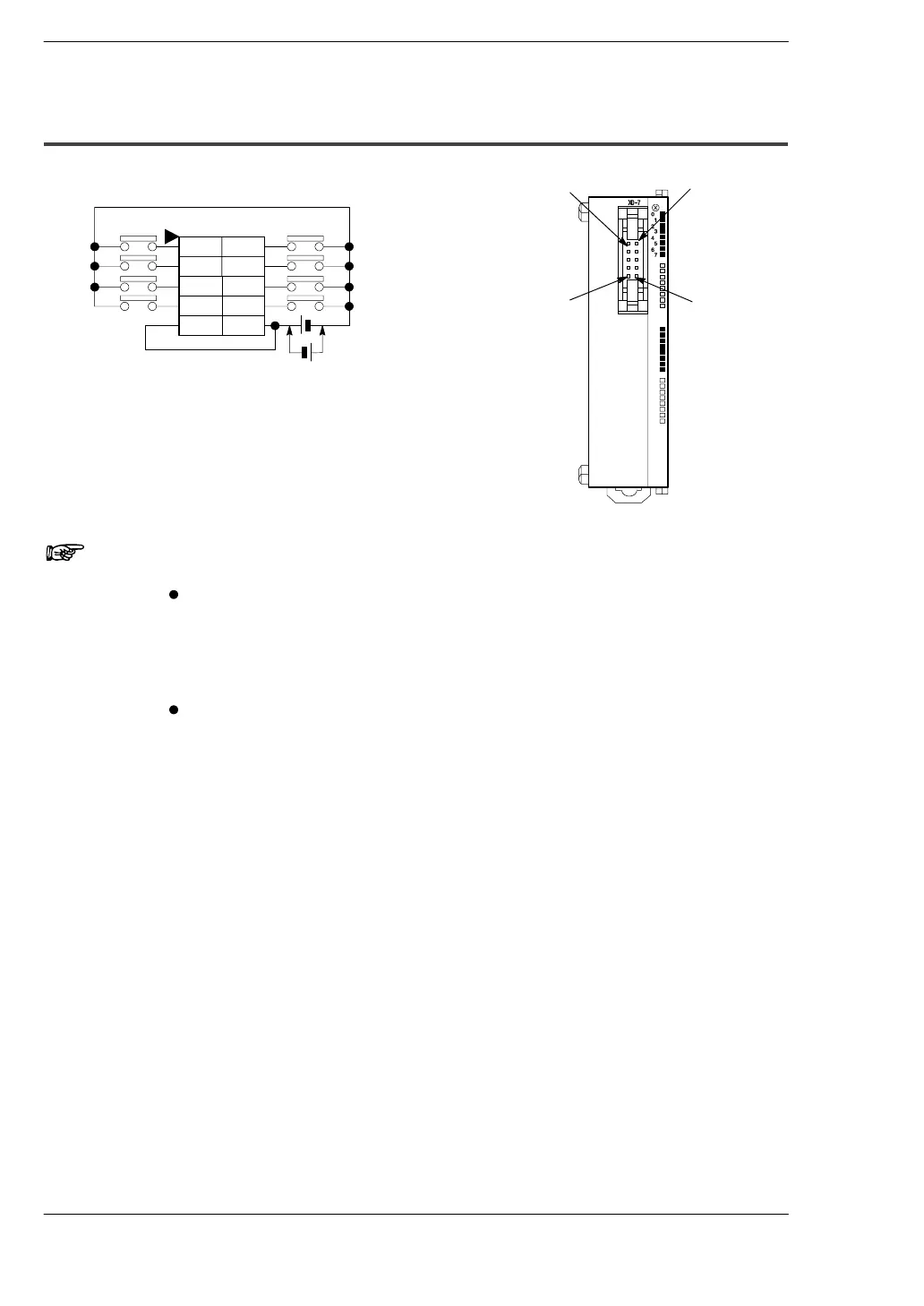

3.4 Pin Layouts
3.4.7 E8X
E8X
X20
X21
COM
COM
COM
X25
X27
X21
X23
COM
X24
X26
X20
X22
Input
(* Note 1)
Notes
The two COM terminals of input terminals are connected
internally, however they should be externally connected as well.
1) Either positive or negative polarity is possible for the input
voltage supply.
The input number given above is the input number when the
expansion input unit is installed as the first expansion unit.
The input numbers for the expansion input units will differ
depending on the location where they are installed
(*section 5.3).
To Next Page
