Perfecta 115 TS - Page 18

Service Manual 3 Clamping System
3.1 Gap between knife back and clamp edge
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 18
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
115/132/168/225 cm machines
- Slacken lower nuts 3 on the left and right of the clamp.
- By slightly turning eccentric pin 4 (uniformly on both sides), you can move the
clamp toward or away from cutting line 2.
Use a feeler gauge and check gap s over the entire cutting width.
- Keep the positions of the readjusted eccentric pins when locking the nuts.
A-A

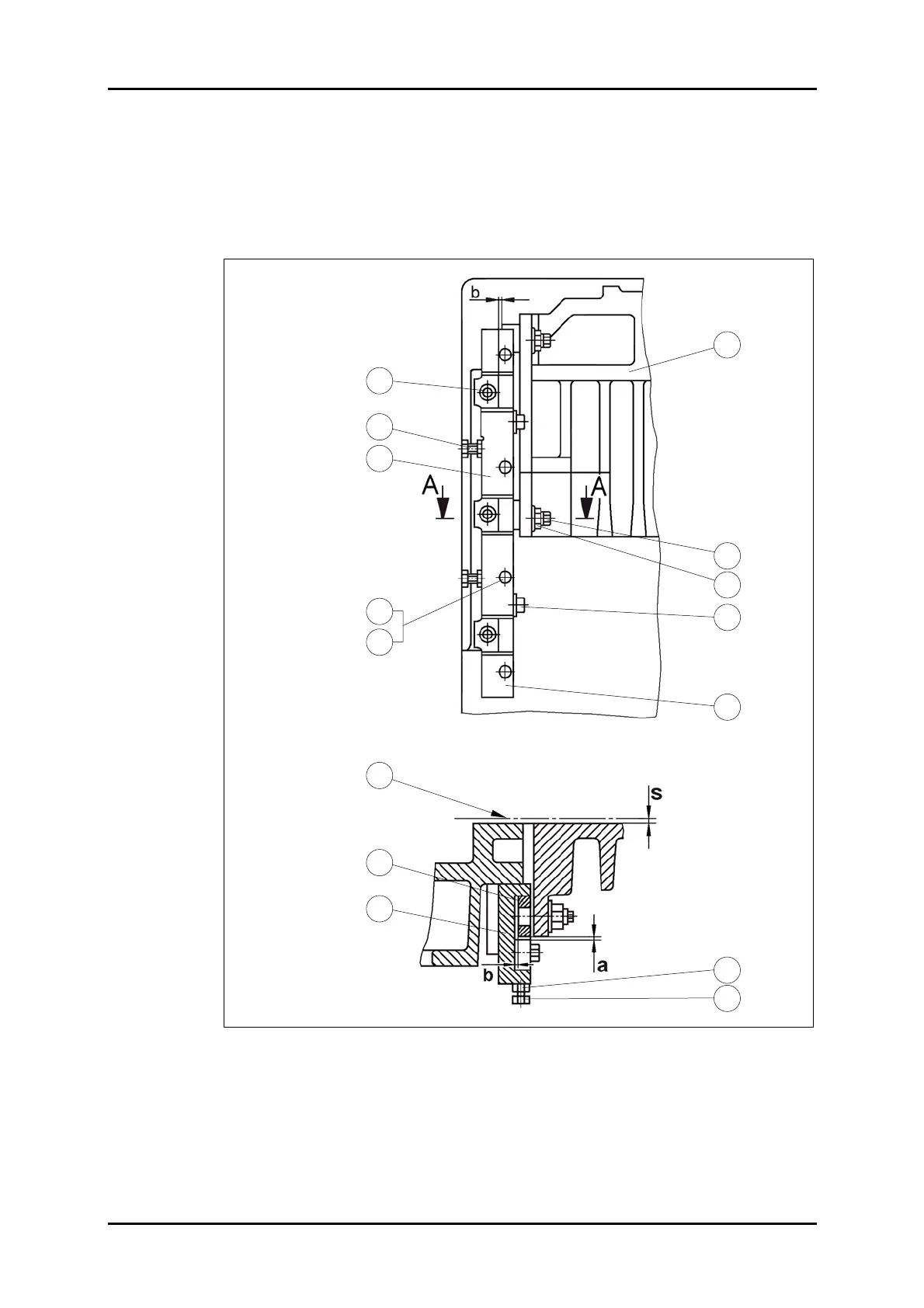

Figure 10: PERFECTA 115/132/168/225 clamping system.
7
4
1
12
5
3
5
8
6
9
10
11
10
6
2
