Service Manual 3 Clamping System
3.1 Gap between knife back and clamp edge
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 17
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
92 cm machines

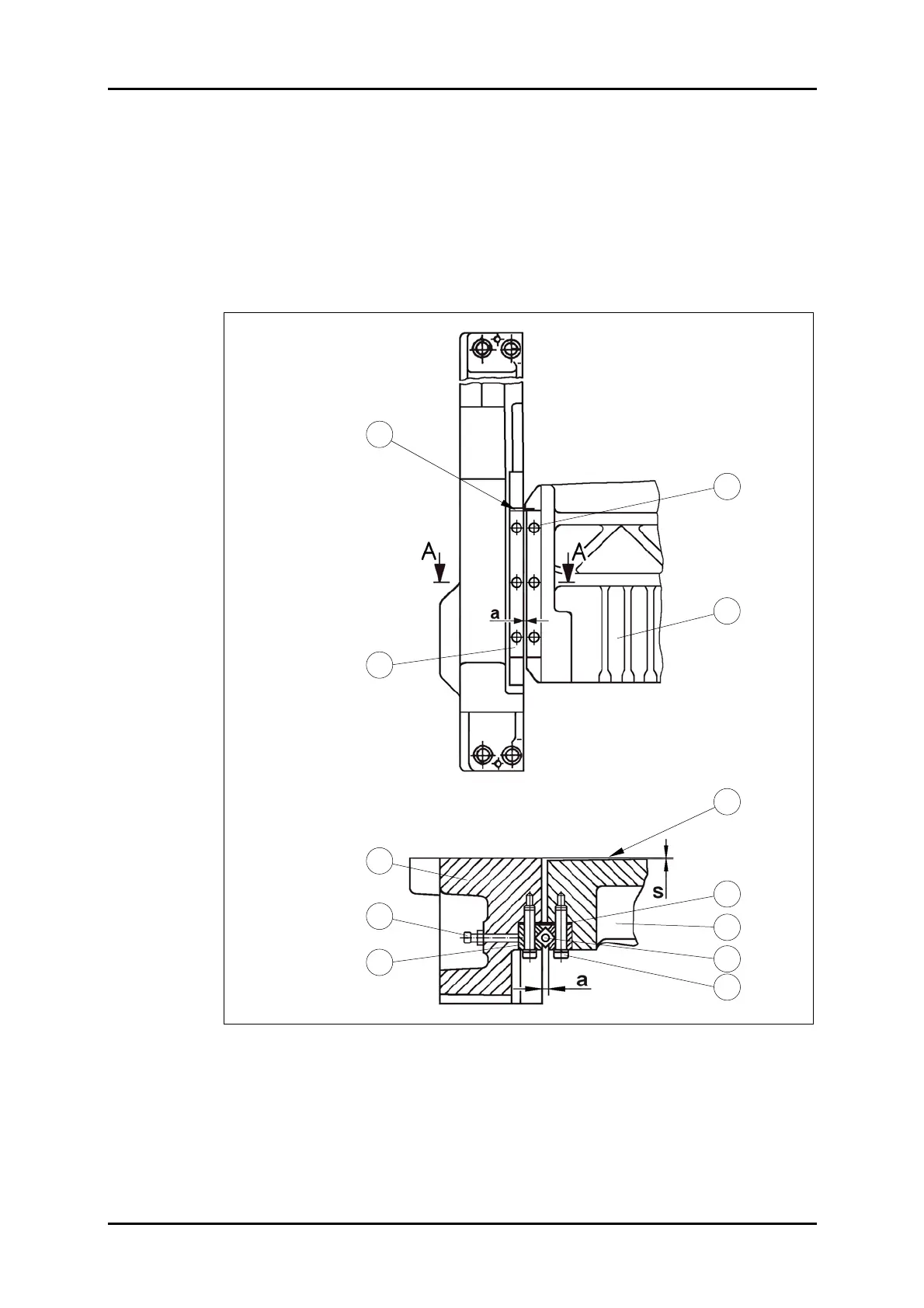

Figure 9 shows shims 3 under preloaded roller guides 4, i. e. the factory setting of the
position of clamp 1 with respect to cutting line 2.
Putting in a shim 3 between clamp 1 and roller guide 4 will reduce gap s by the thick-
ness of the shim, while removing shim 3 will widen the gap.
Putting in a shim 3 between guide bar 9 and roller guide 4 will increase gap s by the
thickness of the shim, while removing shim 3 will reduce the gap.
The procedure is described under "Play in the clamp guideway".
A-A
Figure 9: PERFECTA 92 clamping system.
2
6
1
8
4
3
5
1
6
7
4
9
