Service Manual 4 Cutting Mechanism
4.2 Non-repeat device
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 32
PERFECTA Schneidemaschinenwerk GmbH D-02625 Bautzen Schäfferstr. 44 Tel.: +49-3591-556-131 to -133 Fax: +49 3591-556-139
115/132 cm machines
Use threaded bolt 3 to tension and lock chain 1 which connects solenoid Y80 with safety
latch 2 so as to obtain a gap of s = 0.6 – 1.0 mm between safety latch 2 and safety latch
stop 4 while the solenoid is de-energized.
At this position, switching vane 5 must fully cover proximity switch B81. The distance
between the proximity switch and switching vane 5 must be 1.5 + 0.5 mm.
Adjust proximity switch B82 so that it will be actuated by vane 5 when the solenoid is ON
(after you have actuated the manual clutch switch – refer to "Manual Cranking" in the
Operating Manual).
Caution:
If the safety latch rests on the knife beam contour while Y80 is OFF proximity
switch B82 must not be actuated yet.

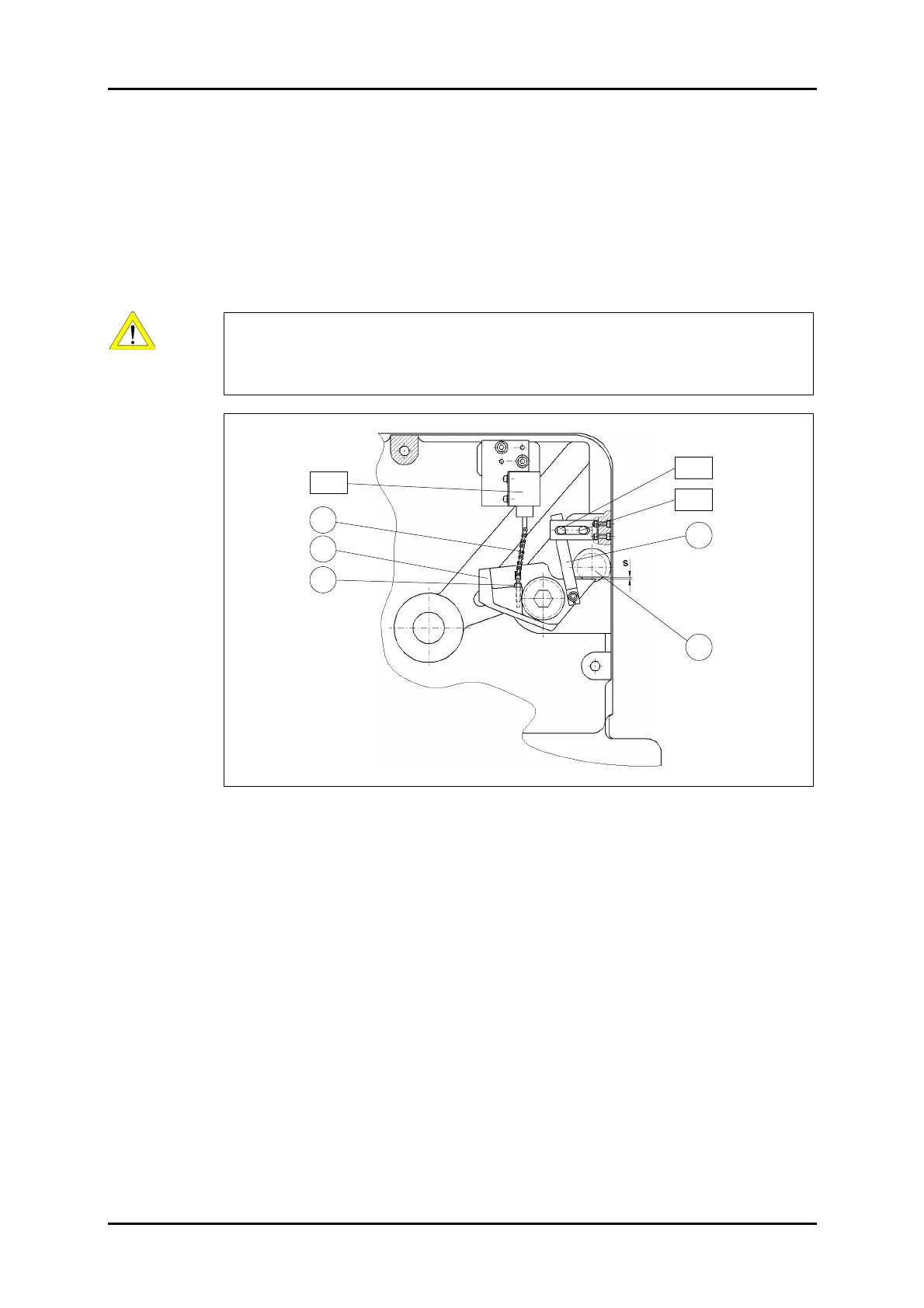

Figure 24: PERFECTA 115/132 non-repeat device – front view.
2
B 81
3
5
1
4
B 82
Y 80
