FUEL SYSTEM 20B

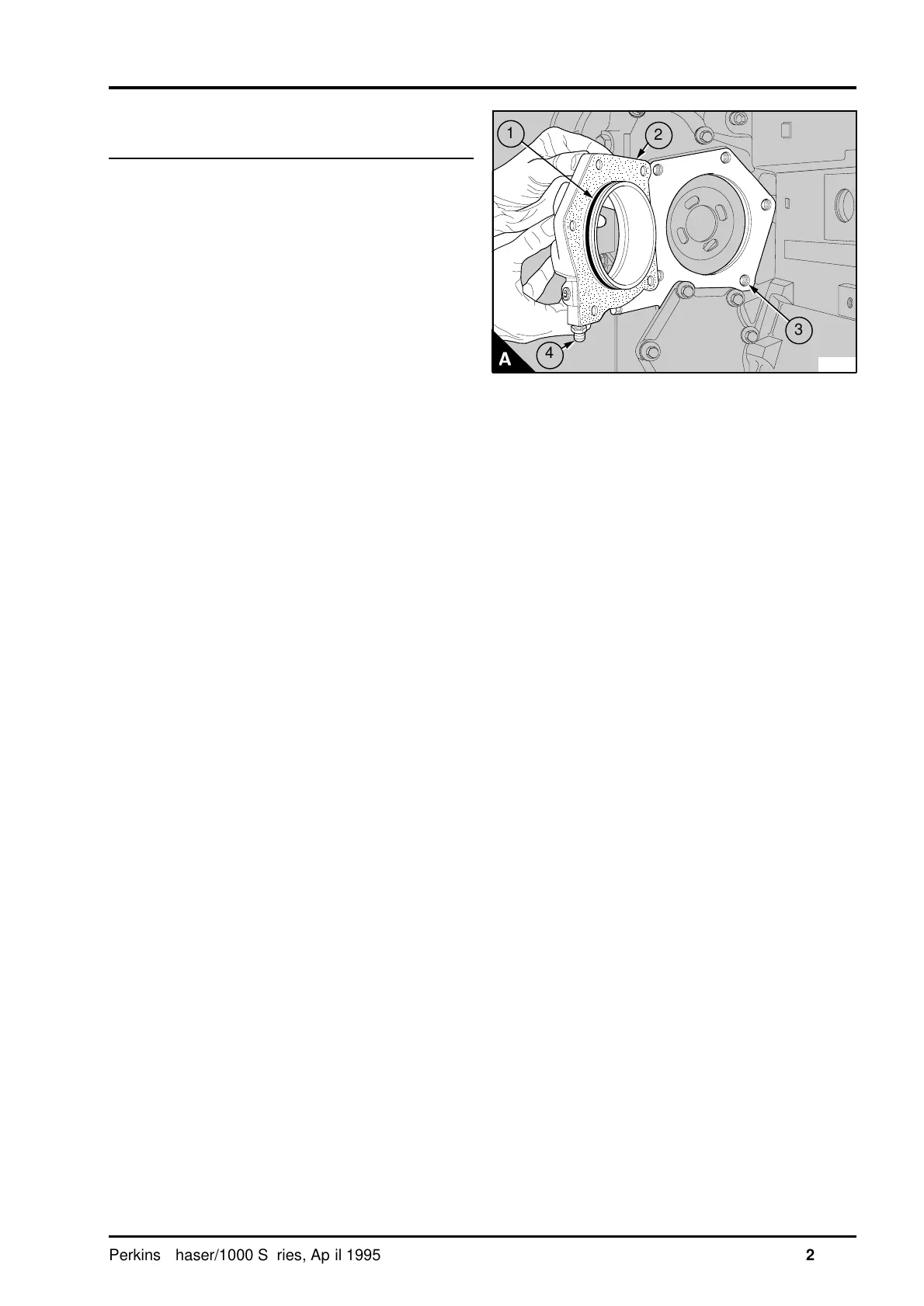

To remove and fit the adaptor plate
for the fuel injection pump20B-07
1Remove the fuel injection pump, operation
20B-05.
Note: The latest engines do not have an "O" ring
(A1) or a lubricating oil pipe fitted fitted.
2 Disconnect the lubricating oil pipe, if one is fitted,
from the adaptor plate connection (A4).
3 Release the five setscrews and remove the
adaptor plate.
4 Renew the joint (A2) and the "O" ring (A1), if
one is fitted. Lightly lubricate the "O" ring with
lubricating oil and put the adaptor plate in position
on the timing case.
5 Clean the threads of the setscrews and the
threads in the timing case and apply a sealant to
the threads. Fit the setscrews, ensure that the
longest setscrew is fitted in the inner bottom
position (A3). Tighten the setscrews to 44 Nm
(33 lbf ft) 4,5 kgf m.
6 Connect the lubricating oil pipe (if one is fitted) to
the adaptor plate.
PA198
a a a
a
a
a
a
a
a
a a a
1
a a a
a
a
a
a
a
a
a a a
2
a a
a a
a a
a a
3
a a
a a
a a
a a
4
Perkins Phaser/1000 Series, April 1995 20B.13
