9 Fit new tab washers (A2 and A12), ensure that
the peg on the tab washers is fitted correctly in the
keyway of the gears. Fit and tighten the nuts (A1
and A13) to the torque recommended in section
11B. Bend the tab washers to prevent the release
of the nuts. Tab washers are not used in the latest
drive assembly. When the nuts at each end of the
drive shaft are to be fitted, ensure that the threads
at each end of the shaft are clean and apply
POWERPART Nutlock to the threads. Fit the nuts
and tighten them to 130 Nm (96 lbf ft) 13,3 kgf m.
Ensure that there is no retainer on the end of the
shaft which fits into the bush.
10 Fit the dowels into the compressor flange of the
housing.

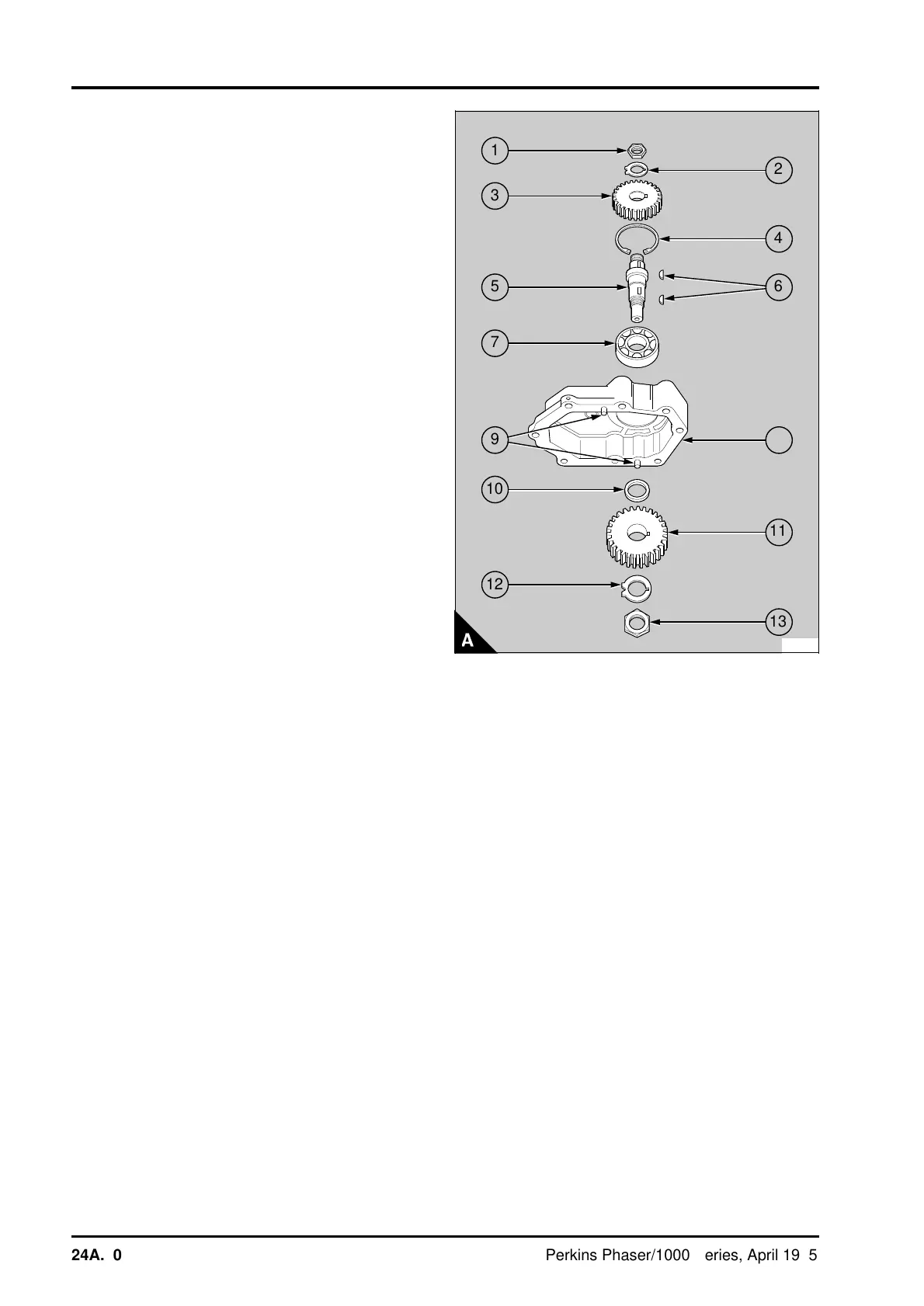

PA287
