External Memory Controller (EMC) 60 May 03, 2004

Philips Semiconductors Preliminary User Manual

LPC2119/2129/2194/2292/2294ARM-based Microcontroller

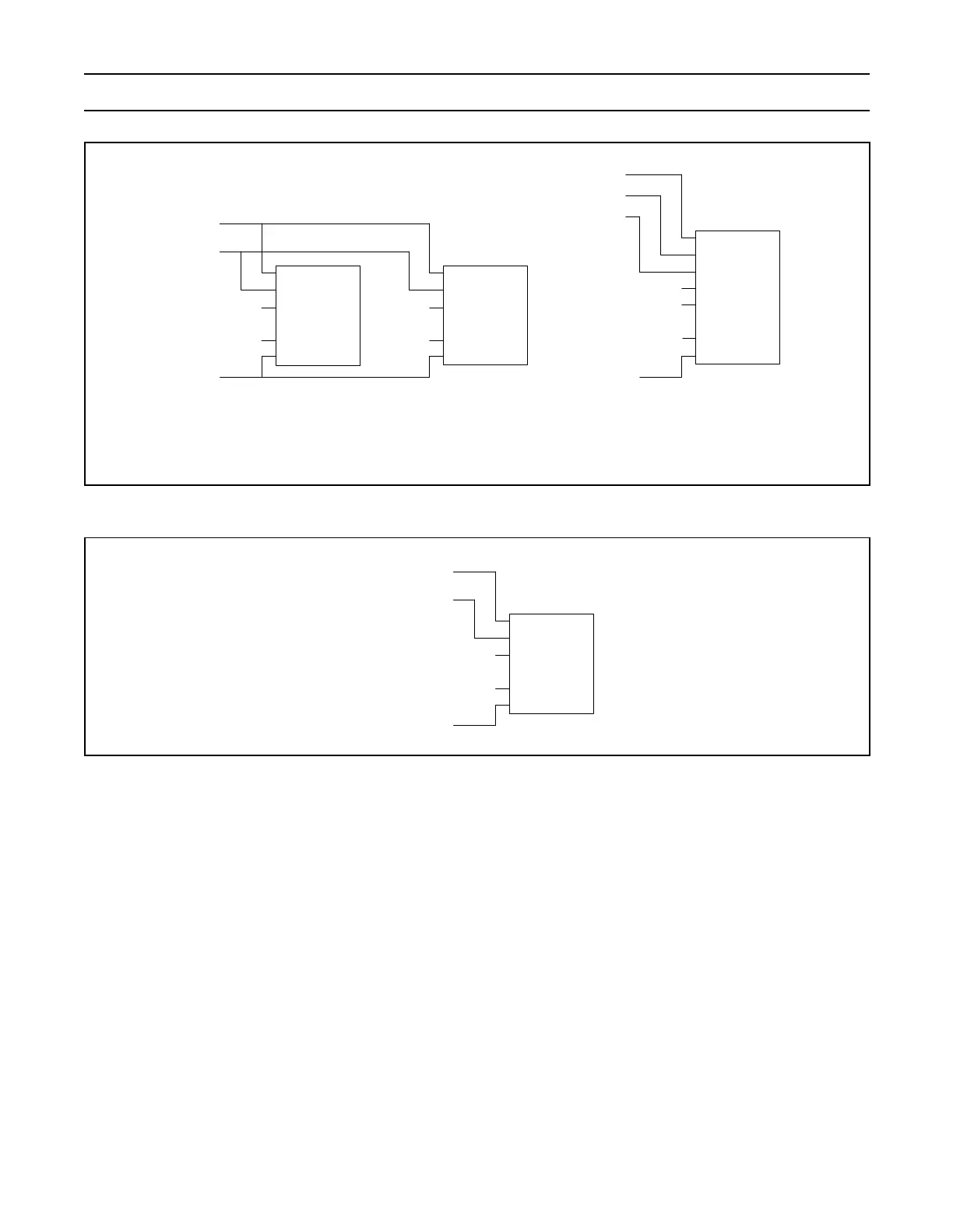

Figure 8: 16 Bit Bank External Memory Interfaces

Figure 9: 8 Bit Bank External Memory Interface

BLS[1]

D[15:8]

IO[7:0]

A[a_m:0]

BLS[0]

D[7:0]

IO[7:0]

A[a_m:0]

A[a_b:1]

IO[15:0]

A[a_m:0]

D[15:0]

BLS[0]

A[a_b:1]

BLS[1]

a) 16 bit wide memory bank interfaced

to 8 bit memory chips

a) 16 bit wide memory bank interfaced

to 16 bit memory chips

BLS[0]

D[7:0]

IO[7:0]

A[a_m:0]

A[a_b:0]
