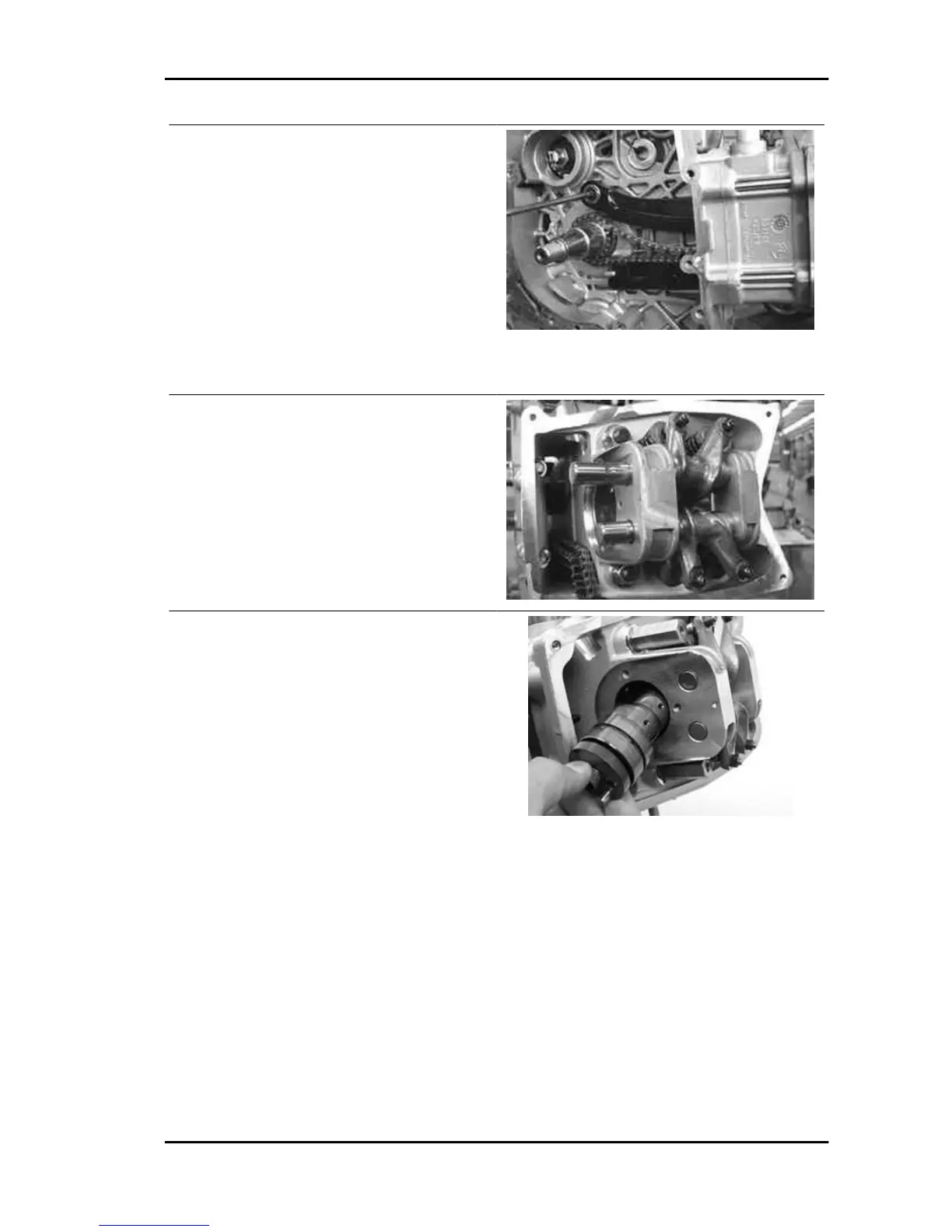

- Insert the timing control belt on the crankshaft
according to the initial direction of rotation.
- Install the tensioner shoe with its spacer, tight-
ening the bolt to the prescribed torque, using the
recommended product.
Recommended products
Loctite 243 Medium strength threadlock
Medium Loctite 243 threadlock
Locking torques (N*m)
Tensioner sliding block fixing screw 10 - 14
- Insert pins and rocking levers on the flywheel
side.
- Lubricate the two rocking levers through the
holes at the top.
- Clean the camshaft by blowing with little com-
pressed air jets, especially the retaining plate
housing.
- Lubricate the 2 shafts.
- Insert the camshaft into the head with the cams
opposite the rocking levers.
- Remove any LOCTITE residues from the screws fixing the camshaft retaining bracket using a brush.
- Apply the recommended product to the fixing screws and tighten the screws after wiping off any
threadlock deposits.
Recommended products
Loctite 243 Medium strength threadlock
Medium Loctite 243 threadlock
