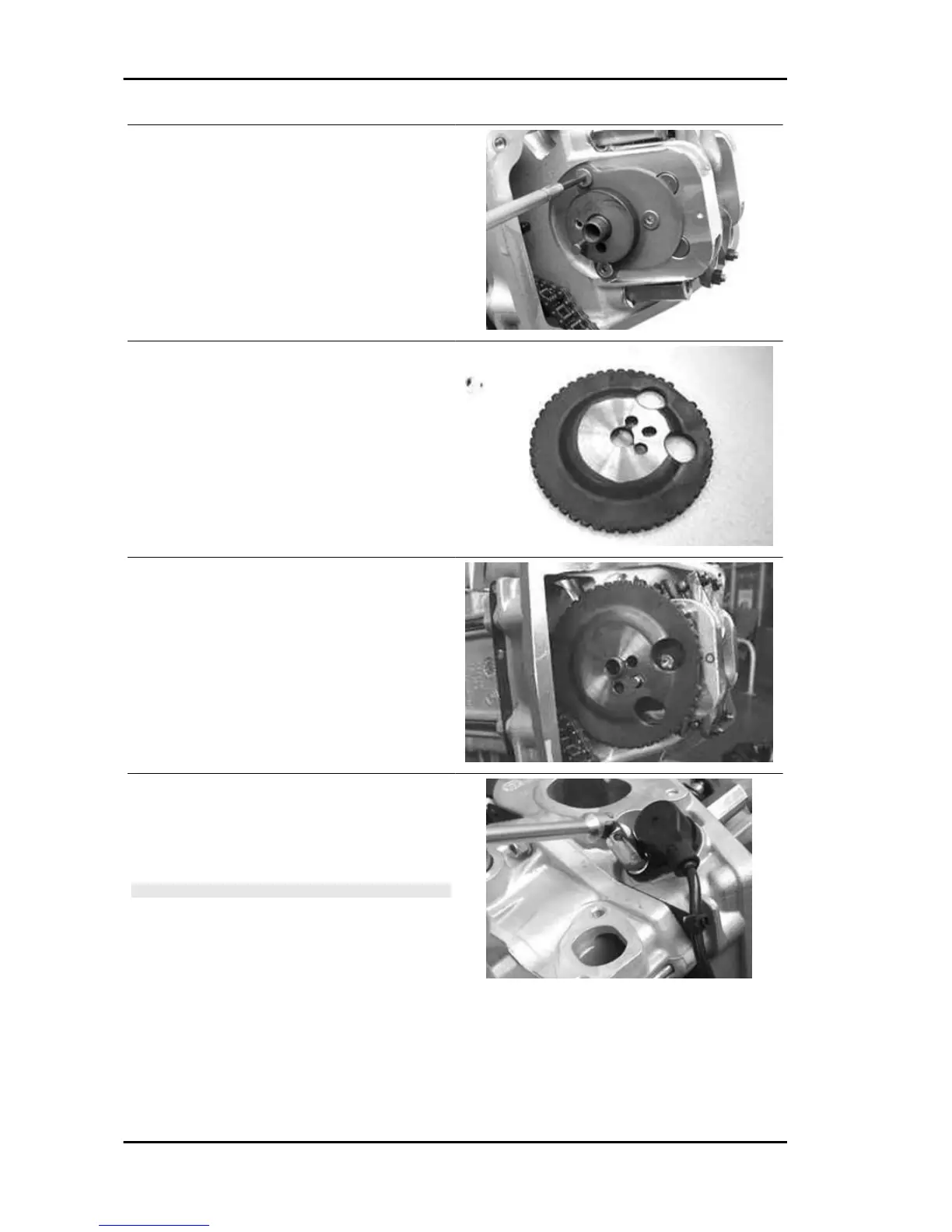

- Insert the camshaft retain bracket with visible
countersinks and tighten the 3 fastening screws to
the prescribed torque, being careful not to damage
the inside hexagon.
Locking torques (N*m)
Camshaft retaining bracket screws: 4 ÷ 6
- Check that the toothing and the housing of the
tone wheel timing peg are free from deformations
or dents.
- Insert the wheel speed sensor on the camshaft
keeping the stroke reference visible.
- Install the engine revolution timing sensor using
a new O-Ring, orientating it as shown in the figure.
Tighten the 2 fastening screws to the prescribed
torque.
N.B.
TO CHECK THIS COMPONENT, SEE CHAPTER "INJEC-
TION".
Locking torques (N*m)
Rpm timing sensor fixing screw 3 - 4
