- Install the handlebars on the steering tube, pay-
ing attention to the centring, aligning the recess on
the handlebar with that on the steering tube as
shown in the figure.
- Tighten the handlebar fixing screw on the steering tube to the prescribed torque.
- Install the front and rear handlebar covers as described in the section "Scooter body".
- Install the front mudguard
- Install the front wheel.
- Install the front brake callipers.
- Tighten the retaining screws of the brake calliper to the support.
Specific tooling
020055Y Wrench for steering tube ring nut
Locking torques (N*m)
Fixing screw handlebar to steering tube 45 ÷ 50 Holding torque of lower ring nut 20 ÷ 25 Upper
steering ring nut 36 - 39 Steering lower ring nut 10 - 13 ** Front brake calliper mounting on
fork 20 ÷ 25 Front brake disc mounting 11 ÷ 13 Plastic protection retaining screw 5 - 6
Refitting stems on fork legs

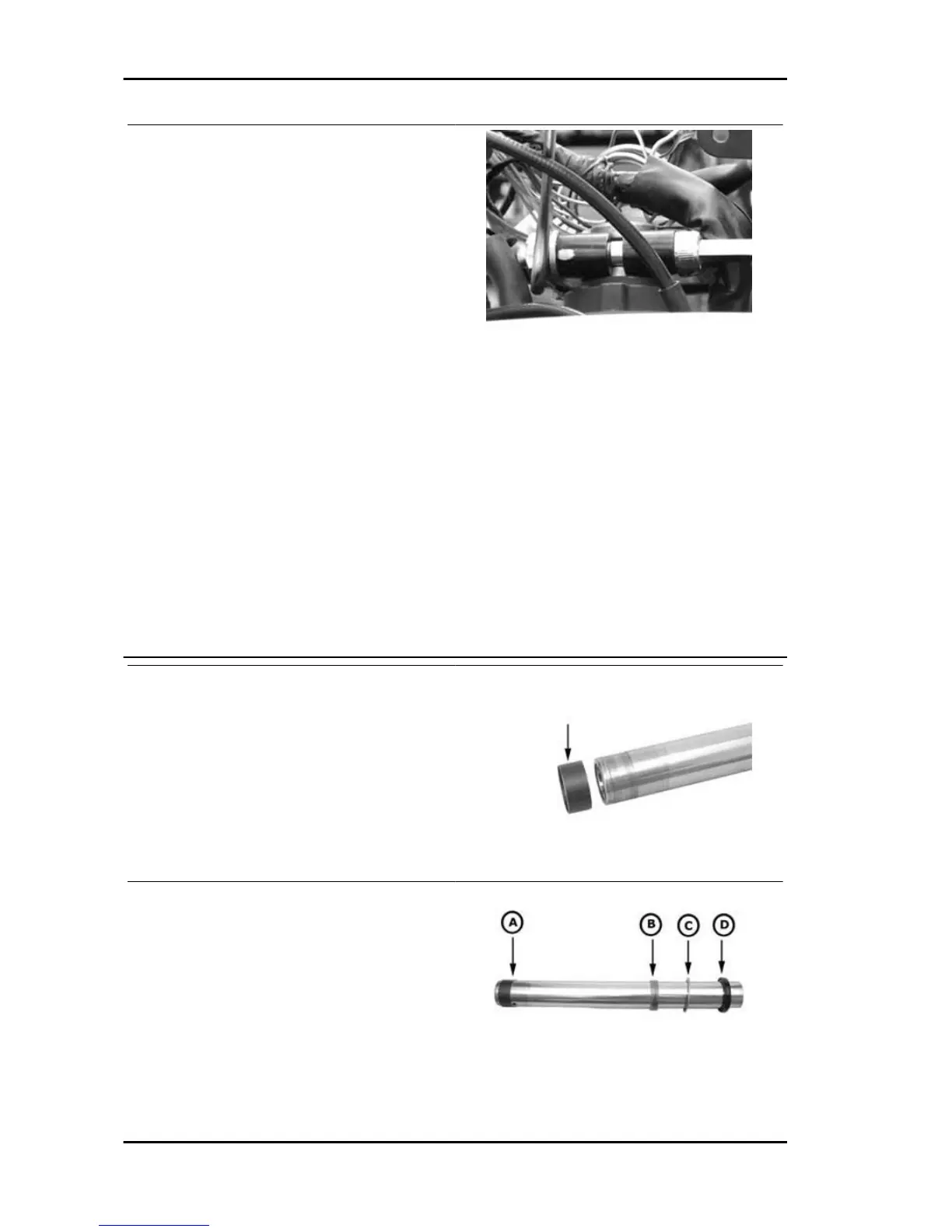

Preassemble the stem as indicated:
- Install the bushing from the bottom of the stem
- Insert the following from the top of the stem:
1 Bushing "B"
2 Abutment washer "C"
3 Oil guard "D"
