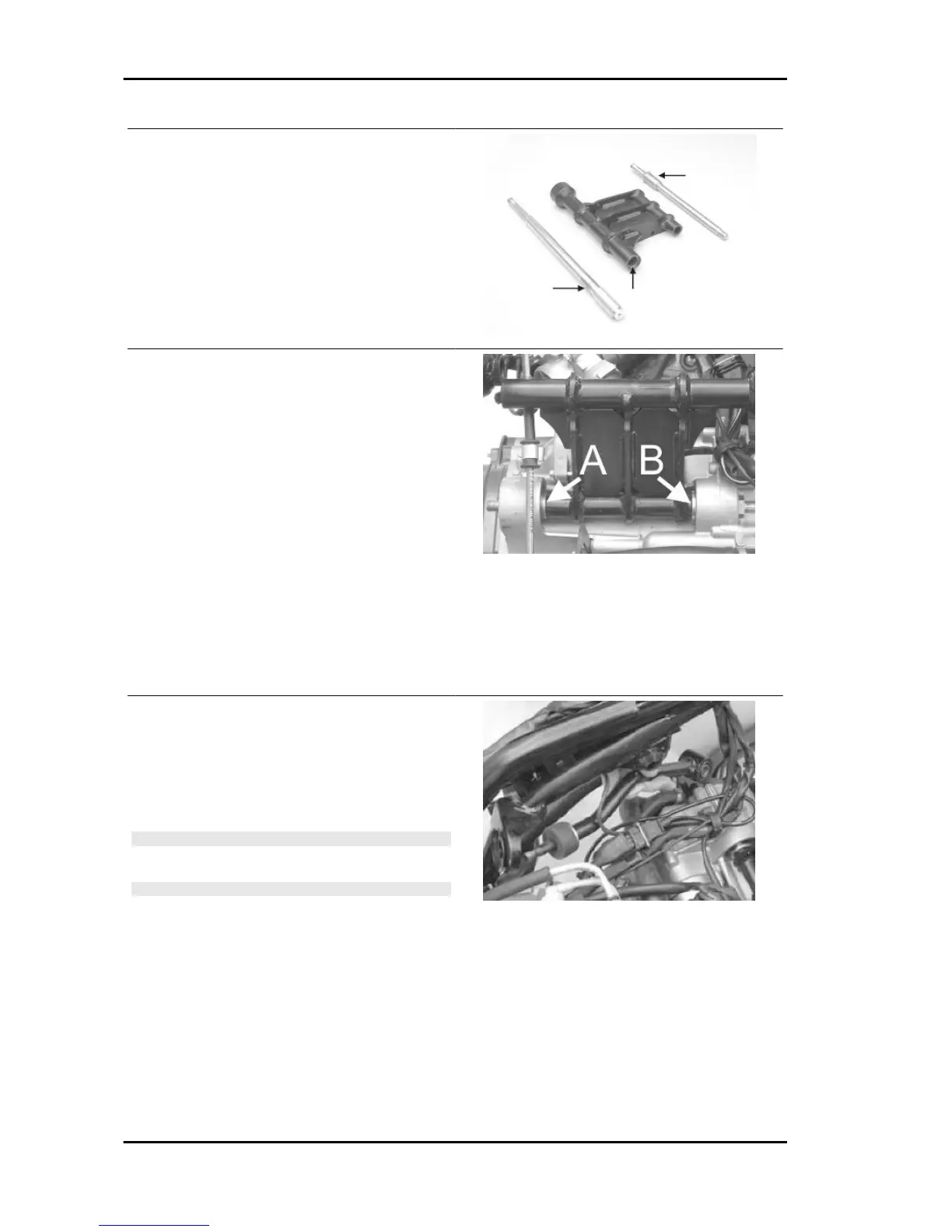

Lubricate the inside tracks of the bear-
ings on the crankcase.
•
Lubricate the roller bearing into the
swinging arm.
•
Lubricate the bearing connection on
the swinging arm/engine pin.
Lubricate the roller bearing connection on the
swinging arm/chassis pin.
•
Insert the spacer bushing in the left
bearing "A".
•
Assemble the engine connecting pin
with the washer "B" and the swinging
arm.
•
Install the washer and the flanged nut
and move them close without tighten-
ing.
•
Check that the tie rod silent block is
free from wear; if not, replace the com-
plete tie rod.
•
Check that the 2 tie rod spring pads are
in good working order.
•
Assemble the tie rod with the washer
and a pad.
•
Install the tie rod inserting it on the
swinging arm/engine pin and into the
bracket welded to the chassis.
N.B.
FOR THIS OPERATION, MOVE THE ENGINE ON THE VE-
HICLE LONGITUDINAL AXIS.
N.B.
IF YOU REMOVE THE ELECTRIC SYSTEM SUPPORT
BRACKET, REINSTALL IT BEFORE INSERTING THE TIE
ROD.
Suspensions Beverly 500 i.e.
SUSP - 280
