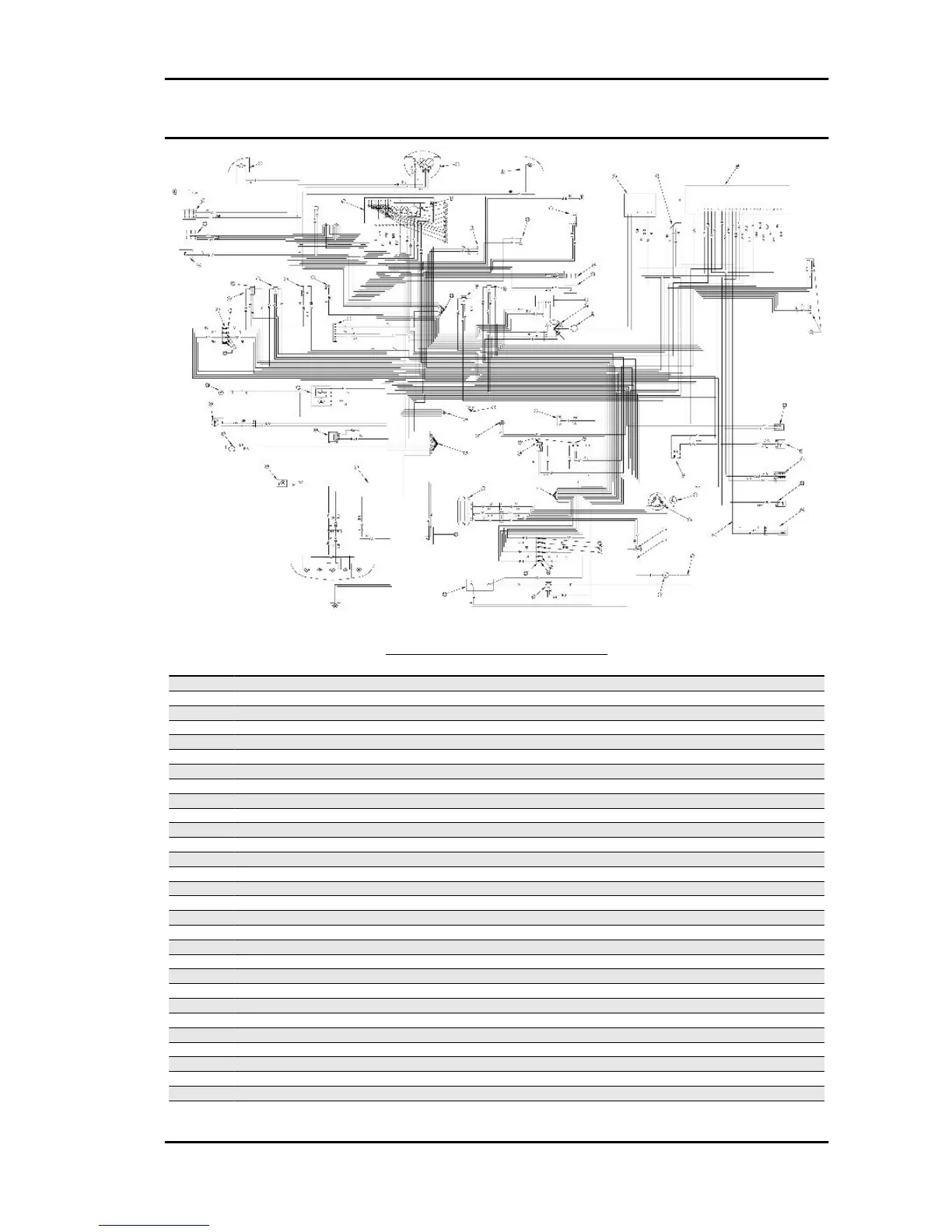

ELECTRICAL COMPONENTS
Specification
Desc./Quantity
1 Front LHS turn signal light
2 Light switch
3 Turn indicator switch
4 Horn button
5 Four 30A relays
6 Main remote control switch
7 Light remote control switch
8 Diode unit
9 Saddle opening button
10 Front fuse box
11 Fuse 15A
12 No. 3 7.5A fuses
13 Anti-theft alarm fitting
14 Electric fan
15 Fuel level sender with pump
16 Side stand switch
17 Saddle opener actuator
18 HV coil
19 Lamp
20 Chassis wire unit
21 Headlight
22 Instrument panel
23 Diagnostic and deterring LED
24 Low fuel warning light
25 Engine oil pressure warning light
26 Water thermometer
27 Fuel gauge
28 Engine warning indicator
29 High-beam warning light
30 Rhs turn signal warning light
Beverly 500 i.e. Electrical system
ELE SYS - 33
