11 Expansions and Accessories
11.1 Expansion Cards
11.1.1 Guide to installation of expansion cards

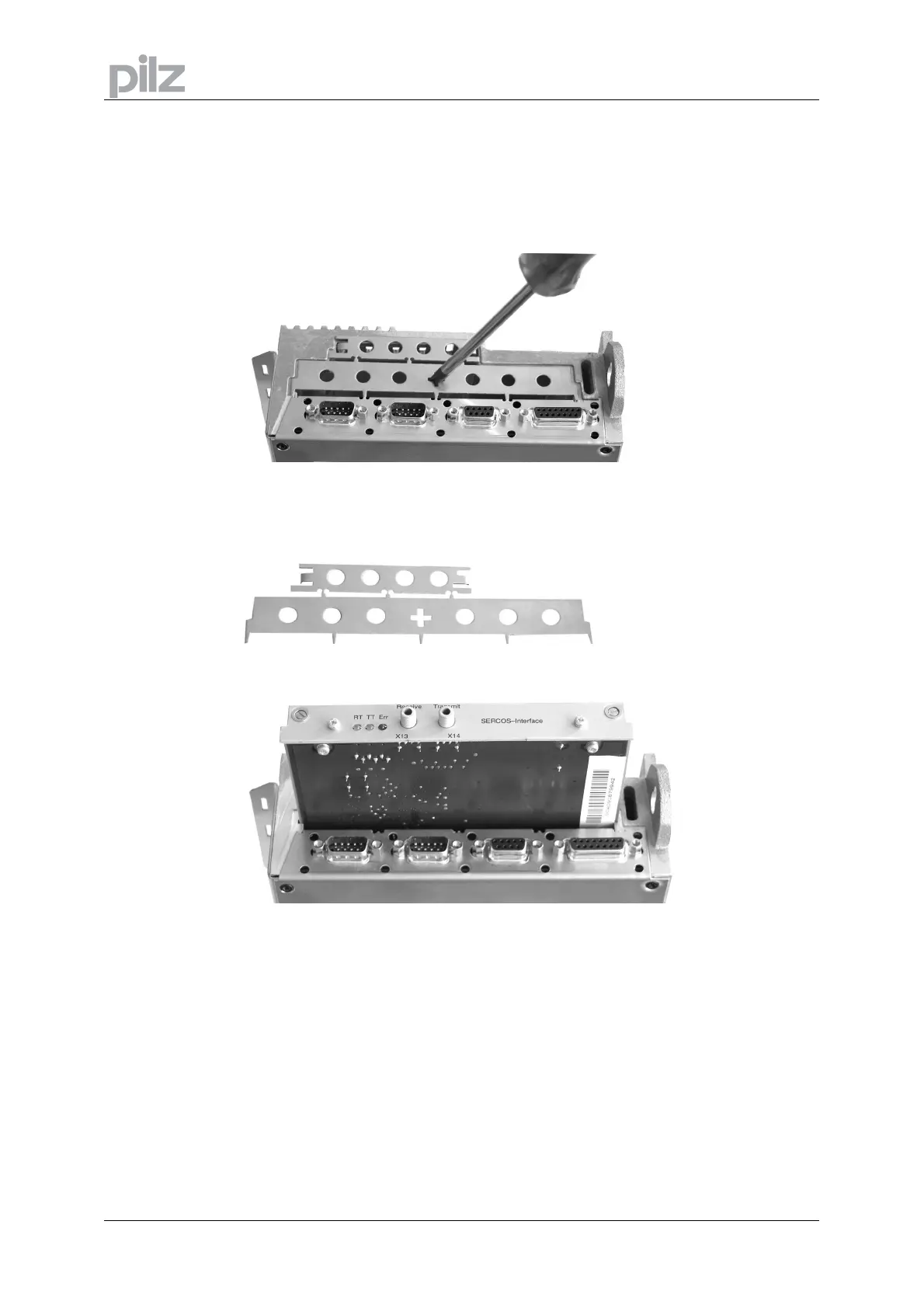

• Use a suitable screwdriver to lever off the cover of the option slot.
• Take care that no small items (such as screws) fall into the open option slot.
• Lever off the small metall sheet and push it back to the small slot. Dispose the big metall
sheet.
• Push the expansion card carefully into the provided guide rails of the main slot, without
twisting it.
• Press the expansion card firmly into the slot, until the front cover touches the fixing lugs.
This ensures that the connectors make good contact.
• Screw the screws on the front cover into the threads in the fixing lugs.
