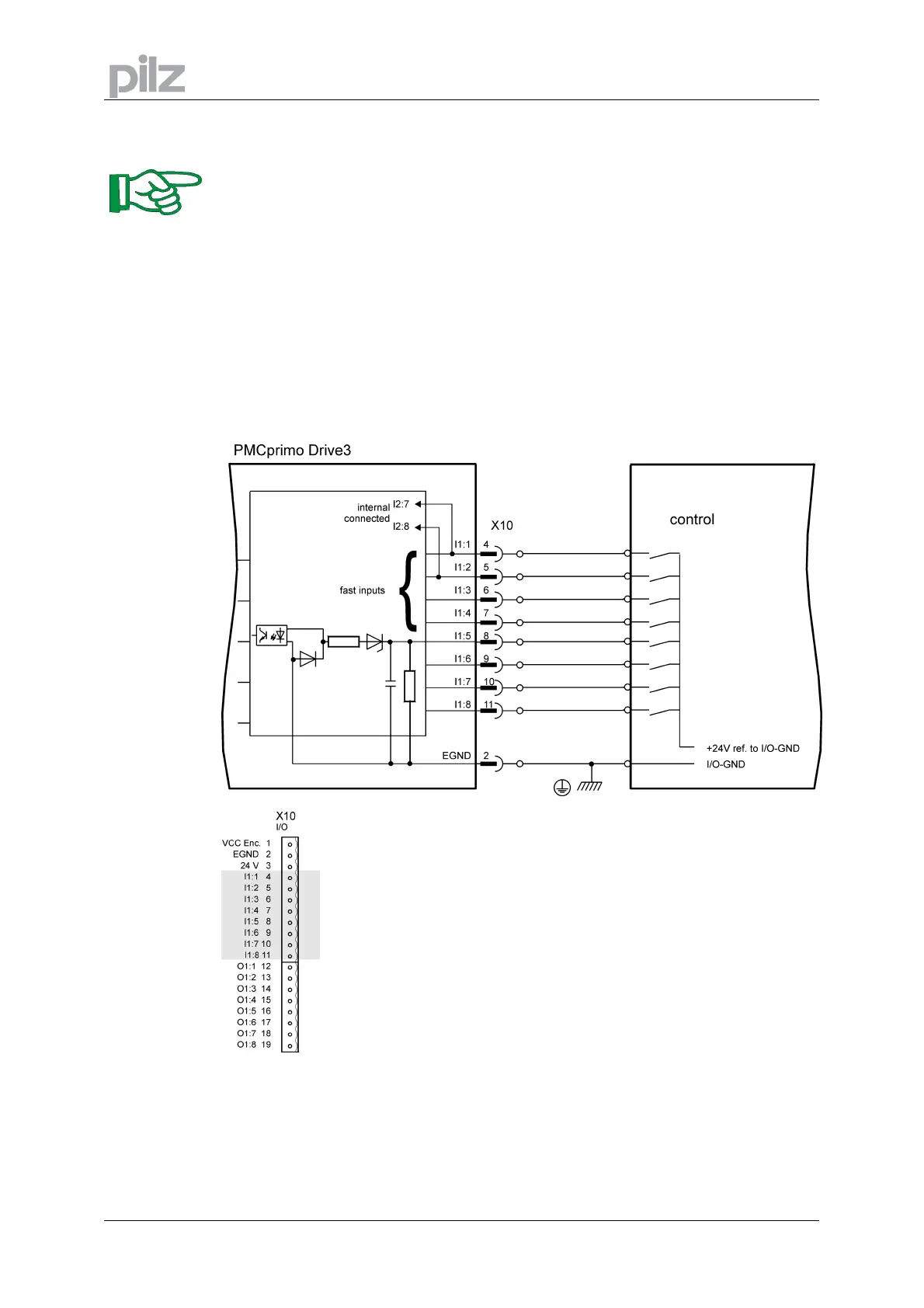

9.7.3 Digital Inputs I1:1 - I1:8 (X10)
These inputs are available only at a PMCprimo Drive3!
All digital inputs are electrically isolated through optocouplers.
9.7.3.1 Technical characteristics
• Reference ground is EGND (terminal X10, Pin 2)
• Logic is PLC compatible
• HIGH level: +11..24V / 10 mA – LOW level: 0 V .. 11 V/ 0 mA
• The inputs I1:1 to I1:4 are „fast“ inputs (< 1 us) for e.g. product referencing
• I1:1 and I1:2 will be additionally mapped to both inputs E2:7 and E2:8 (see PMCprimo
programming manual).
9.7.3.2 Fast inputs I1:1 to I1:4
These four fast inputs can be used for special functions like referencing and initialisation.
Addidional information can be found in the PMCprimo programming manual.
