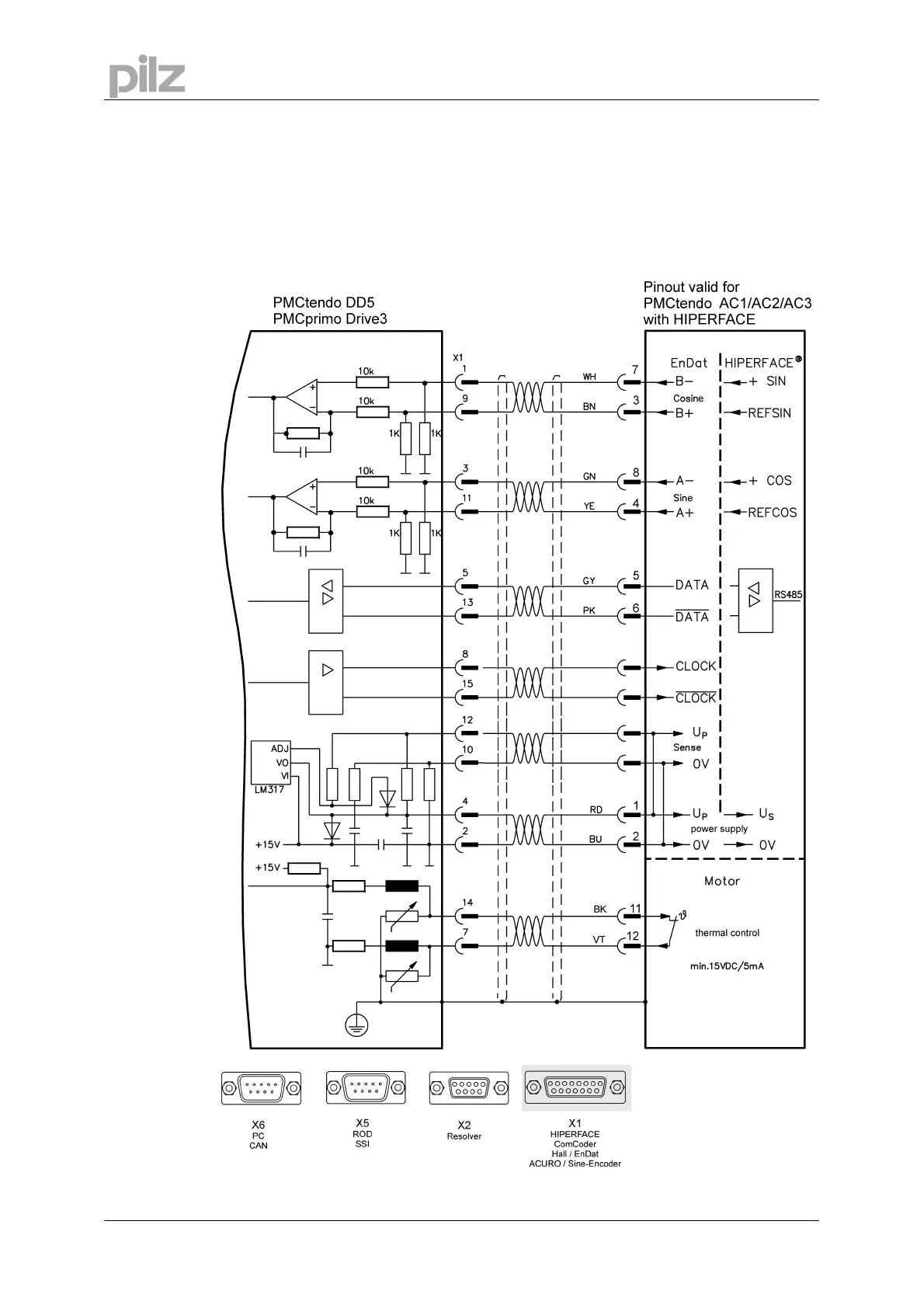

9.6.4 Sine Encoder with EnDat or HIPERFACE (X1)
As an option, our servomotors can be fitted with a single-turn or multi-turn sine-cosine encoder.
Preferred types are the ECN1313 and EQN1325 encoders.
The encoder is used by the as a feedback device for drive tasks that require highly precise
positioning or extremely smooth running.
The thermostat contact in the motor is connected via the encoder cable to X1 and
evaluated there.
If cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit (A,B): 350 kHz
