Page 44 Installation manual for PMCtendo DD5/PMCprimo Drive3

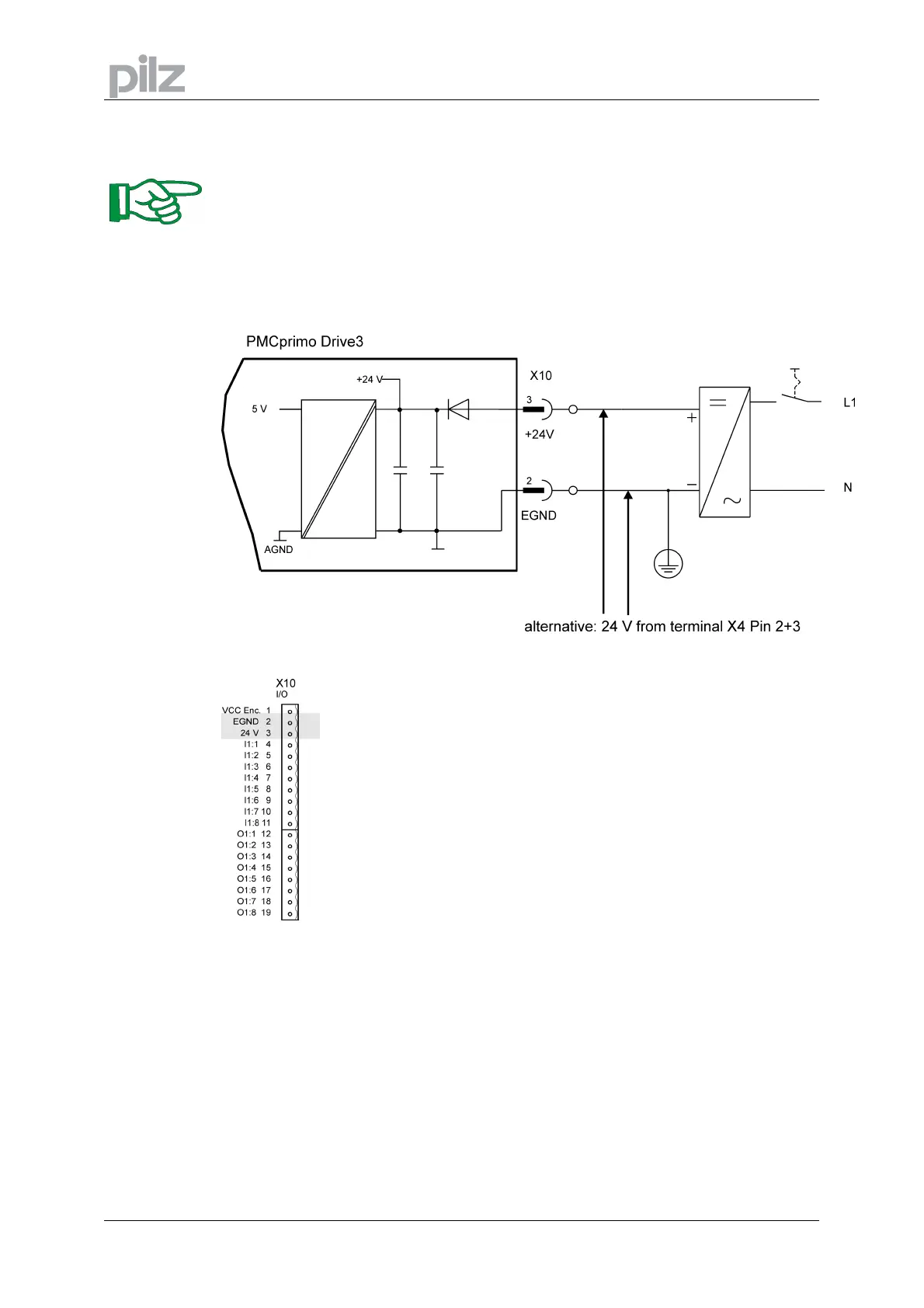

9.3.3 24V supply (X10)

These connectors are available only at a PMCprimo Drive3!

• Electrically isolated, external 24V DC supply, e.g. with insulating transformer

• 24 V can be taken from terminal X4, otherwise external fusing necessary

• Required current rating ⇒ p. 19

• See important notes to commissioning ⇒ p. 91
