9 Interfaces
Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 49
9.6 Feedback
Feedback system Conn. See Remark
Resolver X2 p. 49 2- to 36 polig
ComCoder X1 p. 50 A, B, Zero, Hall
Incremental or sine encoder with Hall X1 p. 51 A, B, Zero, Hall/ Sine, Cosine, Zero, Hall
Sine Encoder with EnDat/HIPERFACE X1 p. 52 Sine, Cosine, Clock, Data
ACURO Encoder X1 p. 53 Data (BISS)
Sine encoder without data channel X1 p. 55 Sine, Cosine, Zero
Incremental encoder (A quad B) X5 p. 54 A, B, Zero

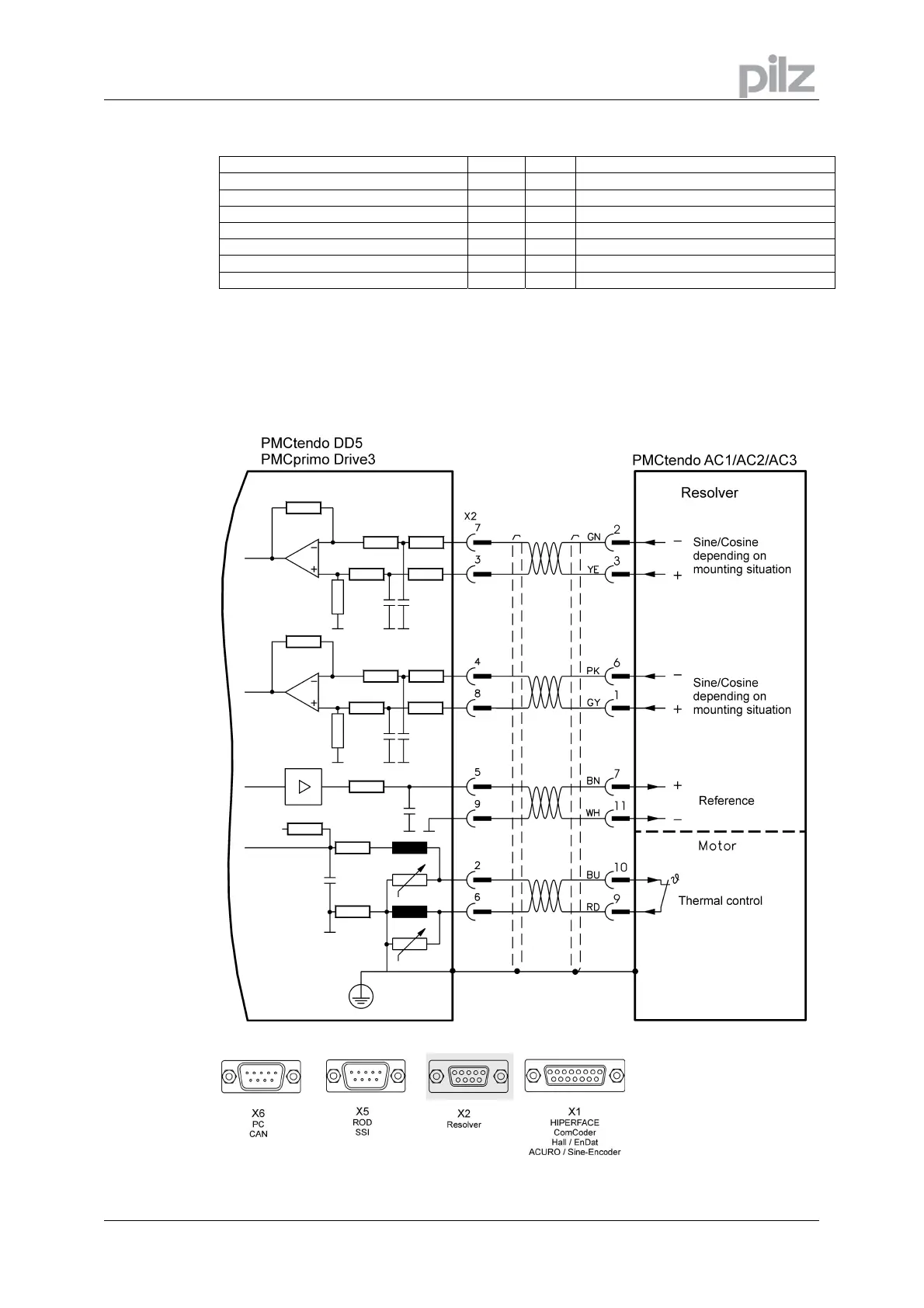

9.6.1 Resolver (X2)
Our rotatory servomotors PMCtendo AC1/AC2/AC3 are fitted as standard with 2-pole hollow-
shaft resolvers. It is possible to connect resolvers with 2 to 36 poles to the PMCtendoDD5 and
PMCprimo Drive3. The thermostat contact in the motor is connected via the resolver cable to
X2 and evaluated there.
If cable lengths of more than 100 meters are planned, please contact our customer support.
