9 Interfaces

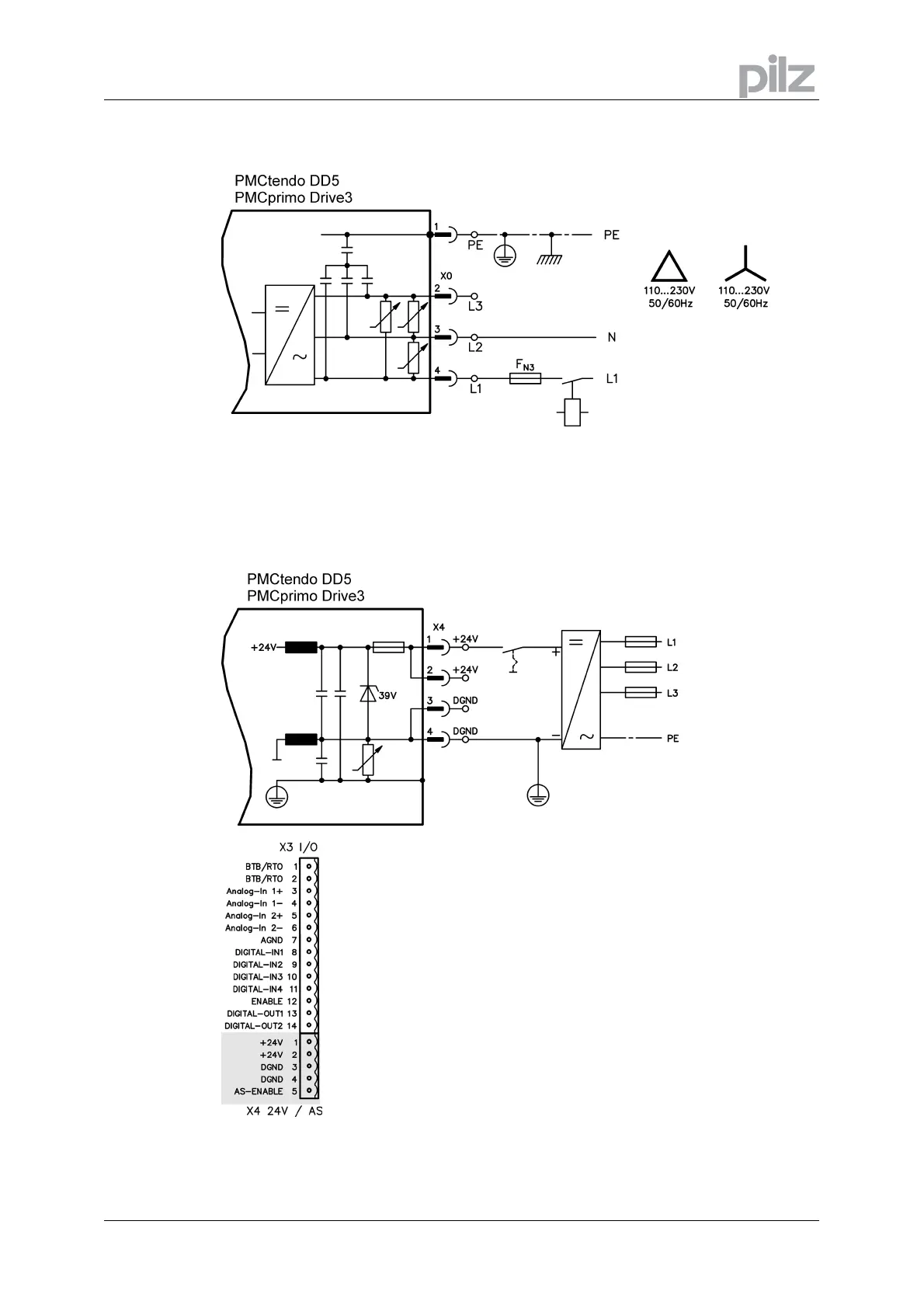

Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 43

9.3.1.3 Singel phase with neutral

9.3.2 24V auxiliary supply (X4)

• External 24V DC power supply, electrically isolated, e.g. via an isolating transformer

• Required current rating  p. 19

• Integrated EMC filter for the 24V auxiliary supply
