9 Interfaces
Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 73

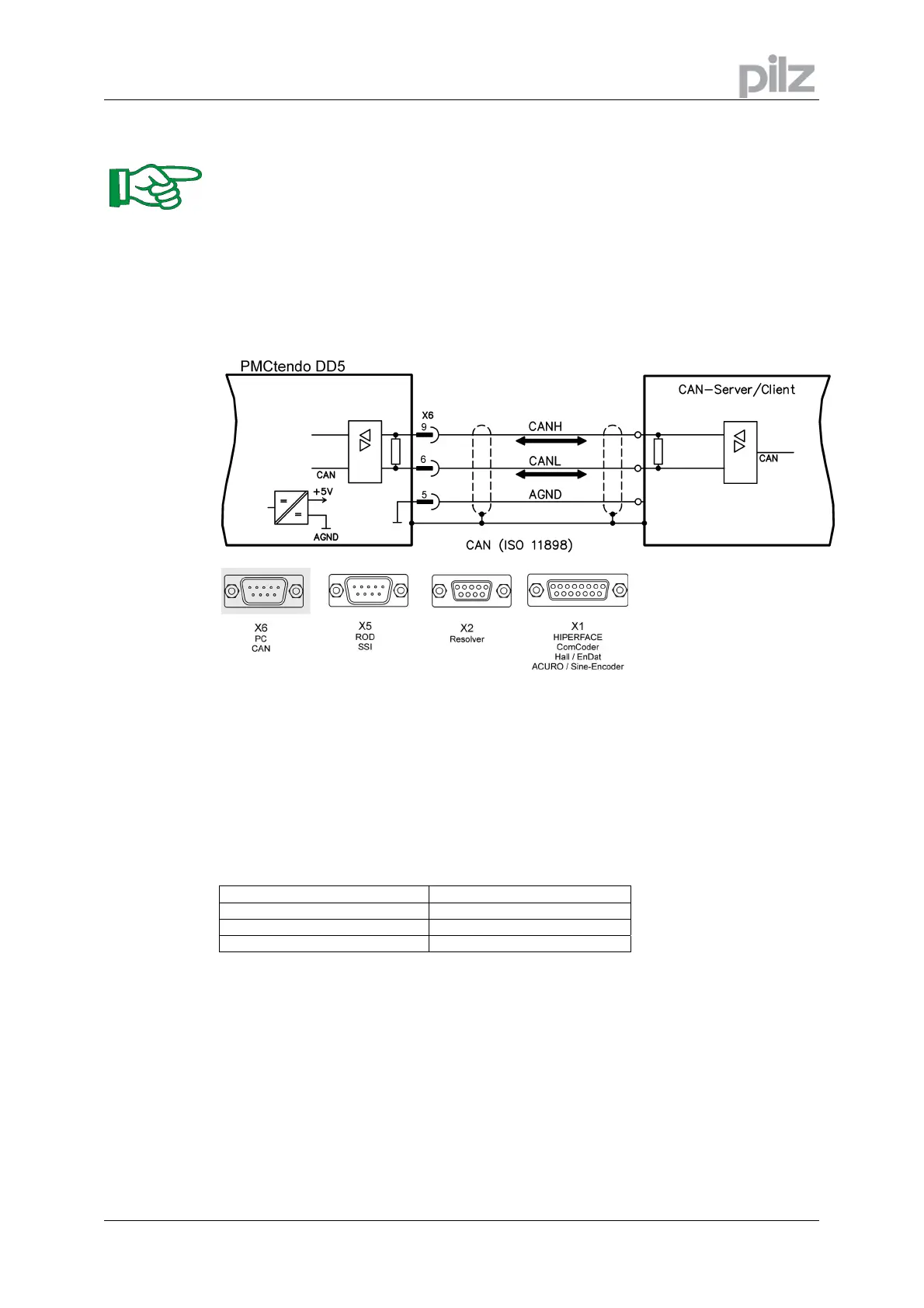

9.12 CANopen Interface (X6)
These interface can be used only at a PMCtendo DD5!
The interface for connection to the CAN-bus (default : 500 kBaud). The integrated profile is
based on the CANopen DS301 communication profile and the DS402 drive profile.
The following functions are available in connection with the position controller:
Jogging with variable speed, homing run (zeroing to reference), start motion task, start direct
task, digital setpoint provision, data transmission functions and many others.
Detailed information can be found in the CANopen manual. The interface is at the same
electrical potential as the RS232 interface. The analog setpoint inputs can still be used.
With the optional –CAN adapter expansion card, the two interfaces for RS232 and CAN, which
otherwise use the same connector X6, are separated out onto three connectors (with
termination, p. 107).
9.12.1 CAN-bus cable
To meet ISO 11898, a bus cable with a characteristic impedance of 120 Ω should be used. The
maximum usable cable length for reliable communication decreases with increasing
transmission speed. As a guide, you can use the following values which we have measured, but
they are not to be taken as assured limits:
Cable data: Characteristic impedance 100-120 Ω
Cable capacitance max. 60 nF/km
Lead loop resistance 159,8 Ω/km
Cable length, depending on the transmission rate
Transmission rate / kBaud max. cable length / m
1000 10
500 70
250 115
Lower cable capacitance (max. 30 nF/km) and lower lead resistance
(loop resistance, 115 Ω/km) make it possible to achieve greater distances.
(Characteristic impedance 150 ± 5Ω terminating resistor 150 ± 5Ω).
