9.17.3 Example using Profibus DP
After setting the slave address (command CD 11; <address>) the PMCprimo Drive3 has to be
restarted. The following message appears when the module is recognized:
S T A R T
Ser.Nr.:3094, Version 2.007 Sep 1 2004, 10:37:49
Operate Mode: STANDALONE
Profibus-DP-IC found
Channel 0.1 found
Channel 0.2 found
Channel 0.3 found
Channel 0.4 found
Channel 0.5 found
Channel 0.6 found
Channel 0.7 found
Channel 0.8 found
Channel 0.9 found
Channel 0.10 found
In this example the bus variables $B1 up to $B16 are read and written (16 Words = 32 Bytes at
all).

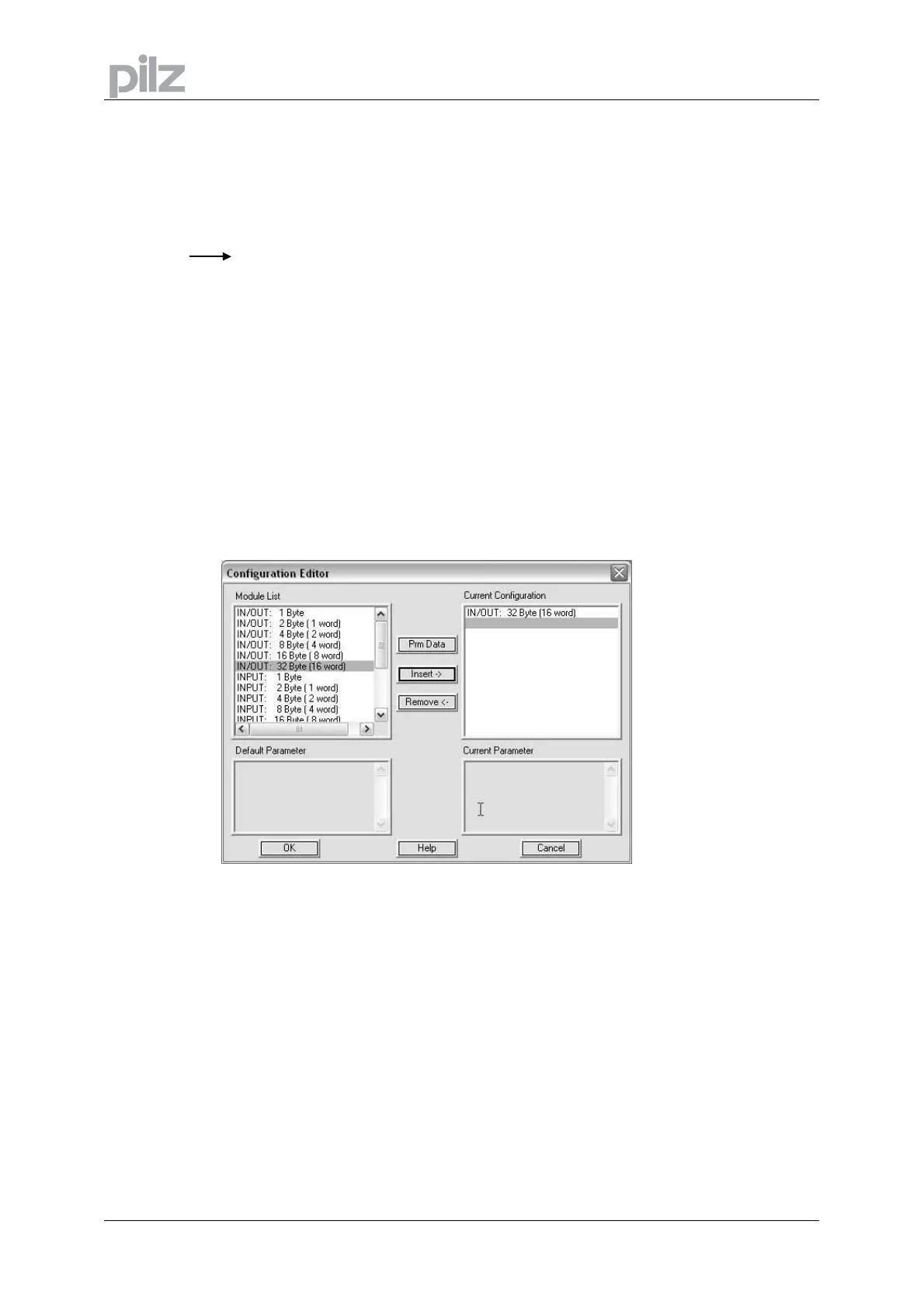

Subsequent, the Profibus-DP-Master has to be configured to IN/OUT: 32 Byte (16 word). The
GSD file is named: HSM_1810.gsd
Example: Profibus-Master Simulator from Fa. Bihl und Wiedemann:
After starting the Profibus communication the bus variables can be set or read.
More information can be found in the PMCprimo programming manual.
