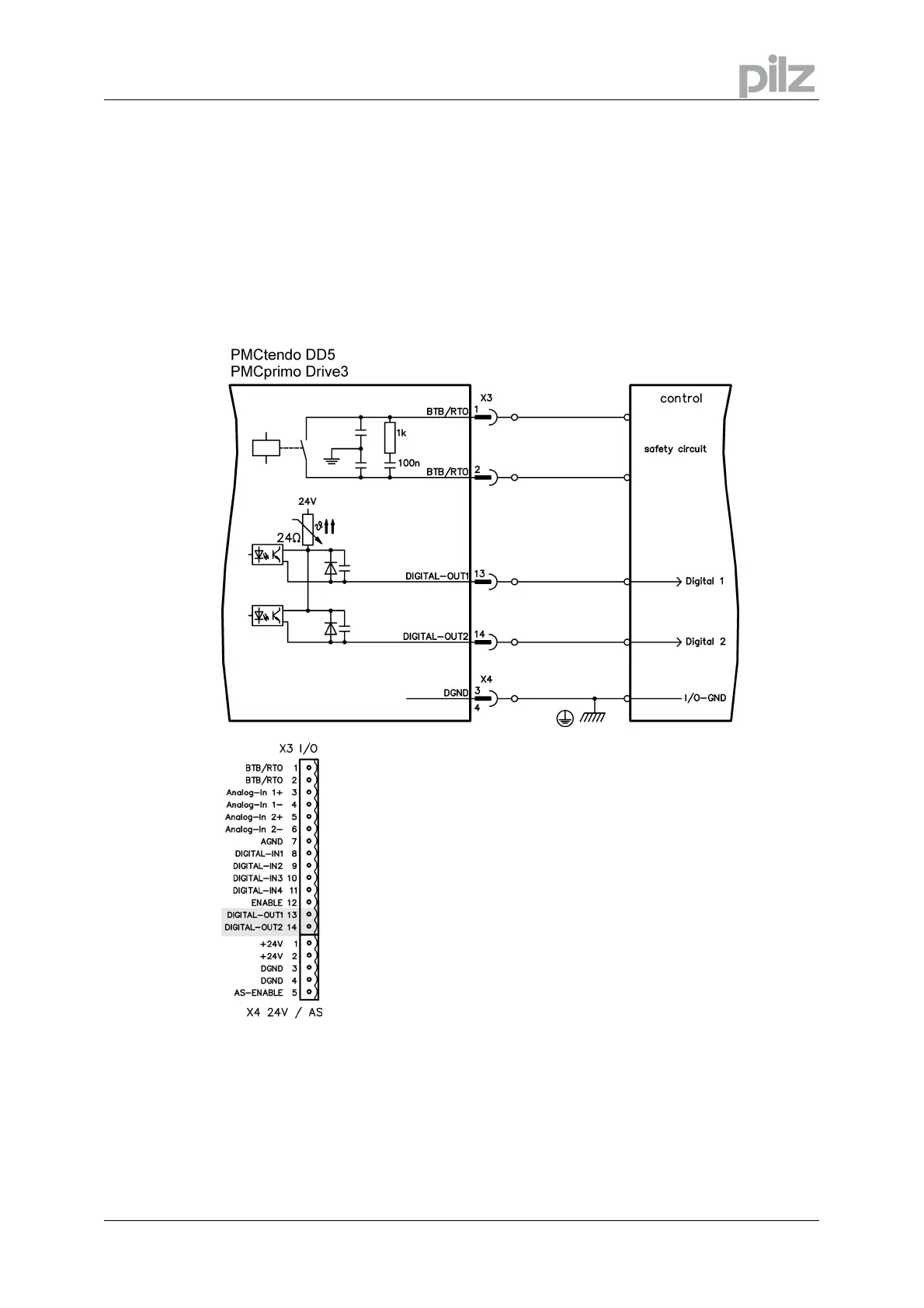

9.7.4 Digital outputs (X3)
All digital outputs are electrically isolated through optocouplers.
9.7.4.1 Technical characteristics
• Ground reference is Digital-GND (DGND, terminals X4/3 and X4/4)
• DIGITAL-OUT1 and 2 : Open Emitter, max. 30V DC, 10mA
• BTB/RTO : Relay output, max. 30V DC or 42V AC, 0.5A
• Update rate : 250 µs
