9.7.5 Digital outputs (X10)
These outputs are available only at a PMCprimo Drive3!
All digital outputs are electrically isolated through optocouplers.
9.7.5.1 Technical characteristics
• Reference ground is EGND (terminal X10, pin 2)
• All digital outputs are overload- and shortcircuit protected
• „High side“ outputs: 24V /0,1 A each output

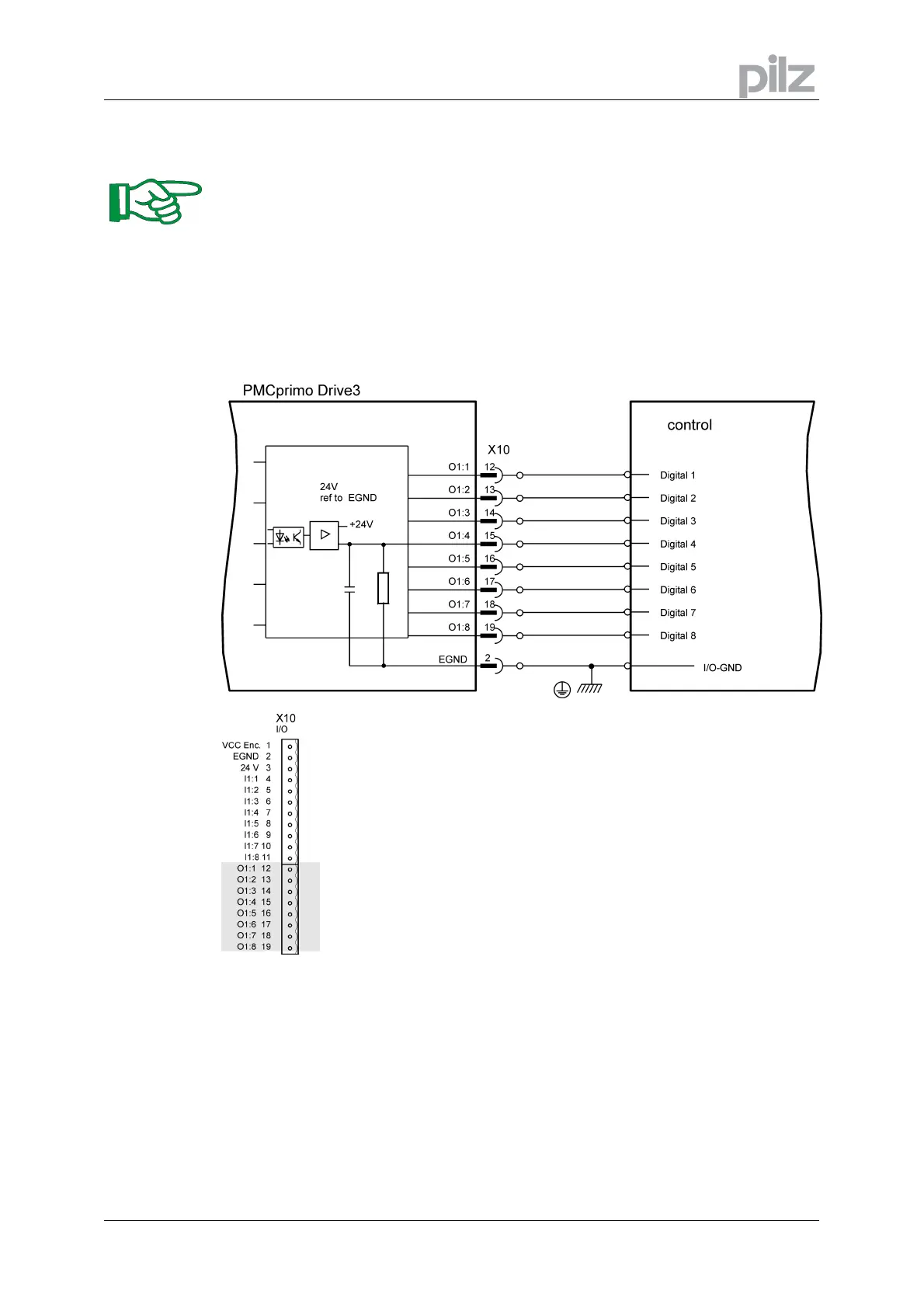

9.7.5.2 Application example
The digital outputs can be used for CAM functions or timer outputs. More information can be
found in the PMCprimo programming manual.
