9 Interfaces
Page 80 Installation manual for PMCtendo DD5/PMCprimo Drive3
9.16 Panel interface - Modbus (X11/3)
These interface is available only at a PMCprimo Drive3!
9.16.1 General
At the PMCprimo Drive3 MODBUS panels can be connected, e.g. our PMI 315.
A special adapter cable is required which can be orderd from us.
In Standalone mode (see PMCprimo programming manual) at every control one panel can be
connected.
In networked systems (CAN) the panel has to be connected to the host system. Only the host’s
MODBUS interface is active in this mode.
9.16.2 Interface

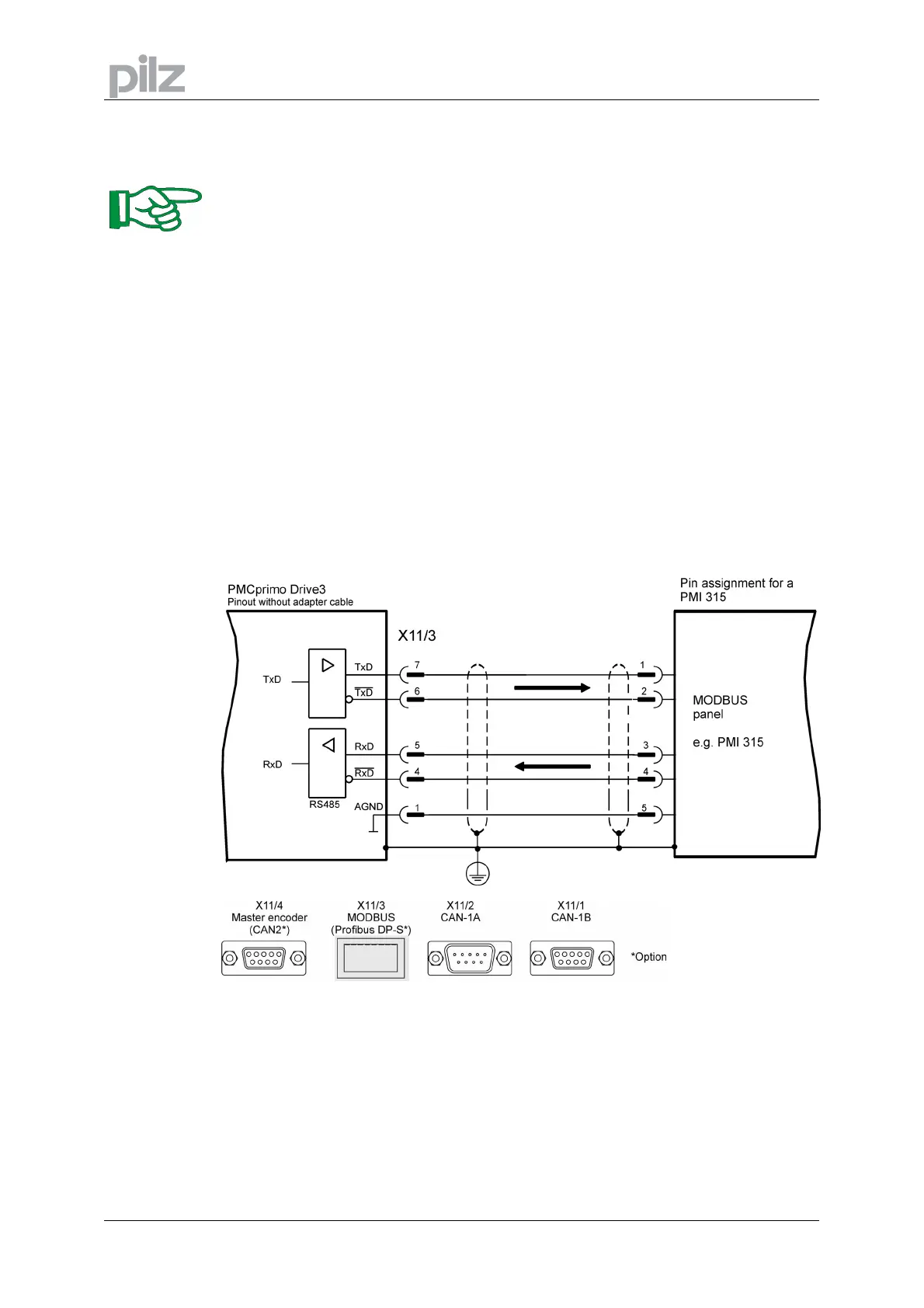

The communication uses a 5-core cable (RS422 full duplex). The communication parameters
are:
• 9600 Baud, 8N1, no handshake
With the command BM the baud rate can be changed (s. PMCprimo programming manual)
