9 Interfaces

Page 50 Installation manual for PMCtendo DD5/PMCprimo Drive3

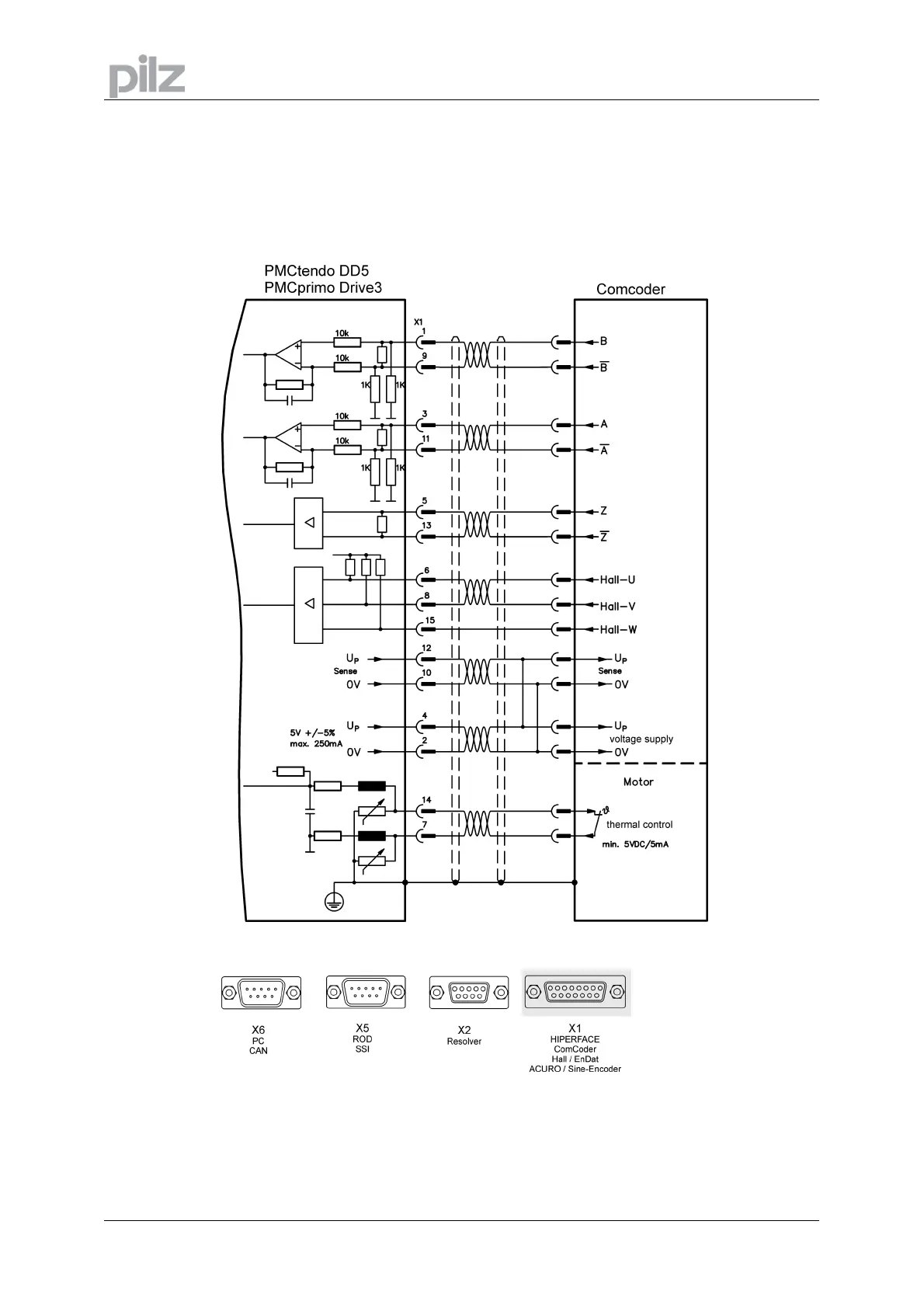

9.6.2 ComCoder (X1)

As an option our motors can be equipped with a ComCoder as feedback unit. For the

commutation hall sensors are used and for the resolution an incremental encoder.

The thermostat contact in the motor is connected via the ComCoder cable to X1 and

evaluated there.

If cable lengths of more than 25m are planned, please consult our customer service.

Frequency limit (A,B): 350 kHz
