9 Interfaces

Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 51

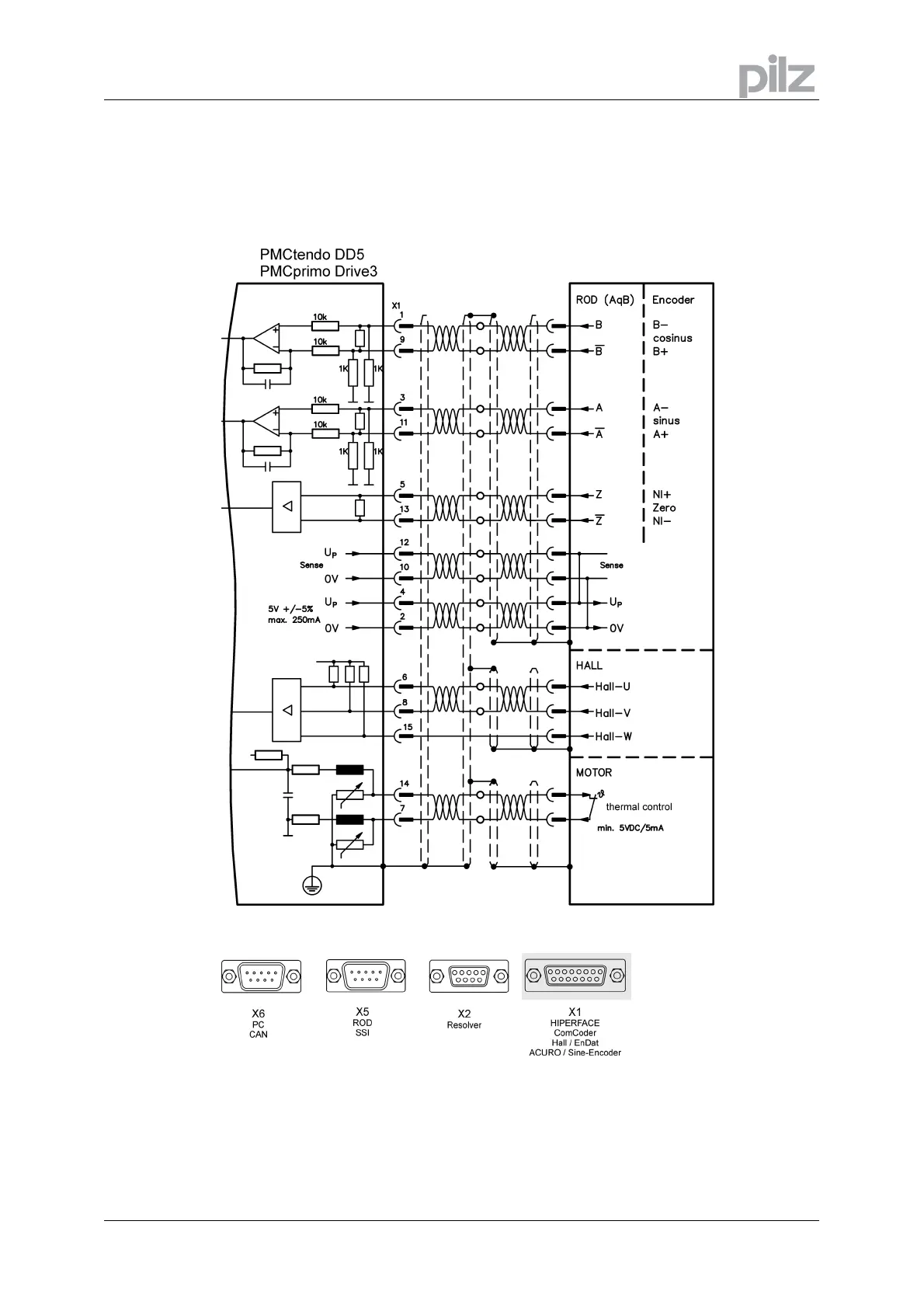

9.6.3 Incremental or Sine Encoder with hall sensors (X1)

Feedback devices (incremental or sine-cosine), which don't deliver an absolute information for

commutation, can be used as complete feedback system combined with an additional Hall

encoder. All signals are connected to X1.

If cable lengths of more than 25m are planned, please consult our customer service.

Frequency limit (A,B): 350 kHz
