Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 79

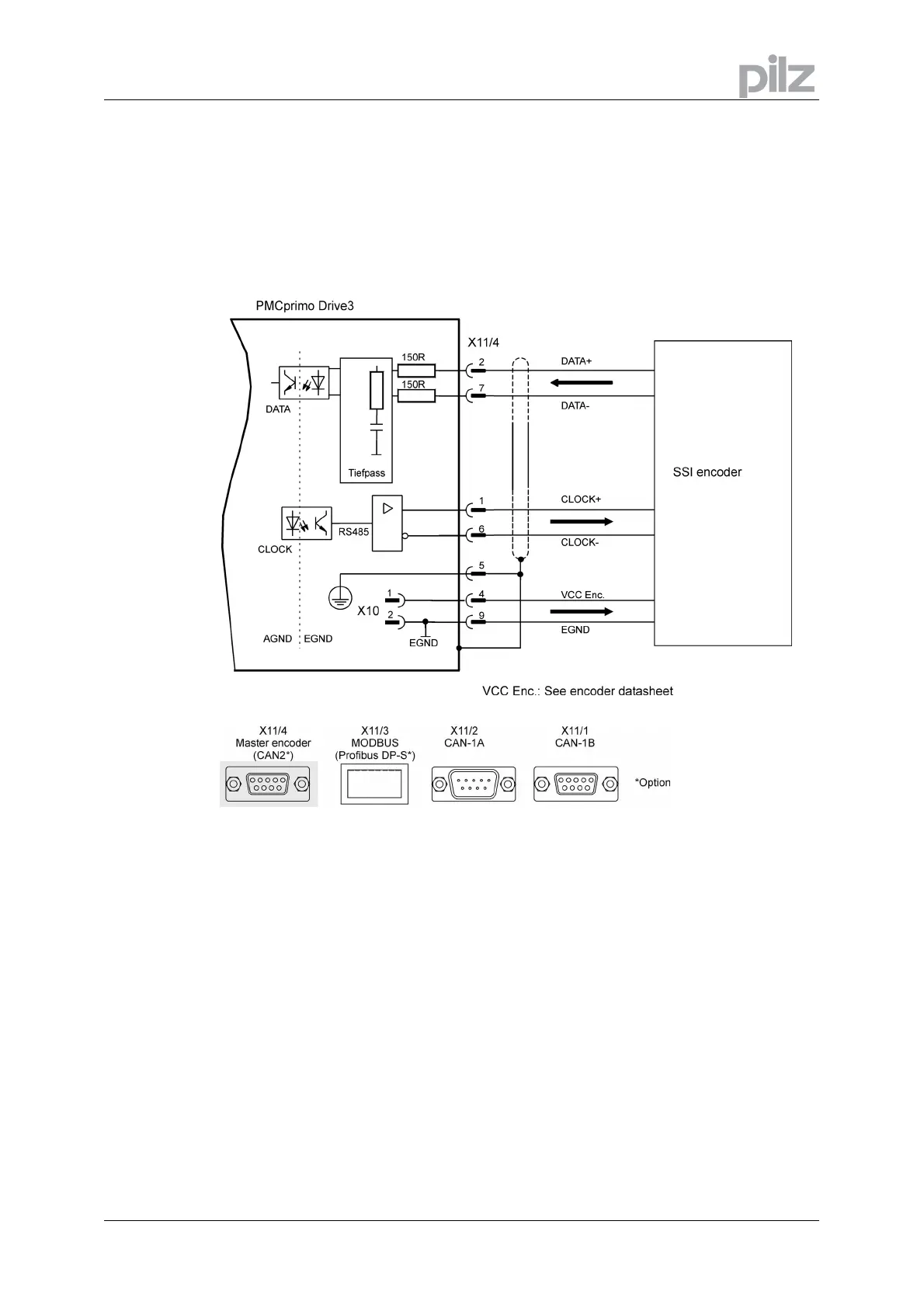

9.15.2 Absolute encoder (SSI)

• Reference ground is EGND (terminal X10 Pin 2)

• Number of bits: 13..32

• Format: Binary or Gray

• Clock frequency SSI-Clock: 100 kHz or 300 kHz (set with command FS)

• Maximum voltage range (tracks) ref. to EGND: 5 V DC
